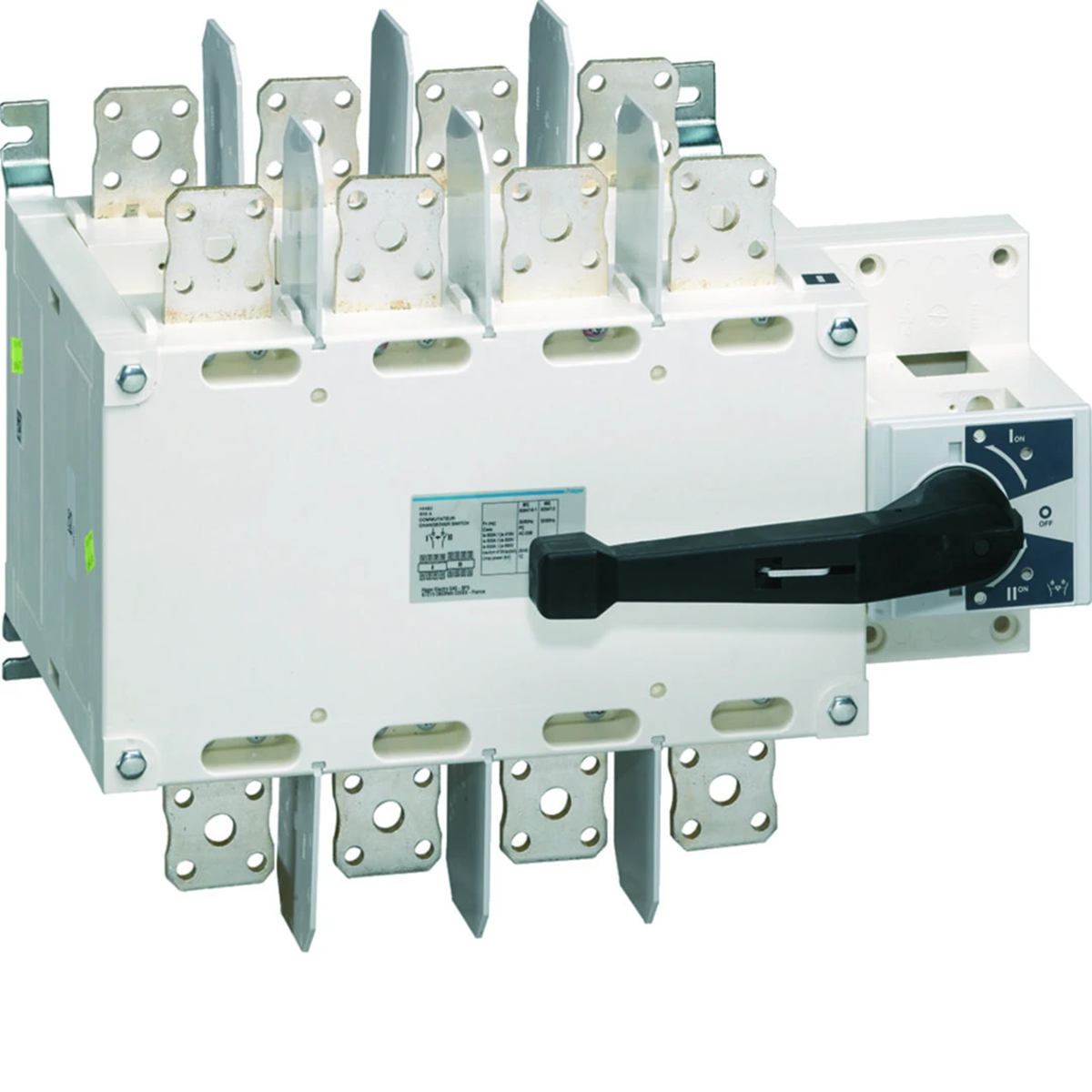

Power switch I-0-II 4P 800A HI460
Index local:
ALM084HAGE
Numéro de catalogue:
HI460
Code EAN:
3250613190187
Prix:
3422,12 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Description du produit
Données techniques
Détails du fabricant
Emballage en vrac
Fichiers à télécharger
Description du produit
Power switch is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice.
- safe switching of power supply to live circuits (guaranteed mutual separation of power supply networks),
- to be mounted on a mounting plate,
- direct rotary drive,
- 3 operating positions: I - 0 - II,
- 800A.
Données techniques
-
Rated frequency [Hz]60
-
Number of poles4
-
Rated insulation voltage [V]1000
-
Level of securityIP00
-
Power loss per pole [W]41.7
-
Connection typeVice
-
Mechanical durability (number of cycles)4000
-
Rated switching voltage [V]380/400/500/690
-
Rated surge voltage [V]12000
-
Conductor cross-section (wire) [mm²]2 x 185 - 2 x 300
-
Depth [mm]375
-
DC operating voltage [V]260/400/500
-
Rated current [A]800
-
power loss [W]119.1
-
Width [mm]466
-
Height [mm]321
-
Operating temperature range [°C]from -20 to 70
-
storage temperature [°C]from -40 to 65
-
Rated operational current [A]800
-
PKWIU27.12.22.0
Autres données techniques
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchYes
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu800 A
-
Rated short-time withstand current lcw64 kA
-
Switching power at 400 V526 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementLong turning handle
-
Type of electrical connection of main circuitCable clamp
-
Degree of protection (NEMA)Other
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage380 ... 690 V
-
Rated permanent current at AC-23, 400 V800 A
-
Rated operation power at AC-23, 400 V360 kW
-
Conditioned rated short-circuit current Iq50 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP00
Détails du fabricant
-
ProducteurHager Electro S.A.S.
-
AdresseFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Emballage en vrac
| Une sorte de paquet | Karton | Paleta |
| Quantité | 1 pcs. | 2 pcs. |
| poids (kg) | 36,600 | 73,200 |
| Largeur (m) | 0,600 | 0,800 |
| Longueur (m) | 0,520 | 0,670 |
| Profondeur (m) | 0,800 | 1,200 |
