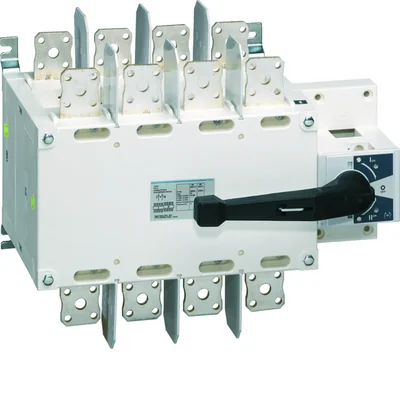

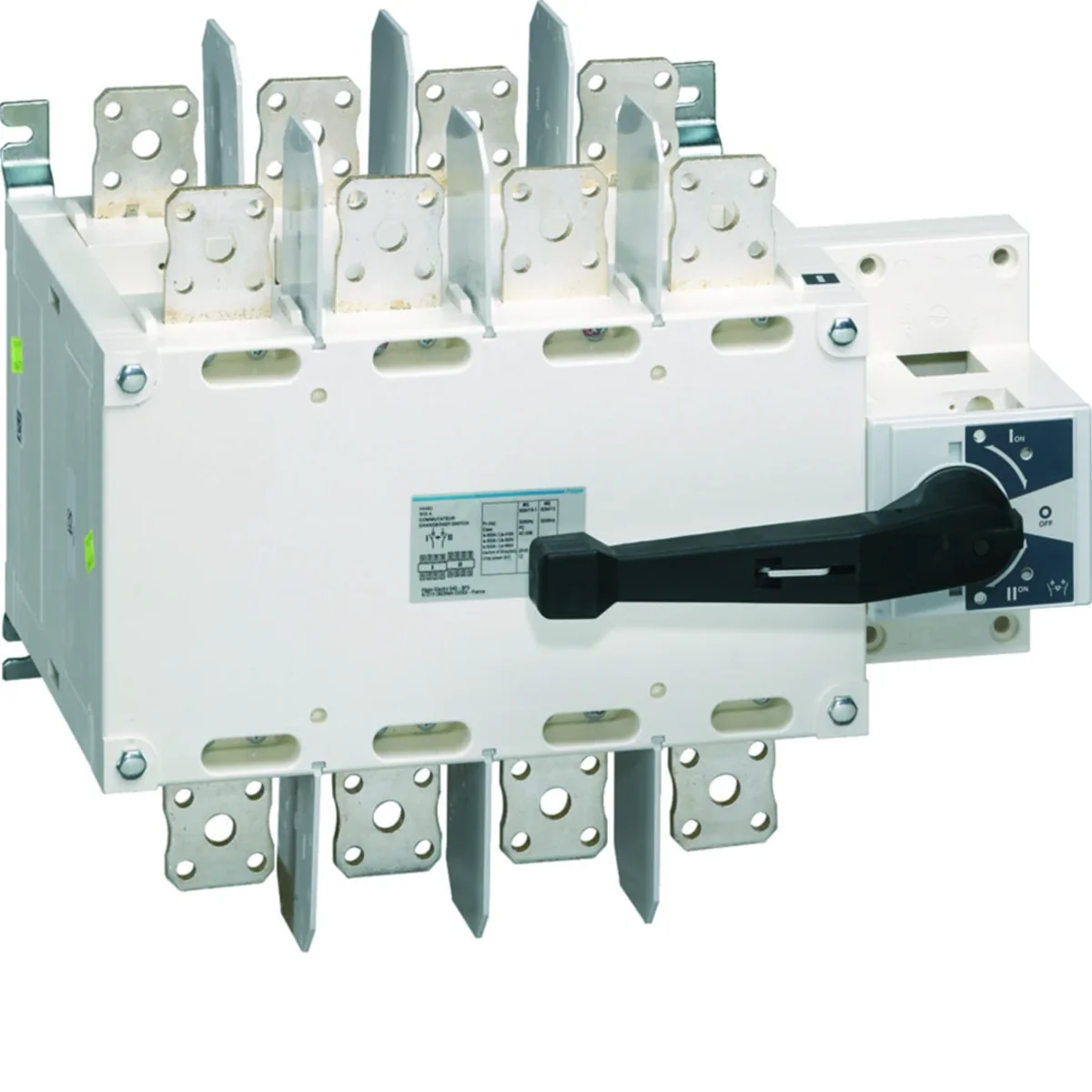

Power switch I-0-II 4P 800A HI460

local index:
ALM084HAGE
Catalog No:
HI460
EAN code:
3250613190187
Manufacturer: HAGER
Rated frequency [Hz]: 60
Depth [mm]: 375
Number of poles: 4
Price:
3204,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power switch is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice.

  • safe switching of power supply to live circuits (guaranteed mutual separation of power supply networks),
  • to be mounted on a mounting plate,
  • direct rotary drive,
  • 3 operating positions: I - 0 - II,
  • 800A.

Technical data

  • Rated frequency [Hz]
    60
  • Number of poles
    4
  • Rated insulation voltage [V]
    1000
  • Level of security
    IP00
  • Power loss per pole [W]
    41.7
  • Connection type
    Vice
  • Mechanical durability (number of cycles)
    4000
  • Rated switching voltage [V]
    380/400/500/690
  • Rated surge voltage [V]
    12000
  • Conductor cross-section (wire) [mm²]
    2 x 185 - 2 x 300
  • Depth [mm]
    375
  • DC operating voltage [V]
    260/400/500
  • Rated current [A]
    800
  • power loss [W]
    119.1
  • Width [mm]
    466
  • Height [mm]
    321
  • Operating temperature range [°C]
    from -20 to 70
  • storage temperature [°C]
    from -40 to 65
  • Rated operational current [A]
    800
  • PKWIU
    27.12.22.0

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Version as reversing switch
    Yes
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    800 A
  • Rated short-time withstand current lcw
    64 kA
  • Switching power at 400 V
    526 kW
  • Number of poles
    4
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Long turning handle
  • Type of electrical connection of main circuit
    Cable clamp
  • Degree of protection (NEMA)
    Other
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    No
  • Number of switches
    1
  • Rated operating voltage
    380 ... 690 V
  • Rated permanent current at AC-23, 400 V
    800 A
  • Rated operation power at AC-23, 400 V
    360 kW
  • Conditioned rated short-circuit current Iq
    50 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Black
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP00

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 2 pcs.
Weight (kg) 36,600 37,500 98,000
Width (m) 0,321 0,604 0,805
Length (m) 0,303 0,522 0,672
Depth (m) 0,466 0,804 1,200
