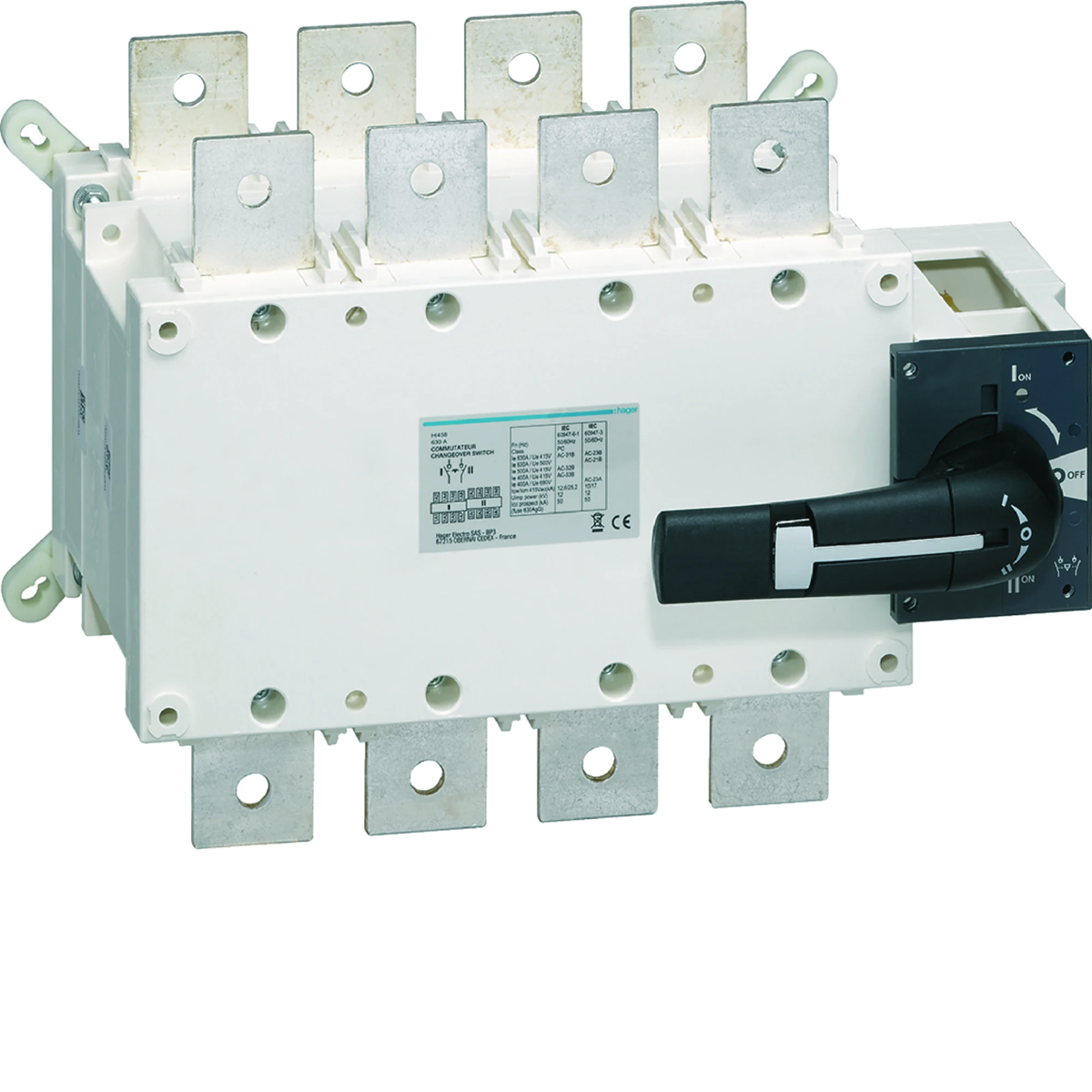

Power switch I-0-II 4P 630A HI458
local index:
ALM083HAGE
Catalog No:
HI458
EAN code:
3250613190057
Manufacturer:
HAGER
Rated frequency [Hz]: 60
Number of poles: 4
DC operating voltage [V]: 260/400/500
Price:
2773,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power switch is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice.
- safe power supply switching of live circuits (guaranteed mutual separation of power supply networks),
- to be mounted on a mounting plate,
- direct rotary drive,
- 3 operating positions: I - 0 - II,
- 630A.
Technical data
-
Rated frequency [Hz]60
-
DC operating voltage [V]260/400/500
-
Rated current [A]630
-
power loss [W]92.7
-
Connection typeVice
-
Operating temperature range [°C]from -20 to 70
-
storage temperature [°C]from -40 to 65
-
Rated operational current [A]630
-
PKWIU27.12.22.0
-
Number of poles4
-
Rated insulation voltage [V]1000
-
Level of securityIP00
-
Power loss per pole [W]32.4
-
Mechanical durability (number of cycles)5000
-
Rated switching voltage [V]380/400/500/690
-
Rated surge voltage [V]12000
-
Conductor cross-section (wire) [mm²]2 x 150 - 2 x 300
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchYes
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu630 A
-
Rated short-time withstand current lcw17 kA
-
Switching power at 400 V414 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementLong turning handle
-
Type of electrical connection of main circuitCable clamp
-
Degree of protection (NEMA)Other
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage380 ... 690 V
-
Rated permanent current at AC-23, 400 V500 A
-
Rated operation power at AC-23, 400 V225 kW
-
Conditioned rated short-circuit current Iq50 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP00
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. |
| Weight (kg) | 13,000 | 14,725 | 201,700 |
| Width (m) | 0,260 | 0,313 | 0,800 |
| Length (m) | 0,231 | 0,356 | 1,230 |
| Depth (m) | 0,379 | 0,478 | 1,200 |
