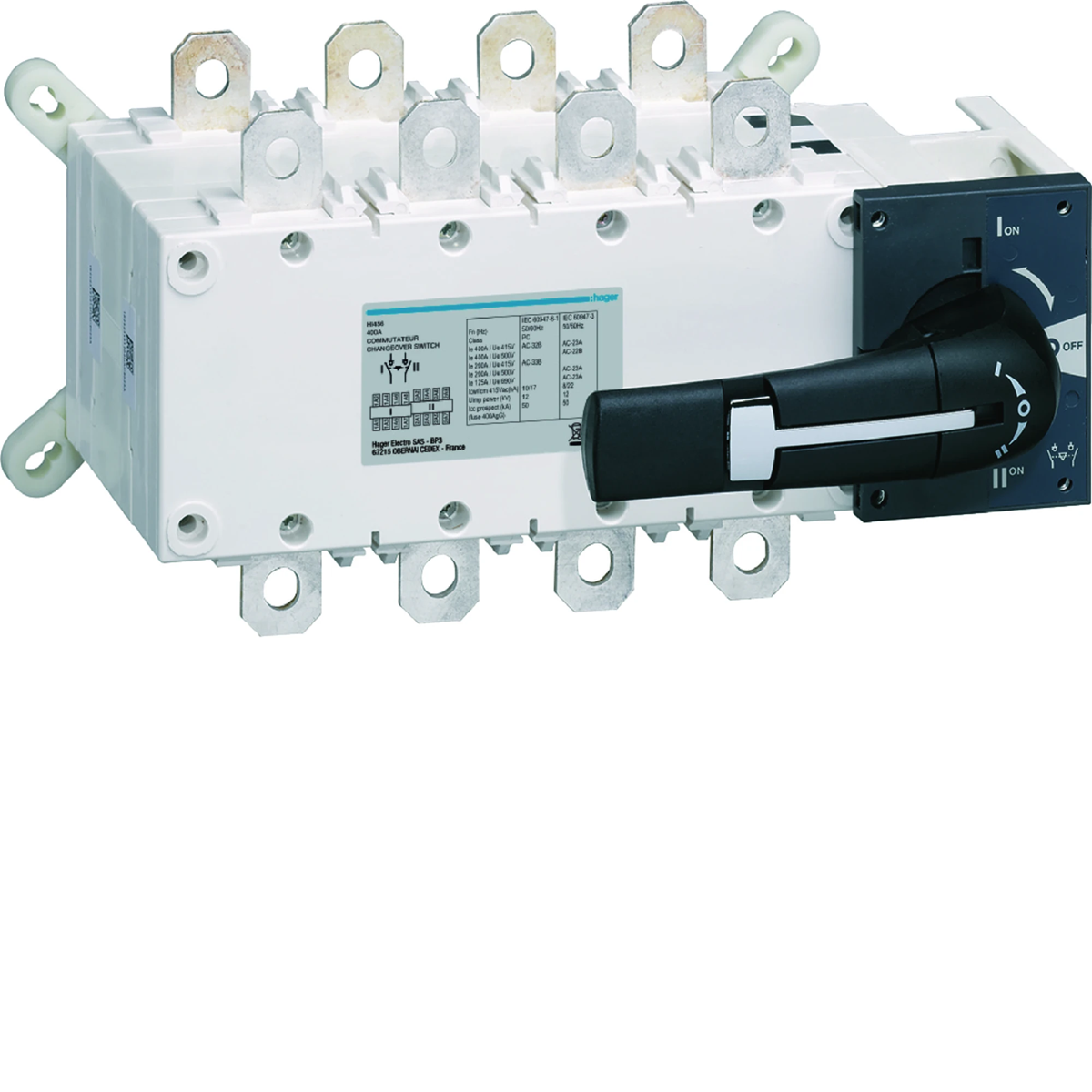

Power switch I-0-II 4P 400A HI456

local index:
ALK001HAGE
Catalog No:
HI456
EAN code:
3250613190040
Manufacturer: HAGER
Rated frequency [Hz]: 60
Number of poles: 4
DC operating voltage [V]: 260/400/500
Price:
1458,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power switch I-0-II 4P 400A

Technical data

  • Rated frequency [Hz]
    60
  • DC operating voltage [V]
    260/400/500
  • Rated current [A]
    400
  • power loss [W]
    43.2
  • Connection type
    Vice
  • Operating temperature range [°C]
    from -20 to 70
  • storage temperature [°C]
    from -40 to 70
  • Rated operational current [A]
    400
  • PKWIU
    27.12.22.0
  • Number of poles
    4
  • Rated insulation voltage [V]
    800
  • Level of security
    IP00
  • Power loss per pole [W]
    15.1
  • Mechanical durability (number of cycles)
    10000
  • Rated switching voltage [V]
    380/400/500/690
  • Rated surge voltage [V]
    8000
  • Conductor cross-section (wire) [mm²]
    185 - 240

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    Yes
  • Version as reversing switch
    Yes
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    400 A
  • Rated short-time withstand current lcw
    15 kA
  • Switching power at 400 V
    263 kW
  • Number of poles
    4
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Long turning handle
  • Type of electrical connection of main circuit
    Cable clamp
  • Degree of protection (NEMA)
    Other
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    No
  • Number of switches
    1
  • Rated operating voltage
    380 ... 690 V
  • Rated permanent current at AC-23, 400 V
    400 A
  • Rated operation power at AC-23, 400 V
    180 kW
  • Conditioned rated short-circuit current Iq
    50 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Black
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP00

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 30 pcs.
Weight (kg) 6,000 6,285 213,550
Width (m) 0,170 0,220 0,800
Length (m) 0,153 0,240 1,050
Depth (m) 0,312 0,380 1,200
