El12 and HAGER

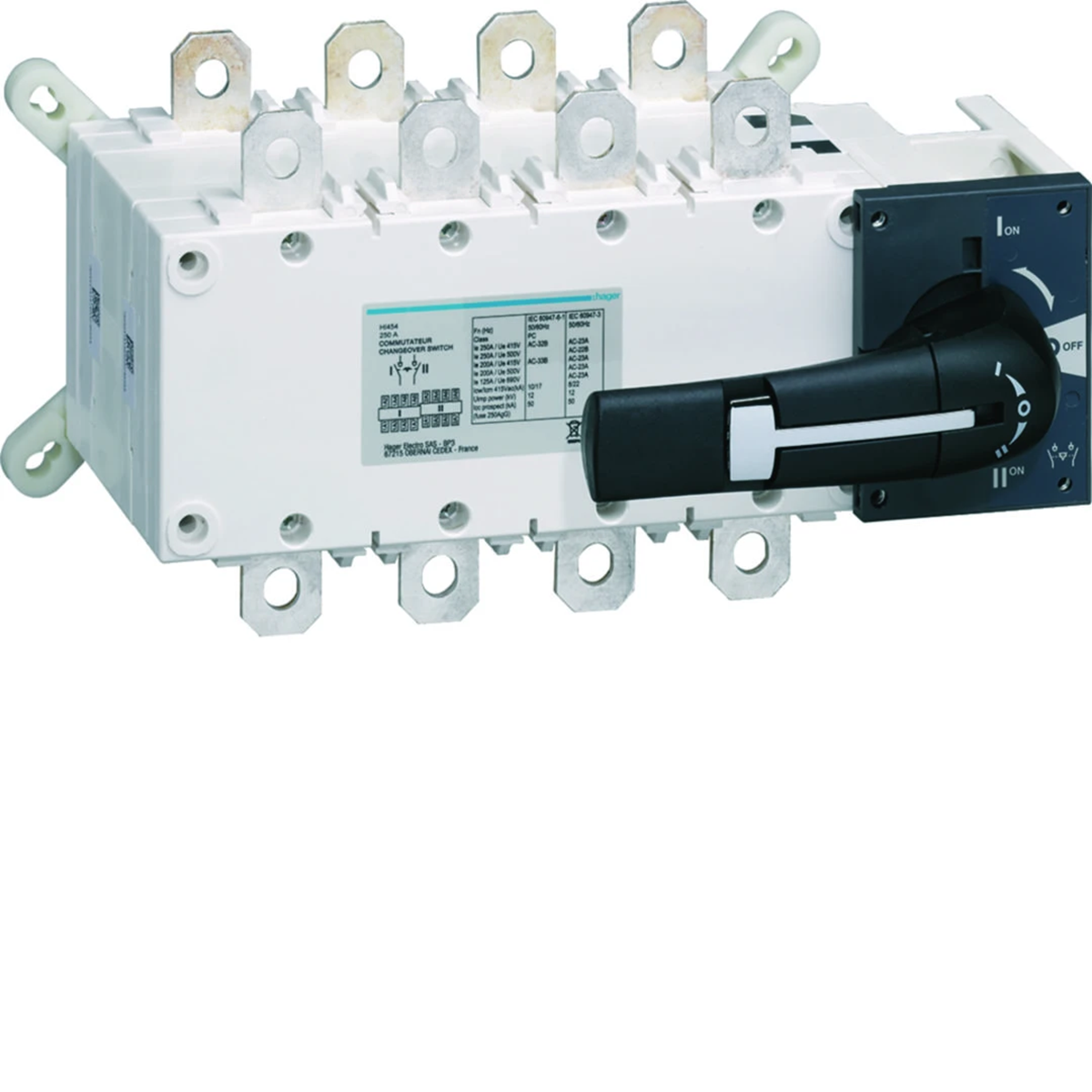

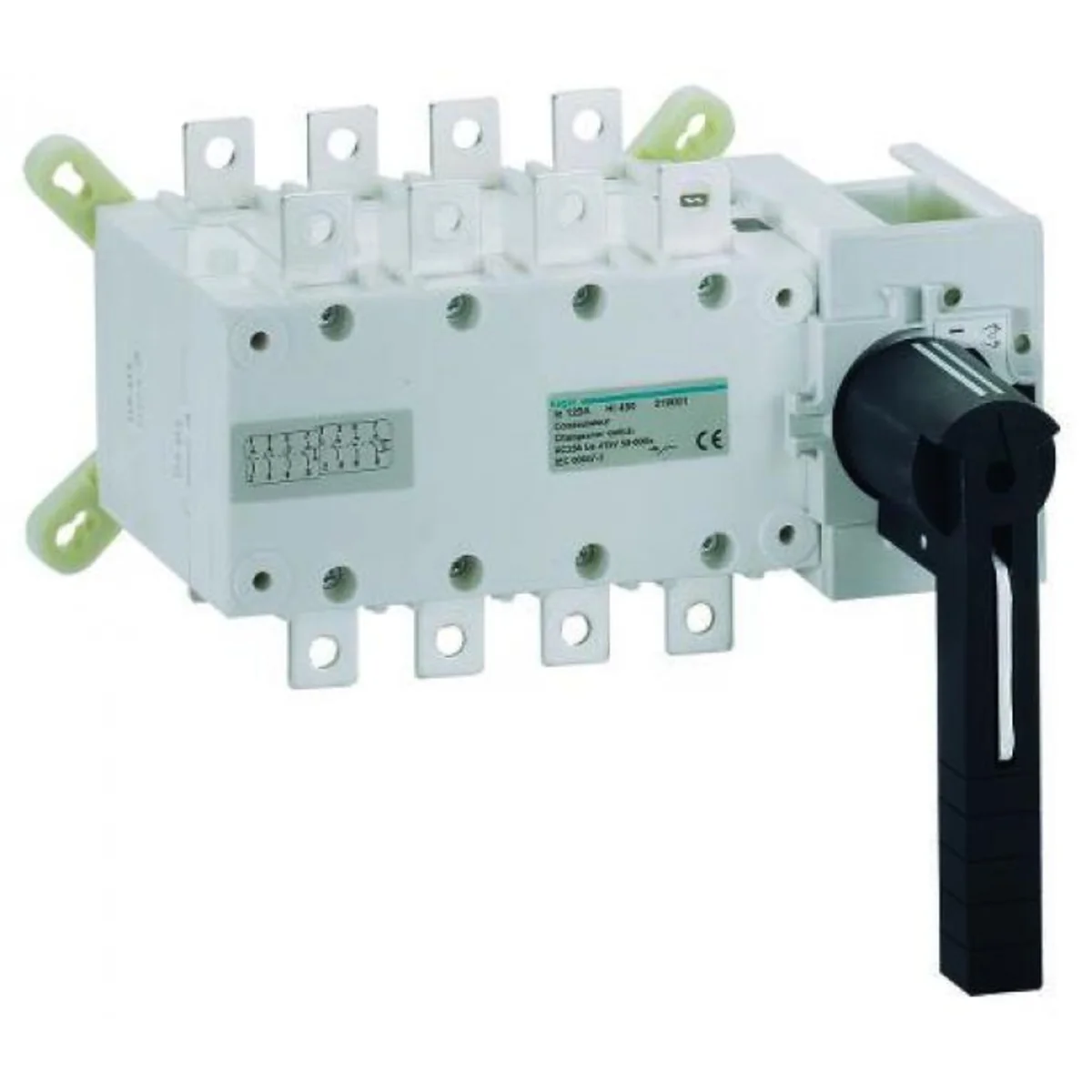

Power switch I-0-II 4P 250A HI454
local index:
ALM008HAGE
Catalog No:
HI454
EAN code:
3250613190033
Click on the photo to enlarge
Manufacturer:
HAGER
Rated current [A]:
250
See full description
Price:
1160,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Power isolation switch 4-pole, 3-position I - 0- II
Technical data
Rated current [A]
250
PKWIU
27.12.22.0
Other technical data
Version as main switch
Yes
Version as safety switch
Yes
Version as reversing switch
Yes
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
250 A
Rated short-time withstand current lcw
15 kA
Switching power at 400 V
164 kW
Number of poles
4
Number of auxiliary contacts as normally open contact
0
Motor drive optional
No
Voltage release optional
No
Suitable for floor mounting
Yes
Suitable for front mounting centre
No
Suitable for intermediate mounting
No
Type of control element
Long turning handle
Type of electrical connection of main circuit
Cable clamp
Degree of protection (NEMA)
Other
Version as maintenance-/service switch
Yes
Version as emergency stop installation
No
Number of switches
1
Rated operating voltage
380 ... 690 V
Rated permanent current at AC-23, 400 V
200 A
Rated operation power at AC-23, 400 V
90 kW
Conditioned rated short-circuit current Iq
50 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for distribution board installation
Yes
Colour control element
Black
Interlockable
Yes
Degree of protection (IP), front side
IP00
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
1 pcs.
40 pcs.
Weight (kg)
5,800
6,020
263,800
Width (m)
0,160
0,235
0,800
Length (m)
0,153
0,245
1,050
Depth (m)
0,312
0,380
1,200
