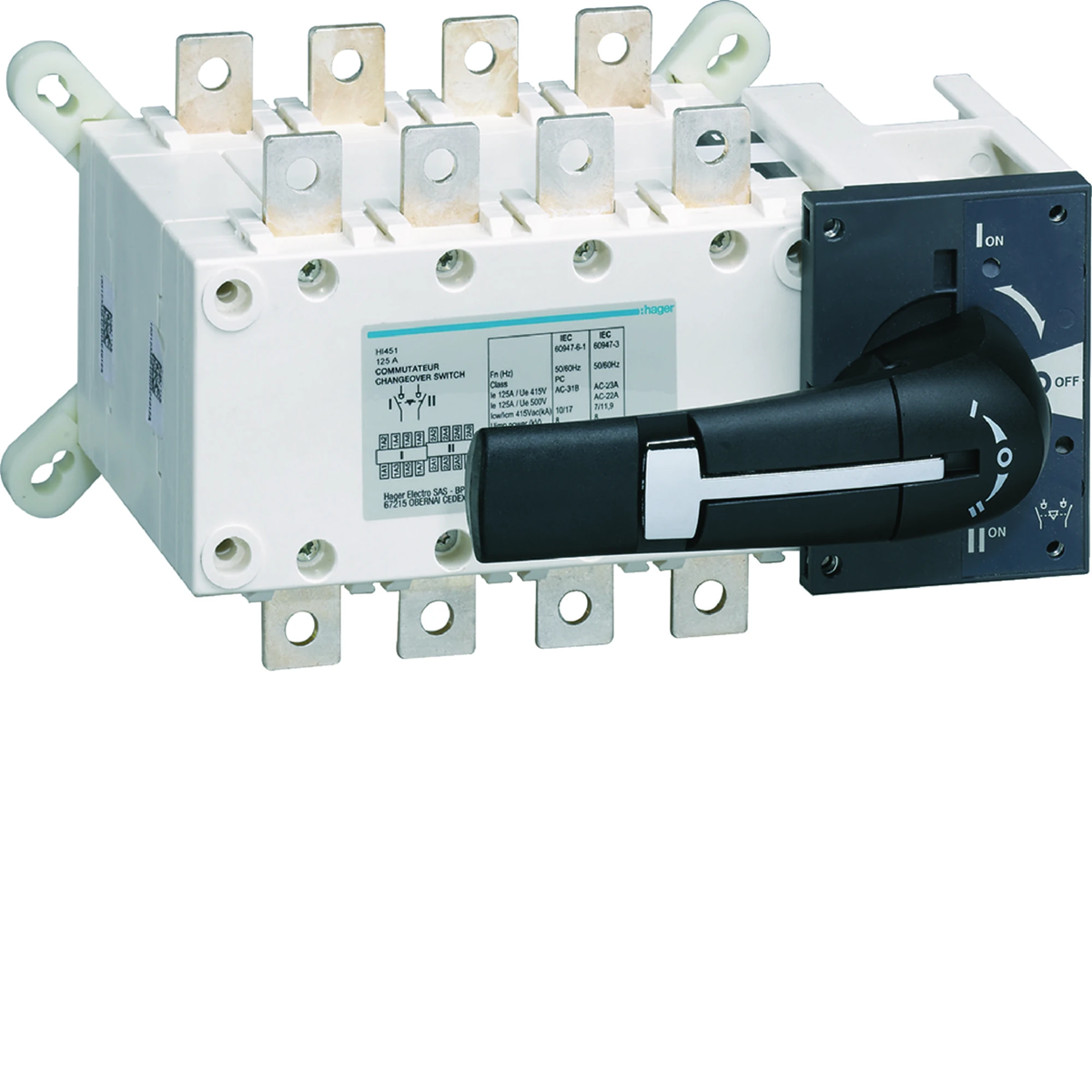

Power switch I-0-II 4P 125A HI451
local index:
ALI222HAGE
Catalog No:
HI451
EAN code:
3250613190224
Manufacturer:
HAGER
Rated frequency [Hz]: 60
Number of poles: 4
DC operating voltage [V]: 260/400/500
Price:
699,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power switch is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice.
- safe switching of power supply to live circuits (guaranteed mutual separation of power supply networks),
- to be mounted on a mounting plate,
- direct rotary drive,
- 3 operating positions: I - 0 - II,
- 125A.
Technical data
-
Rated frequency [Hz]60
-
DC operating voltage [V]260/400/500
-
Rated current [A]125
-
power loss [W]5.4
-
Connection typeVice
-
Operating temperature range [°C]from -20 to 70
-
storage temperature [°C]from -40 to 70
-
Rated operational current [A]125
-
PKWIU27.12.22.0
-
Number of poles4
-
Rated insulation voltage [V]800
-
Level of securityIP00
-
Power loss per pole [W]1.9
-
Mechanical durability (number of cycles)10000
-
Rated switching voltage [V]380/400/500/690
-
Rated surge voltage [V]8000
-
Conductor cross-section (wire) [mm²]35 - 50
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchYes
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu125 A
-
Rated short-time withstand current lcw12 kA
-
Switching power at 400 V82 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementLong turning handle
-
Type of electrical connection of main circuitCable clamp
-
Degree of protection (NEMA)Other
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage380 ... 690 V
-
Rated permanent current at AC-23, 400 V125 A
-
Rated operation power at AC-23, 400 V56 kW
-
Conditioned rated short-circuit current Iq100 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP00
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 40 pcs. |
| Weight (kg) | 3,961 | 3,962 | 236,800 |
| Width (m) | 0,135 | 0,179 | 0,800 |
| Length (m) | 0,148 | 0,216 | 1,014 |
| Depth (m) | 0,251 | 0,283 | 1,200 |
