El12 and HAGER

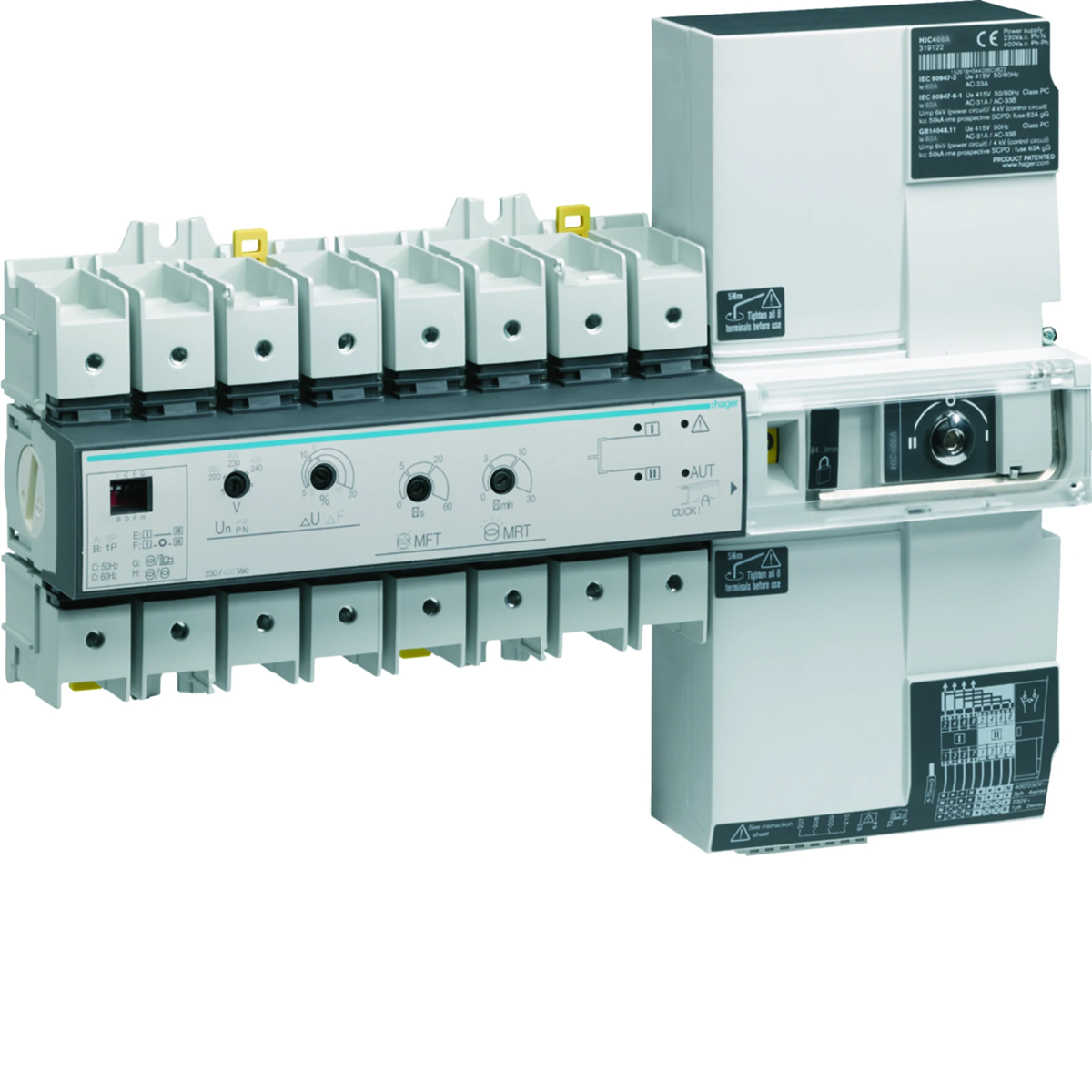

Power switch, automatic, 4P 80A HIC408A
local index:
ALM051HAGE
Catalog No:
HIC408A
EAN code:
3250613191238
Click on the photo to enlarge
Manufacturer:
HAGER
Rated frequency [Hz]:
60
Number of poles:
4
Rated current [A]:
80
See full description
Price:
1263,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Power switch, automatic, 4P 80A
Technical data
Rated frequency [Hz]
60
Rated current [A]
80
power loss [W]
5.7
Connection type
With a screw
PKWIU
27.12.22.0
Number of poles
4
Level of security
IP20
Power loss per pole [W]
1.9
Rated switching voltage [V]
380/415
Other technical data
Version as main switch
Yes
Version as safety switch
Yes
Version as reversing switch
Yes
Max. rated operation voltage Ue AC
415 V
Rated permanent current Iu
80 A
Rated short-time withstand current lcw
7 kA
Switching power at 400 V
52 kW
Number of poles
4
Number of auxiliary contacts as normally open contact
0
Motor drive optional
No
Voltage release optional
No
Suitable for floor mounting
Yes
Suitable for front mounting centre
No
Suitable for intermediate mounting
No
Type of control element
Other
Type of electrical connection of main circuit
Screw connection
Degree of protection (NEMA)
Other
Version as maintenance-/service switch
Yes
Version as emergency stop installation
No
Number of switches
1
Rated operating voltage
380 ... 415 V
Rated permanent current at AC-21, 400 V
80 A
Rated operation power at AC-23, 400 V
36 kW
Conditioned rated short-circuit current Iq
50 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
Yes
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for distribution board installation
Yes
Colour control element
Other
Interlockable
Yes
Degree of protection (IP), front side
IP20
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
1 pcs.
100 pcs.
Weight (kg)
4,120
4,322
457,200
Width (m)
0,245
0,295
0,800
Length (m)
0,073
0,115
1,500
Depth (m)
0,332
0,395
1,200
