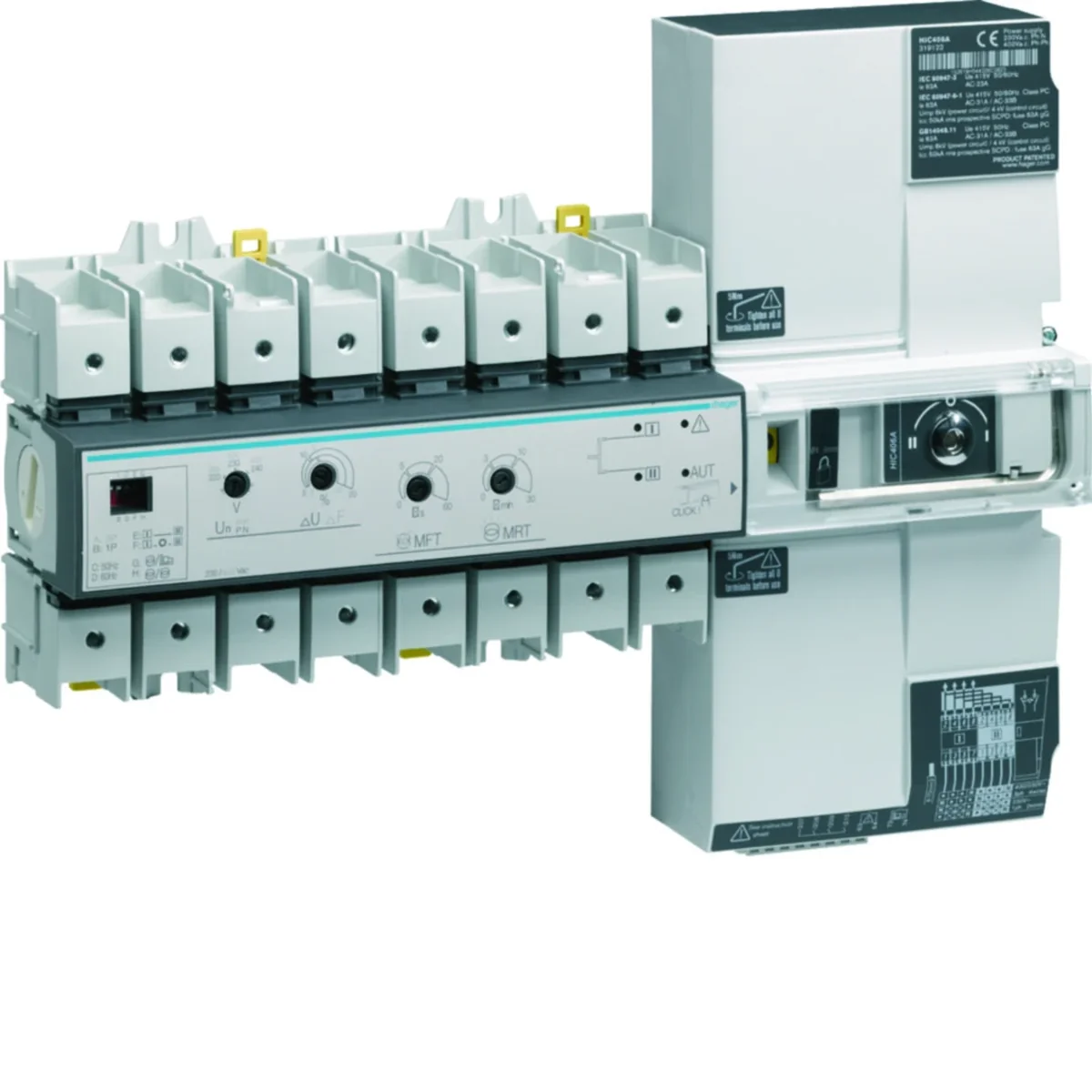

Power switch, automatic, 4P 63A HIC406A
local index:
ALM050HAGE
Catalog No:
HIC406A
EAN code:
3250613191221
Price:
1251,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power switch, automatic, 4P 63A
Technical data
-
Rated frequency [Hz]60
-
Rated current [A]63
-
power loss [W]3.6
-
Connection typeWith a screw
-
PKWIU27.12.22.0
-
Number of poles4
-
Level of securityIP20
-
Power loss per pole [W]1.2
-
Rated switching voltage [V]380/415
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchYes
-
Max. rated operation voltage Ue AC415 V
-
Rated permanent current Iu63 A
-
Rated short-time withstand current lcw7 kA
-
Switching power at 400 V41 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementOther
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)Other
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage380 ... 415 V
-
Rated permanent current at AC-21, 400 V63 A
-
Rated operation power at AC-23, 400 V28 kW
-
Conditioned rated short-circuit current Iq50 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedYes
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementOther
-
InterlockableYes
-
Degree of protection (IP), front sideIP20
Manufacturer details
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 64 pcs. |
| Weight (kg) | 4,120 | 4,335 | 302,440 |
| Width (m) | 0,245 | 0,295 | 0,800 |
| Length (m) | 0,073 | 0,120 | 1,050 |
| Depth (m) | 0,332 | 0,400 | 1,200 |
