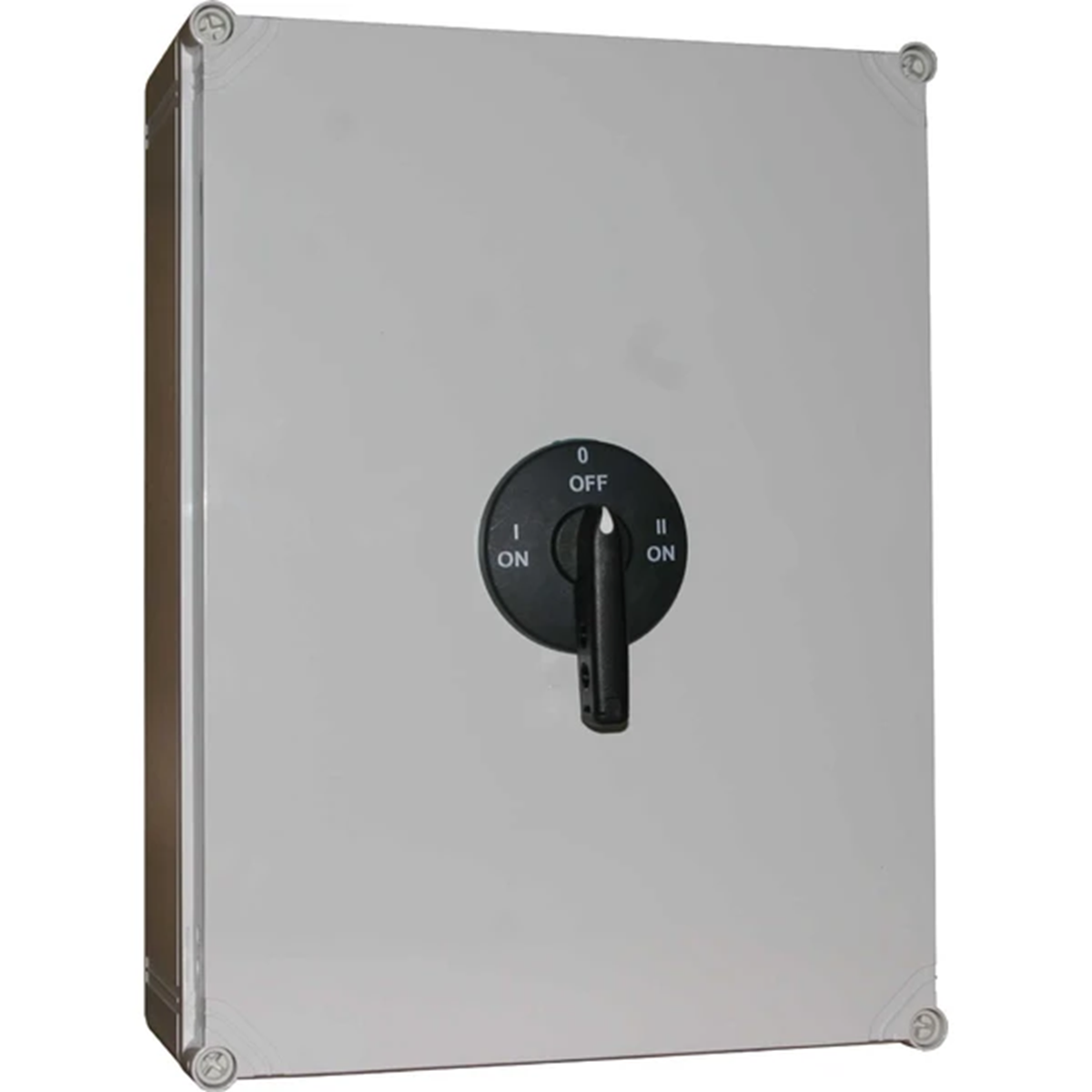

Power supply switch three-pole+N (non-separable) in the housing PRZK-3125N\OBA

local index:
ALK045SPAM
Catalog No:
PRZK-3125N\OBA
EAN code:
5907723012752
Manufacturer: SPAMEL
Continuous current [A]: 125
Price:
413,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

PRZK power source switches are built on the basis of RSI disconnectors, therefore they have all the features of these disconnectors. PRZK switches are a structural connection, with one common cover, of two RSI type switch disconnectors. This solution ensures excellent rigidity of the system, and thus, operational reliability and safety of use.

Technical data

  • Continuous current [A]
    125

Other technical data

  • Model
    Reverser
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    125 A
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    No
  • Suitable for intermediate mounting
    Yes
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    Yes
  • Suitable for distribution board installation
    No
  • Complete device in housing
    Yes
  • Type of control element
    Turn button
