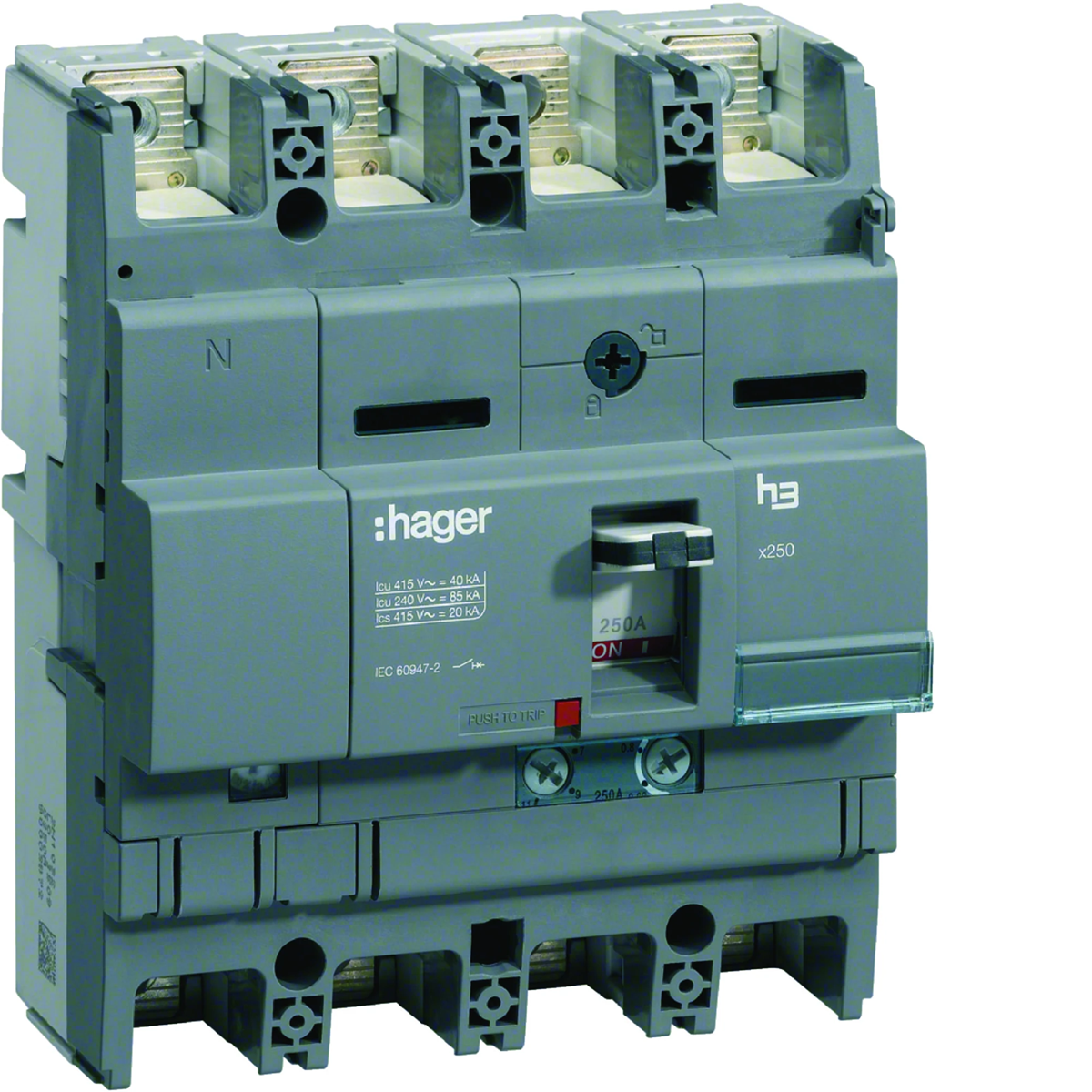

Power circuit breaker x250 4P 40kA 100A TM HNB101H

local index:
ALI194HAGE
Catalog No:
HNB101H
EAN code:
3250613347789
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Number of poles: 4
Tightening torque [Nm]: 12
Price:
656,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power switches and disconnectors
Size x250:
Power Breakers:
• equipped with thermal-magnetic releases
• adjustment of the thermal element in the range from 0.63 to 1xIN
• adjustment of the magnetic member in the range:
from 6 to 13xIN for 100-200A
from 5 to 11xIN for 250A
• compliant with the standard IEC 60947-2 Power switches:
• for switching on and off operating currents, not equipped with releases
• accessories as for circuit breakers
• Icw (1s) = 3.6 kA
• compliant with the IEC 60947-3 standard, cat. AC22/23A
Features:
• mounting on a mounting plate
• cage clamps for copper and aluminum conductors available as accessories
• mechanical button TEST
• integrated lever lock for a padlock max. ∅ 4mm
• standard connection with cable lugs
with 8mm hole,
width max. 25mm,
wire 50-185 mm²,
stranded 35-150mm²

Technical data

  • Rated frequency [Hz]
    50/60
  • Tightening torque [Nm]
    12
  • Rated current [A]
    100
  • Power loss per pole [W]
    8.3
  • Trigger type
    TM
  • Mechanical durability (number of cycles)
    4000
  • Connection type
    Vice
  • Electromagnetic release setting
    0.63/0.8/1
  • Number of poles
    4
  • Rated insulation voltage [V]
    800
  • power loss [W]
    24.8
  • Working temperature [°C]
    -25 to 70
  • Electrical endurance (number of cycles)
    1000
  • Rated impulse voltage [kV]
    8
  • AC rated voltage [V]
    220/415
  • PKWIU
    27.12.22.0

Other technical data

  • Rated permanent current Iu
    100 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    40 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    Yes
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes
  • Rated voltage
    220 ... 415 V
  • Overload release current setting
    63 ... 100 A
  • Adjustment range undelayed short-circuit release
    600 ... 1300 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Number of poles
    4
  • Type of control element
    Toggle
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP40

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 6 pcs. 144 pcs.
Weight (kg) 1,603 2,145 13,237 340,688
Width (m) 0,140 0,151 0,321 0,800
Length (m) 0,096 0,110 0,216 1,014
Depth (m) 0,165 0,188 0,365 1,200
