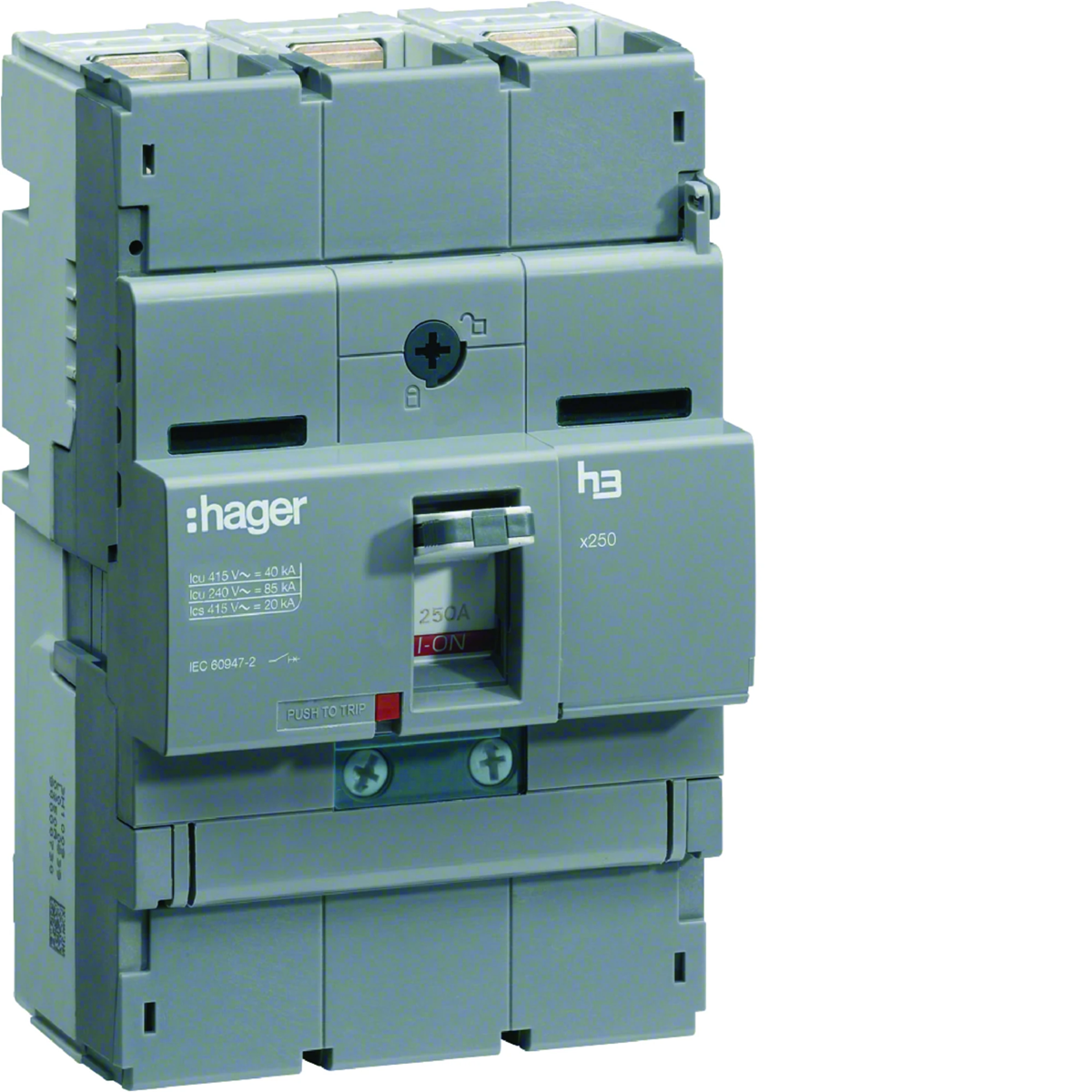

Power circuit breaker x250 3P 40kA 250A TM HNB250H

local index:
ALI158HAGE
Catalog No:
HNB250H
EAN code:
3250613347772
Manufacturer: HAGER
Characteristic: TM
Number of poles: 3
Surge voltage [kV]: 8000
Price:
599,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power circuit breakers equipped with thermal-magnetic trip units

Technical data

  • Characteristic
    TM
  • Surge voltage [kV]
    8000
  • Rated current [A]
    250
  • Power loss per pole [W]
    16
  • Mechanical durability (number of cycles)
    4000
  • Number of poles
    3
  • Rated insulation voltage [V]
    800
  • power loss [W]
    48
  • Electrical endurance (number of cycles)
    1000
  • PKWIU
    27.12.22.0

Other technical data

  • Rated permanent current Iu
    250 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    40 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    Yes
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes
  • Rated voltage
    220 ... 415 V
  • Overload release current setting
    160 ... 250 A
  • Adjustment range undelayed short-circuit release
    1250 ... 2750 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Number of poles
    3
  • Type of control element
    Toggle
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP40

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 6 pcs. 144 pcs.
Weight (kg) 1,395 1,662 10,229 268,496
Width (m) 0,105 0,118 0,321 0,800
Length (m) 0,096 0,115 0,214 1,006
Depth (m) 0,165 0,188 0,373 1,200
