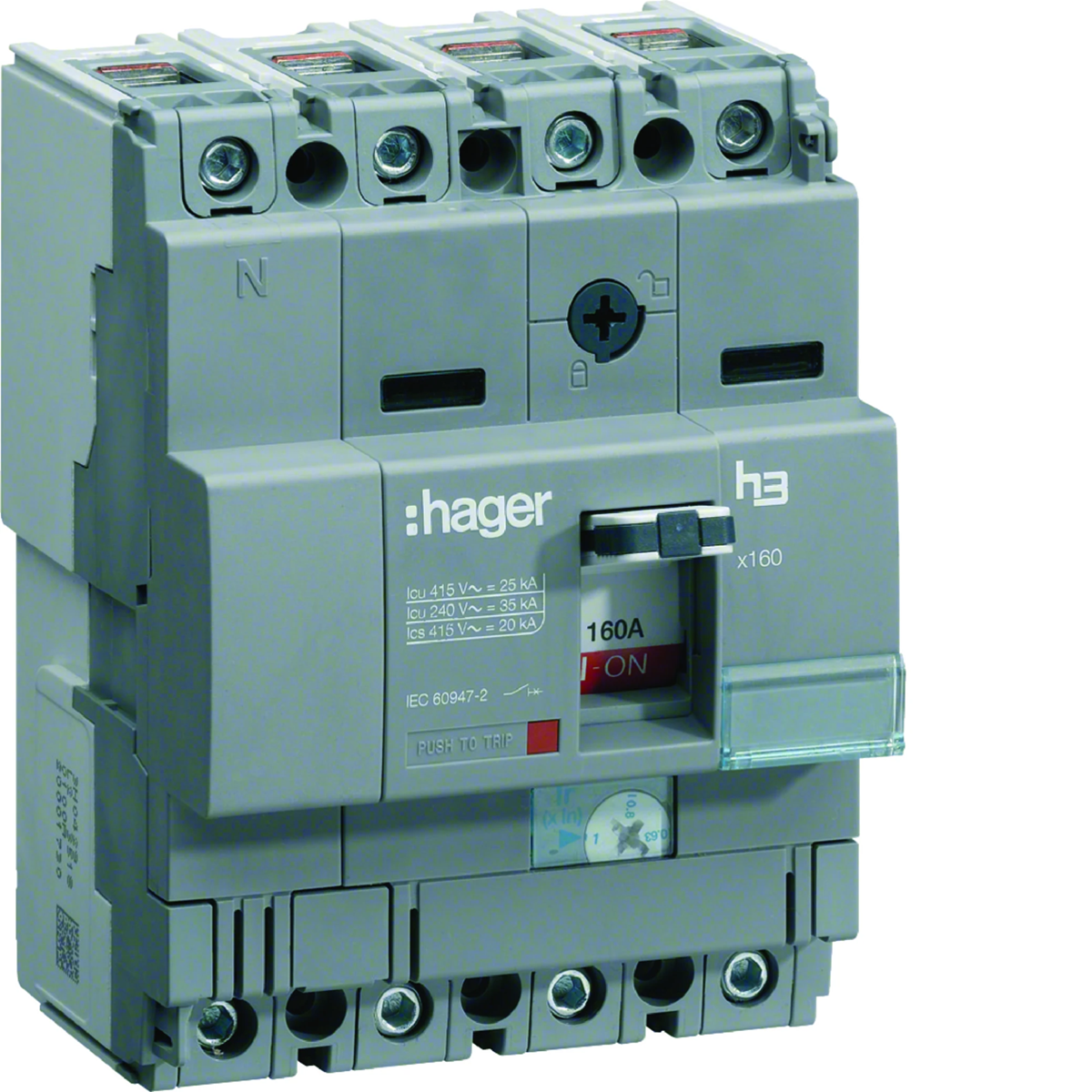

Power switches and disconnectors
Size x160:
Power Breakers:
• equipped with thermal-magnetic releases
• adjustment of the thermal element in the range from 0.63 to 1xIN
• permanent magnetic member 10xIN
• compliant with IEC 60947-2
Power switches:
• for switching on and off operating currents, not equipped with releases
• accessories as for circuit breakers
• Icw (1s) = 2kA
• compliant with the IEC 60947-3 standard, cat. AC22/23A
Features:
• mounting on a TS35 rail or mounting plate
• standard cage terminals for connecting copper wires
• cage clamps for aluminum conductors available as accessories
• equipped with connector measuring tips
• mechanical button TEST
• integrated lever lock for a padlock max. 4mm
• cage clamps:
- wire from 6 to 95 mm²
- stranded wire from 6 to 70 mm²

Rated frequency [Hz]

50/60
Tightening torque [Nm]

6
Rated current [A]

40
Power loss per pole [W]

3.7
Trigger type

TM
Mechanical durability (number of cycles)

4000
Rated impulse voltage [kV]

8
Number of modules

6
Electromagnetic release setting

0.63/0.8/1

Number of poles

4
Rated insulation voltage [V]

690
power loss [W]

11
Working temperature [°C]

-25 to 70
Electrical endurance (number of cycles)

1000
Rated short-circuit breaking capacity according to IEC 947.2 50 Hz

80
Connection type

With a screw
AC rated voltage [V]

220/415
PKWIU

27.12.22.0

Other technical data

Rated permanent current Iu

40 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

25 kA
Adjustment range undelayed short-circuit release

600 ... 600 A
Type of electrical connection of main circuit

Screw connection
Suitable for DIN rail (top hat rail) mounting

Yes
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
Number of poles

4
Type of control element

Toggle
Motor drive integrated

No
Degree of protection (IP)

IP40

Rated voltage

220 ... 415 V
Overload release current setting

25 ... 40 A
Integrated earth fault protection

No
Device construction

Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional

No
Number of auxiliary contacts as normally open contact

0
With switched-off indicator

Yes
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

No
