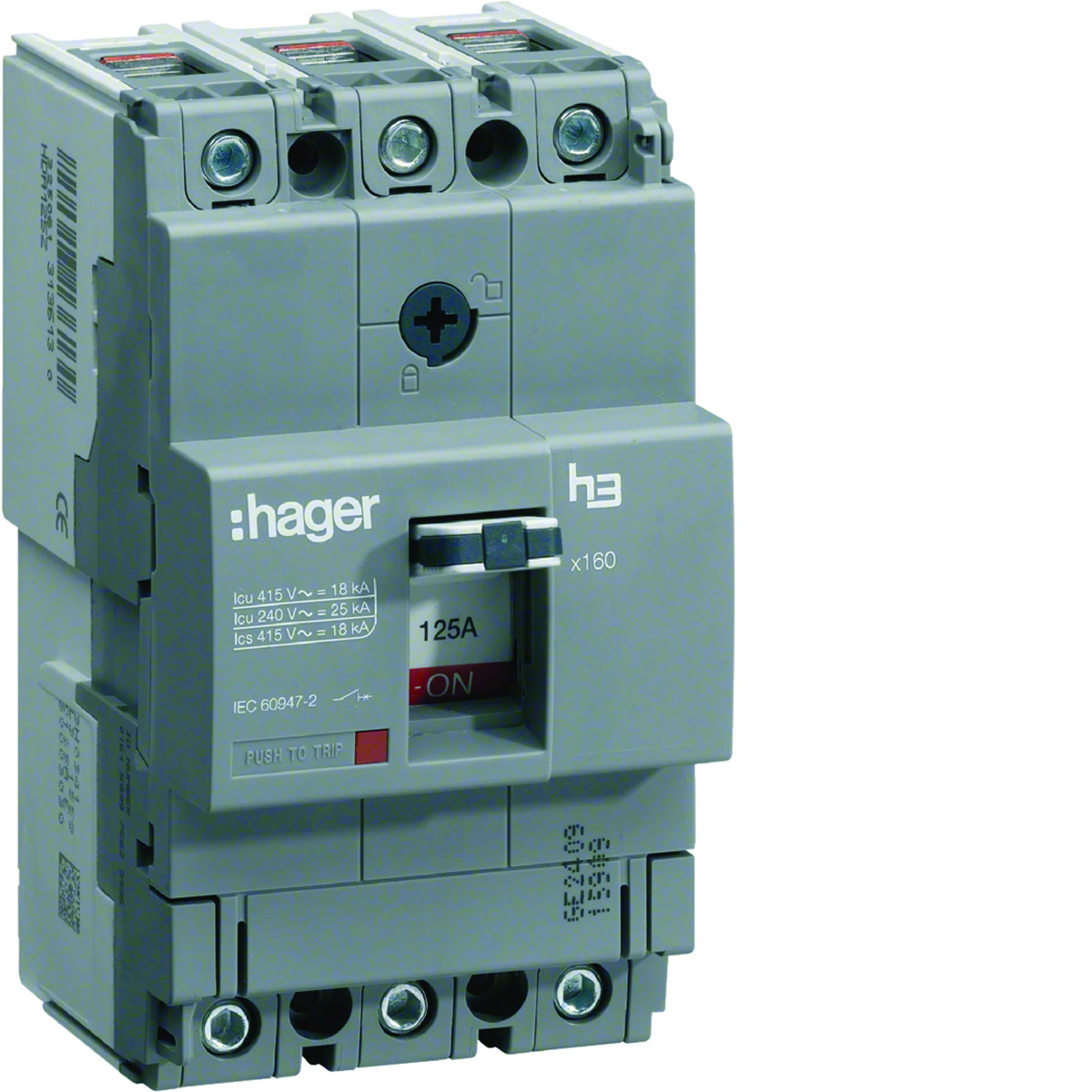

Power circuit breaker x160 3P 40kA 100A HNA100H

local index:
ALI180HAGE
Catalog No:
HNA100H
EAN code:
3250613130848
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Number of poles: 3
Tightening torque [Nm]: 6
Price:
357,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power switches and disconnectors
Size x160:
Power Breakers:
• equipped with thermal-magnetic releases
• adjustment of the thermal element in the range from 0.63 to 1xIN
• permanent magnetic member 10xIN
• compliant with IEC 60947-2
Power switches:
• for switching on and off operating currents, not equipped with releases
• accessories as for circuit breakers
• Icw (1s) = 2kA
• compliant with the IEC 60947-3 standard, cat. AC22/23A
Features:
• mounting on a TS35 rail or mounting plate
• standard cage terminals for connecting copper wires
• cage clamps for aluminum conductors available as accessories
• equipped with connector measuring tips
• mechanical button TEST
• integrated lever lock for a padlock max. 4mm
• cage clamps:
- wire from 6 to 95 mm²
- stranded wire from 6 to 70 mm²

Technical data

  • Rated frequency [Hz]
    50/60
  • Tightening torque [Nm]
    6
  • Rated current [A]
    100
  • Power loss per pole [W]
    11.9
  • Trigger type
    TM
  • Mechanical durability (number of cycles)
    4000
  • Rated impulse voltage [kV]
    8
  • Number of modules
    4.5
  • Electromagnetic release setting
    0.63/0.8/1
  • Number of poles
    3
  • Rated insulation voltage [V]
    690
  • power loss [W]
    35.7
  • Working temperature [°C]
    -25 to 70
  • Electrical endurance (number of cycles)
    1000
  • Rated short-circuit breaking capacity according to IEC 947.2 50 Hz
    50
  • Connection type
    With a screw
  • AC rated voltage [V]
    220/415
  • PKWIU
    27.12.22.0

Other technical data

  • Rated permanent current Iu
    100 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    40 kA
  • Adjustment range undelayed short-circuit release
    1500 ... 1500 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    Yes
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Number of poles
    3
  • Type of control element
    Toggle
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP40
  • Rated voltage
    220 ... 415 V
  • Overload release current setting
    63 ... 100 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    No
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    Yes
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 9 pcs. 216 pcs.
Weight (kg) 0,960 1,012 9,581 252,944
Width (m) 0,075 0,128 0,318 0,800
Length (m) 0,096 0,084 0,216 1,014
Depth (m) 0,130 0,168 0,371 1,200
