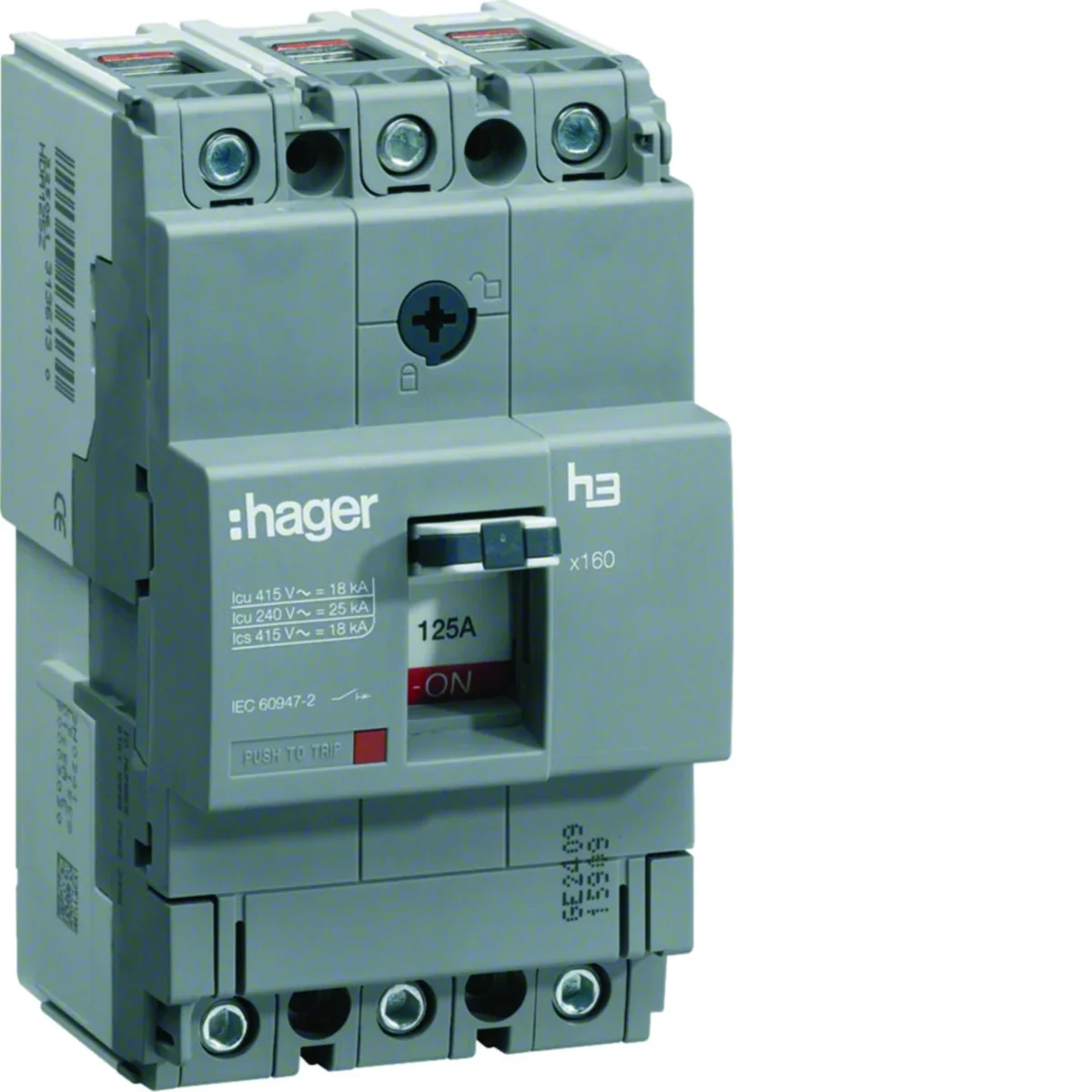

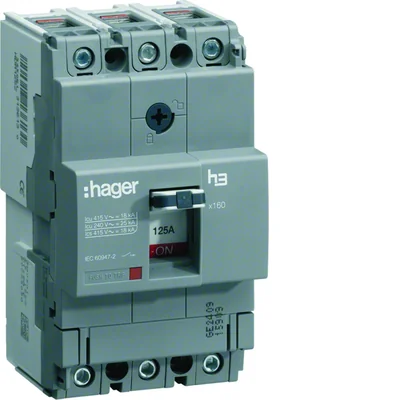

Power circuit breaker x160 3P 25kA 100A HHA100H

local index:
ALP002HAGE
Catalog No:
HHA100H
EAN code:
3250613130497
Manufacturer: HAGER
Number of poles: 3
Rated insulation voltage [V]: 690
Power dissipation [W]: 33
Price:
274,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power switches:
• equipped with thermal-magnetic releases
• regulation of the thermal element in the range from 0.63 to 1xIn
• permanent magnetic member 10xIn
• compliant with IEC 60947-2  Features:
• mounting on a TS35 rail or mounting plate
• standard cage clamps for connecting copper wires
• cage clamps for aluminum conductors available as accessories

Technical data

  • Number of poles
    3
  • Power dissipation [W]
    33
  • PKWIU
    27.12.22.0
  • Rated insulation voltage [V]
    690
  • Rated impulse voltage [kV]
    8000

Other technical data

  • Rated permanent current Iu
    100 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    25 kA
  • Adjustment range undelayed short-circuit release
    1500 ... 1500 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    Yes
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Number of poles
    3
  • Type of control element
    Toggle
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP40
  • Rated voltage
    220 ... 415 V
  • Overload release current setting
    63 ... 100 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    No
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    Yes
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 9 pcs. 216 pcs.
Weight (kg) 0,938 1,014 9,574 252,776
Width (m) 0,075 0,128 0,321 0,800
Length (m) 0,096 0,087 0,216 1,014
Depth (m) 0,130 0,169 0,372 1,200
