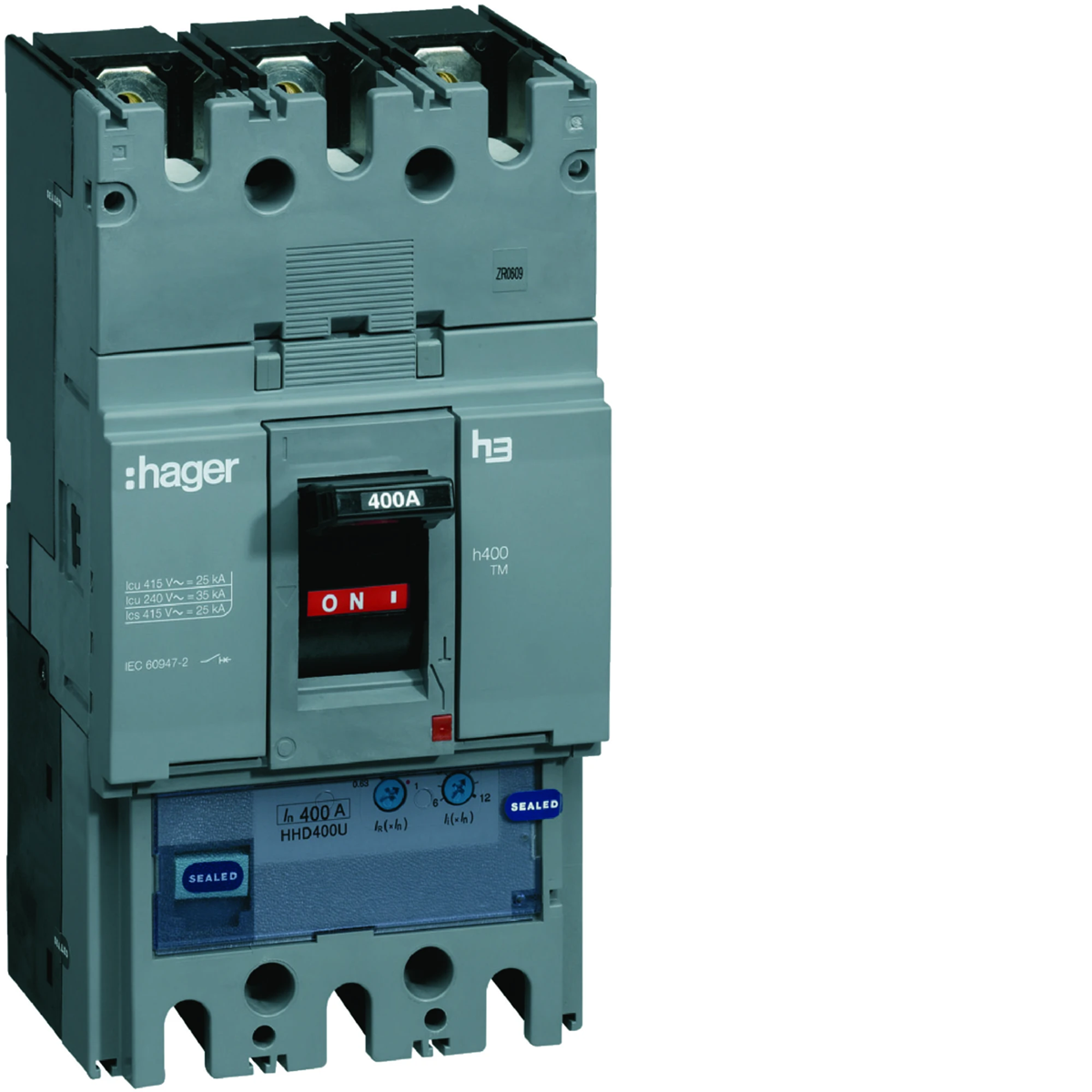

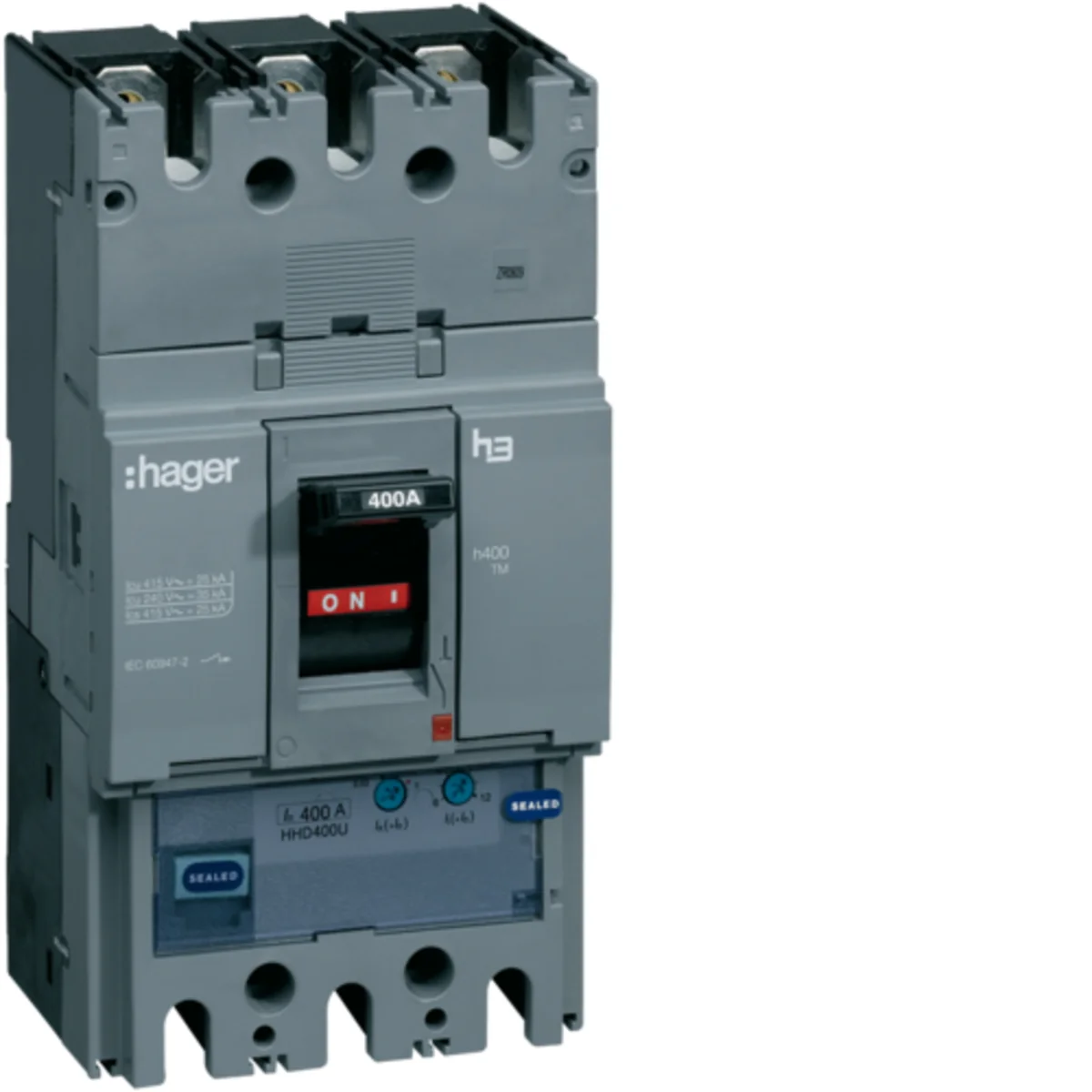

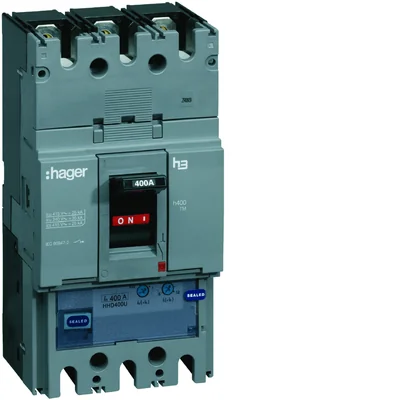

Power circuit breaker h400 3P 25kA 400A TM HHD400U

local index:
ALP006HAGE
Catalog No:
HHD400U
EAN code:
3250613189112
Manufacturer: HAGER
Number of poles: 3
Maximum voltage [V]: 220/690
Surge voltage [kV]: 8000
Price:
1085,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power circuit breaker h400 3P 25kA 400A TM

Technical data

  • Number of poles
    3
  • Surge voltage [kV]
    8000
  • Rated current [A]
    400
  • Maximum voltage [V]
    220/690
  • Rated insulation voltage [V]
    800
  • PKWIU
    27.12.22.0

Other technical data

  • Rated permanent current Iu
    400 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    25 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    No
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Number of poles
    3
  • Type of control element
    Toggle
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP40
  • Rated voltage
    220 ... 690 V
  • Overload release current setting
    250 ... 400 A
  • Adjustment range undelayed short-circuit release
    2400 ... 4800 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Z wyzwalaczem podnapięciowym
    No
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 48 pcs.
Weight (kg) 5,000 5,140 269,720
Width (m) 0,140 0,190 0,800
Length (m) 0,140 0,193 1,050
Depth (m) 0,260 0,300 1,200
