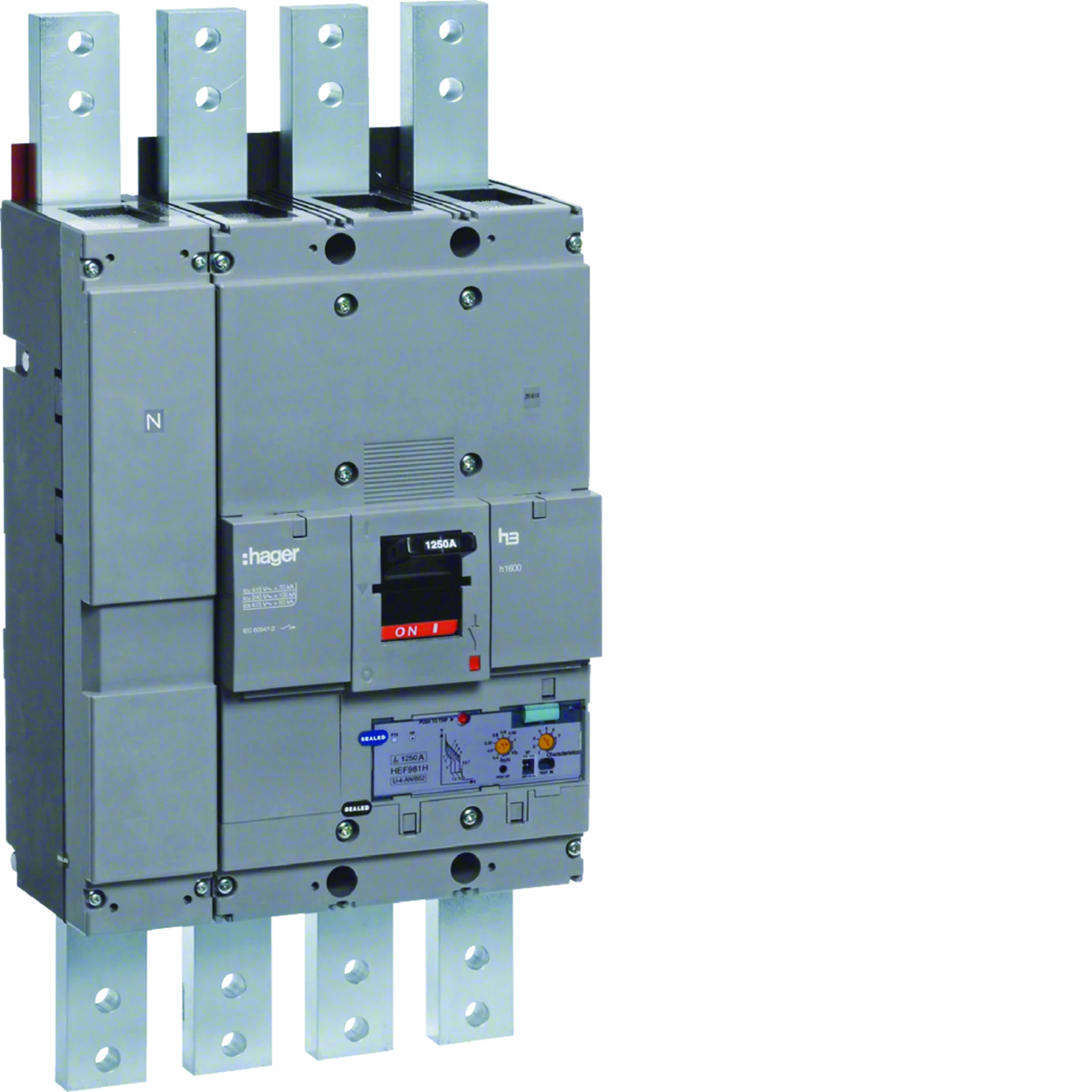

Power circuit breaker h1600 4P 50kA 1250A LSI HNF981H

local index:
ALM131HAGE
Catalog No:
HNF981H
EAN code:
3250613349912
Manufacturer: HAGER
Rated frequency [Hz]: 60
Number of poles: 4
Tightening torque [Nm]: 65
Price:
5377,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power switch is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice. Various connection possibilities and a wide range of equipment allow for the implementation of non-standard solutions on the implemented objects without much effort.

  • size h1600,
  • the trigger unit is LSI,
  • < li>1250A.

Technical data

  • Rated frequency [Hz]
    60
  • Tightening torque [Nm]
    65
  • Rated current [A]
    1250
  • power loss [W]
    187.5
  • Connection type
    Vice
  • Mechanical durability (number of cycles)
    4000
  • Rated switching voltage [V]
    220/690
  • Reaction time when opening [ms]
    10
  • Ultimate short-circuit breaking capacity Icu for 230V [kA]
    100
  • Ultimate short-circuit breaking capacity Icu for 400V [kA]
    50
  • Ultimate short-circuit breaking capacity Icu for 440V [kA]
    70
  • Ultimate short-circuit breaking capacity per pole for 400V [kA]
    9
  • Electromagnetic release setting
    2.5/5/10
  • trigger mode
    LSI
  • Rated current correction factor for 3 devices installed side by side
    1
  • Wire cross-section (cord) [mm²]
    3 x 240
  • PKWIU
    27.12.22.0
  • Number of poles
    4
  • Rated insulation voltage [V]
    800
  • Level of security
    IP4X
  • Power loss per pole [W]
    62.5
  • Electrical endurance (number of cycles)
    1000
  • Operating temperature range [°C]
    from -25 to 70
  • Number of modules
    16
  • The setpoint triggers the thermal
    0.4/0.5/0.63/0.8/0.9/0.95/1
  • Ultimate short-circuit breaking capacity Icu for 240V [kA]
    100
  • Ultimate short-circuit breaking capacity Icu for 415V [kA]
    50
  • Short-circuit breaking capacity limit per pole for 230V [kA]
    60
  • Service short-circuit breaking capacity Ics [%]
    100
  • storage temperature [°C]
    from -35 to 70
  • Rated current correction factor for 2 devices installed side by side
    1
  • Rated surge voltage [V]
    8000
  • Conductor cross-section (wire) [mm²]
    3 x 240

Other technical data

  • Rated permanent current Iu
    1250 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    50 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    No
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes
  • Rated voltage
    220 ... 690 V
  • Overload release current setting
    500 ... 1250 A
  • Adjustment range undelayed short-circuit release
    7000 ... 15000 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Number of poles
    4
  • Type of control element
    Toggle
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP40

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 6 pcs.
Weight (kg) 32,000 39,000 257,000
Width (m) 0,280 0,395 0,800
Length (m) 0,191 0,290 1,050
Depth (m) 0,570 0,625 1,200
