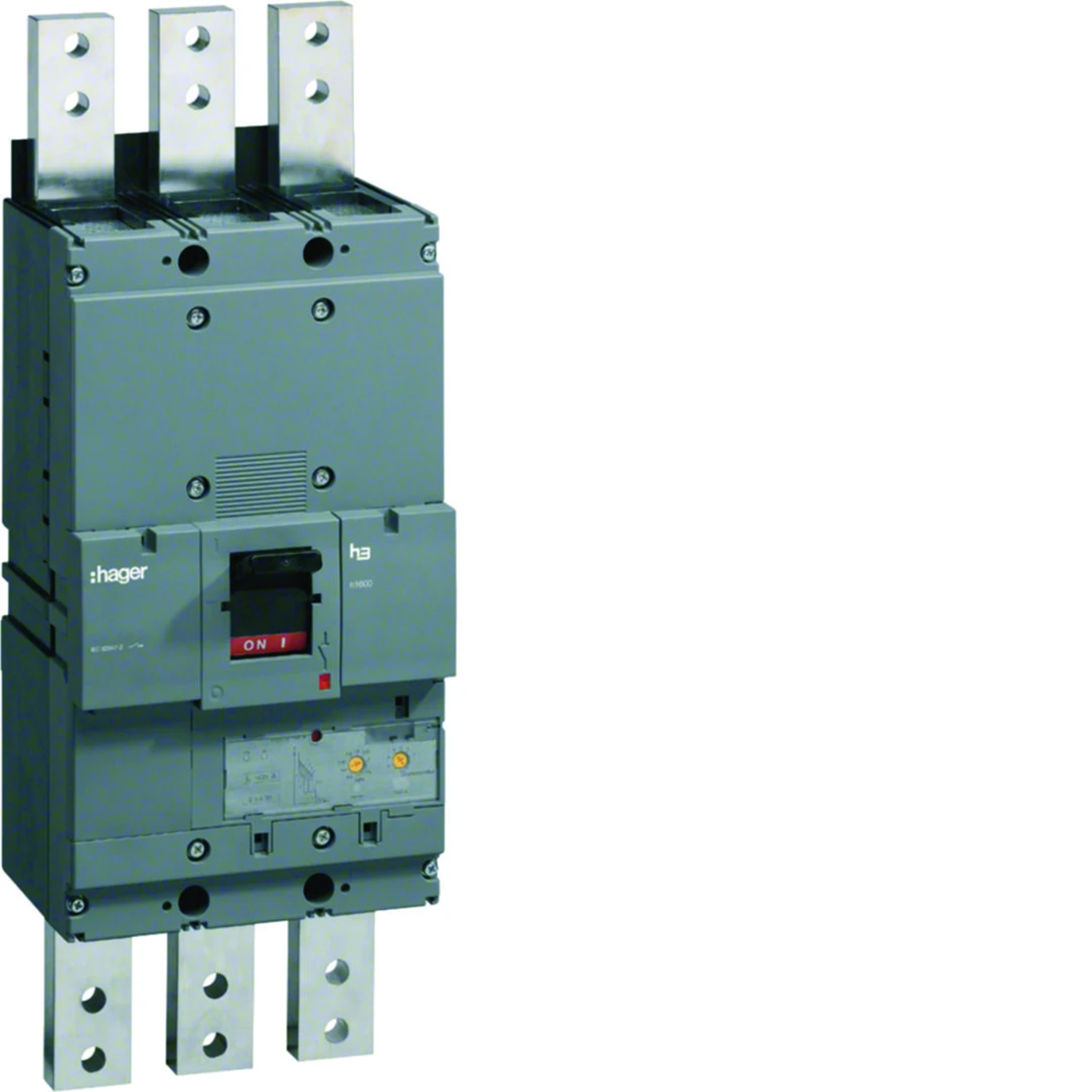

Power circuit breaker h1600 3P 70kA 1600A LSI HEF990H
Index local:
ALM078HAGE
Numéro de catalogue:
HEF990H
Code EAN:
3250613349943
Prix:
26 704,90 zł
gross / pcs.
(y compris la TVA 23%)
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Description du produit
Données techniques
Détails du fabricant
Emballage en vrac
Fichiers à télécharger
Description du produit
Power switch is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice. Various connection possibilities and a wide range of equipment allow for the implementation of non-standard solutions on the implemented objects without much effort.
- size h1600,
- the trigger unit is LSI, < li>1600A.
Données techniques
-
Rated frequency [Hz]60
-
Tightening torque [Nm]65
-
Rated current [A]1600
-
power loss [W]168.9
-
Connection typeVice
-
Mechanical durability (number of cycles)4000
-
Rated switching voltage [V]220/690
-
Reaction time when opening [ms]10
-
Ultimate short-circuit breaking capacity Icu for 230V [kA]100
-
Ultimate short-circuit breaking capacity Icu for 400V [kA]70
-
Ultimate short-circuit breaking capacity Icu for 440V [kA]70
-
Ultimate short-circuit breaking capacity per pole for 400V [kA]9
-
Electromagnetic release setting2.5/5/10
-
trigger modeLSI
-
Rated current correction factor for 3 devices installed side by side1
-
Wire cross-section (cord) [mm²]3 x 240
-
PKWIU27.12.22.0
-
Number of poles3
-
Rated insulation voltage [V]800
-
Level of securityIP4X
-
Power loss per pole [W]56.3
-
Electrical endurance (number of cycles)1000
-
Operating temperature range [°C]from -25 to 70
-
Number of modules12
-
The setpoint triggers the thermal0.4/0.5/0.63/0.8/0.9/0.95/1
-
Ultimate short-circuit breaking capacity Icu for 240V [kA]100
-
Ultimate short-circuit breaking capacity Icu for 415V [kA]70
-
Short-circuit breaking capacity limit per pole for 230V [kA]60
-
Service short-circuit breaking capacity Ics [%]71
-
storage temperature [°C]from -35 to 70
-
Rated current correction factor for 2 devices installed side by side1
-
Rated surge voltage [V]8000
-
Conductor cross-section (wire) [mm²]3 x 240
Autres données techniques
-
Rated permanent current Iu1600 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalNo
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
-
Rated voltage220 ... 690 V
-
Overload release current setting640 ... 1600 A
-
Adjustment range undelayed short-circuit release8960 ... 19200 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Number of poles3
-
Type of control elementToggle
-
Motor drive integratedNo
-
Degree of protection (IP)IP40
Détails du fabricant
-
ProducteurHager Electro S.A.S.
-
AdresseFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Emballage en vrac
| Une sorte de paquet | Karton | Paleta | Karton | Paleta |
| Quantité | 1 pcs. | 8 pcs. | 1 pcs. | 8 pcs. |
| poids (kg) | 30,095 | 263,760 | 30,095 | 263,760 |
| Largeur (m) | 0,330 | 0,800 | 0,330 | 0,800 |
| Longueur (m) | 0,290 | 1,050 | 0,290 | 1,050 |
| Profondeur (m) | 0,620 | 1,200 | 0,620 | 1,200 |
