el12 Automation Circuit breakers, disconnectors Switches above 160A Power circuit breaker h1000 3P 70kA 1000A LSI

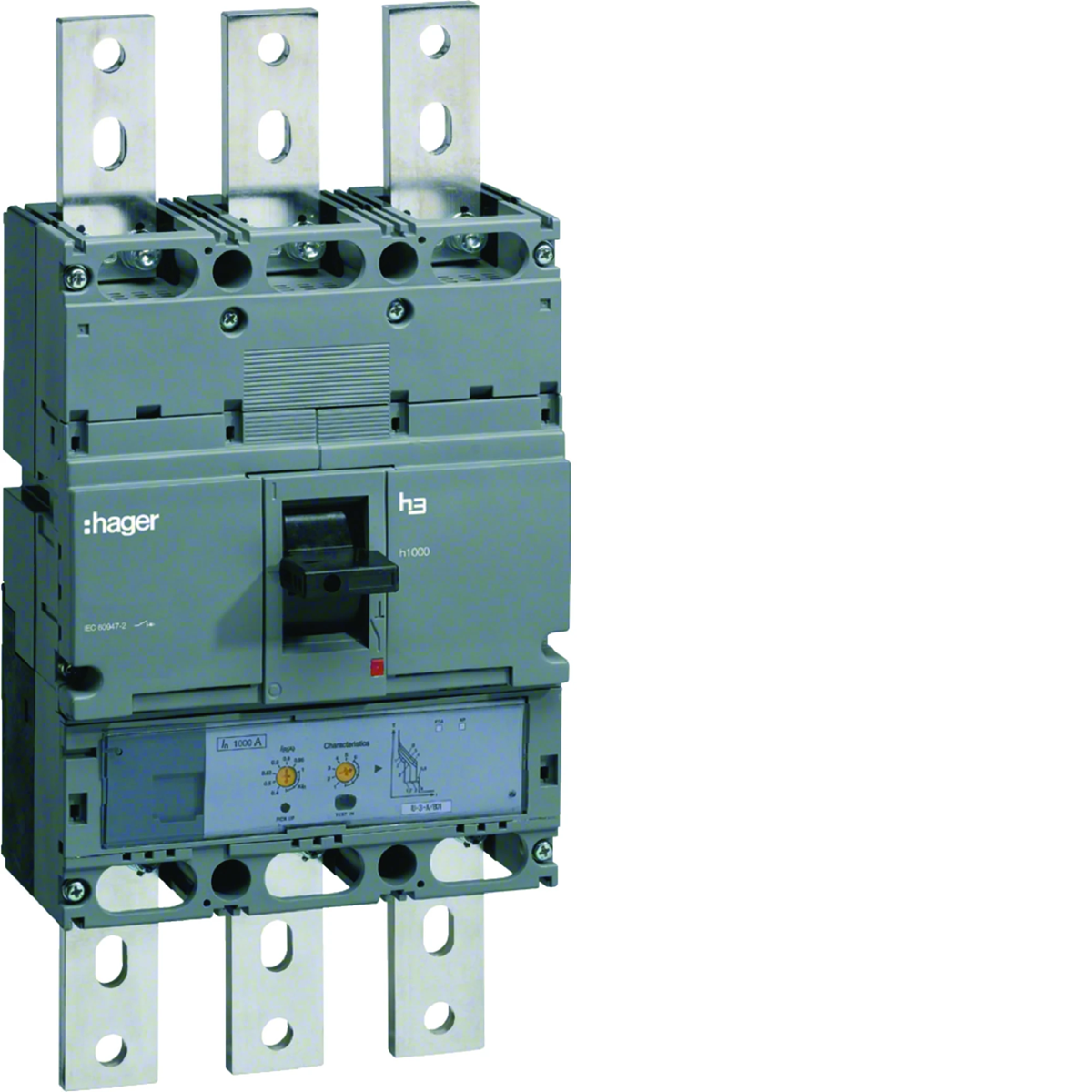

Power circuit breaker h1000 3P 70kA 1000A LSI

Click on the photo to enlarge

Power circuit breaker h1000 3P 70kA 1000A LSI
HAGER

Power circuit breaker h1000 3P 70kA 1000A LSI HEE970H

local index:
ALM074HAGE
Catalog No:
HEE970H
EAN code:
3250613349783
Price:
3492,95 €
gross / pcs.
including VAT 23%
Availability:
up to 10 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Power switch is a perfectly adapted device to meet the current requirements resulting from everyday electrical installation practice. Various connection possibilities and a wide range of equipment allow for the implementation of non-standard solutions on the implemented objects without much effort.

  • size h1000,
  • the trigger unit is LSI,
    • < li>1000A.
Print the product sheet Report an error

Technical data

  • Rated frequency [Hz]
    60
  • Tightening torque [Nm]
    65
  • Rated current [A]
    1000
  • power loss [W]
    186
  • Connection type
    Vice
  • Mechanical durability (number of cycles)
    4000
  • Rated switching voltage [V]
    220/690
  • Reaction time when opening [ms]
    10
  • Ultimate short-circuit breaking capacity Icu for 230V [kA]
    100
  • Ultimate short-circuit breaking capacity Icu for 400V [kA]
    70
  • Ultimate short-circuit breaking capacity Icu for 440V [kA]
    65
  • Ultimate short-circuit breaking capacity per pole for 400V [kA]
    9
  • Electromagnetic release setting
    2.5/5/8
  • trigger mode
    LSI
  • Rated current correction factor for 3 devices installed side by side
    1
  • Wire cross-section (cord) [mm²]
    2 x 240
  • Number of poles
    3
  • Rated insulation voltage [V]
    800
  • Level of security
    IP4X
  • Power loss per pole [W]
    62
  • Electrical endurance (number of cycles)
    1000
  • Operating temperature range [°C]
    from -25 to 70
  • Number of modules
    12
  • The setpoint triggers the thermal
    0.4/0.5/0.63/0.8/0.9/0.95/1
  • Ultimate short-circuit breaking capacity Icu for 240V [kA]
    100
  • Ultimate short-circuit breaking capacity Icu for 415V [kA]
    70
  • Short-circuit breaking capacity limit per pole for 230V [kA]
    60
  • Service short-circuit breaking capacity Ics [%]
    71
  • storage temperature [°C]
    from -35 to 70
  • Rated current correction factor for 2 devices installed side by side
    1
  • Rated surge voltage [V]
    8000
  • Conductor cross-section (wire) [mm²]
    2 x 240

Other technical data

  • Rated permanent current Iu
    1000 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    70 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    no
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    no
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    no
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    yes
  • Motor drive optional
    yes
  • Rated voltage
    220 ... 690 V
  • Overload release current setting
    400 ... 1000 A
  • Adjustment range undelayed short-circuit release
    5600 ... 10000 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    no
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Number of poles
    3
  • Type of control element
    Toggle
  • Motor drive integrated
    no
  • Degree of protection (IP)
    IP40
