Power circuit breaker DPX3 160+BL.R 4P 160A 25KA 420077

Index local:

ALP132LEGR

Numéro de catalogue:

420077

Code EAN:

3245064200776

Power circuit breaker DPX3 160+BL.R 4P 160A 25KA

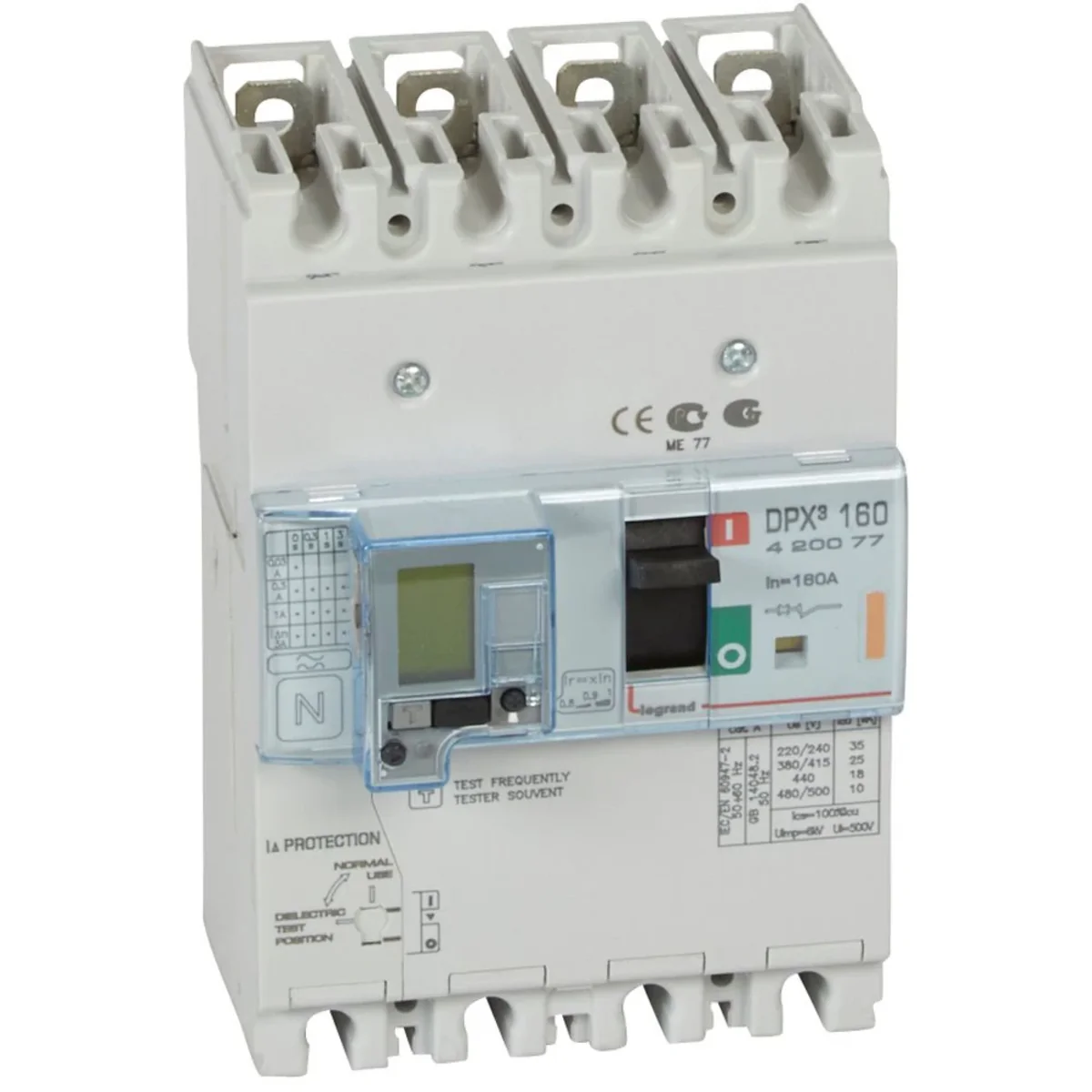

Cliquer sur la photo pour l'agrandir

Producteur: LEGRAND

Level of security: IP30

Voir la description complète

5 195

zł

gross / pcs. (y compris la TVA 23%)

Dostępne jusqu'à 2 semaines

Sur commande

Choisissez votre grossiste

Sélectionner

Quantité pcs. (plusieurs: 1 )

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Circuit breakers from 16 to 160 A
For mounting on a TH 35 bracket or plates in XL3 cabinets and enclosures
Breakers capable of isolating.
Supplied with flat screw terminals max. 70 mm2 (strings) or max. 95 mm2 (wire)
Adjusted for installation of auxiliary equipment DPX3
Compliant with the IEC 60947-2 standard

DPX3 160 with built-in residual current protection - stationary design
Overload release - thermal adjustable from 0.8 to 1 In
Electromagnetic setting fixed at 10 In (400 A for In 16 A and 25 A)
Equipped with residual current device with LCD screen
Short circuit capacity Icu 25 kA (400 V~)
Rated residual current adjustable: 0.03 - 0.3 - 1 - 3 A
Off delay time adjustable: 0 - 0.3 - 1 - 3s (With residual current = 0.03 A one option - 0s)
Number of poles: 4
Rated current: 160 A

Données techniques

Level of security

IP30

PKWIU

27.12.22.0

Autres données techniques

Rated permanent current Iu

160 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

25 kA
Adjustment range short-term delayed short-circuit release

1600 ... 1600 A
Device construction

Built-in device fixed built-in technique
Type of electrical connection of main circuit

Screw connection
DIN rail (top hat rail) mounting optional

Yes
Number of auxiliary contacts as change-over contact

1
With integrated under voltage release

Yes
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Rated voltage

220 ... 690 V
Overload release current setting

128 ... 160 A
Adjustment range undelayed short-circuit release

1600 ... 1600 A
Integrated earth fault protection

Yes
Suitable for DIN rail (top hat rail) mounting

Yes
Number of auxiliary contacts as normally closed contact

1
With switched-off indicator

Yes
Number of poles

4
Type of control element

Toggle
Motor drive integrated

No
Degree of protection (IP)

IP30

Détails du fabricant

Producteur

Legrand Polska Sp. z o.o.
Adresse

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Emballage en vrac

Une sorte de paquet	CT	PF
Quantité	1 pcs.	48 pcs.
poids (kg)	1,634	78,432
Volume (m3)	0,003	0,324
Largeur (m)	0,120	1,200
Longueur (m)	0,115	0,270
Profondeur (m)	0,205	1,000
