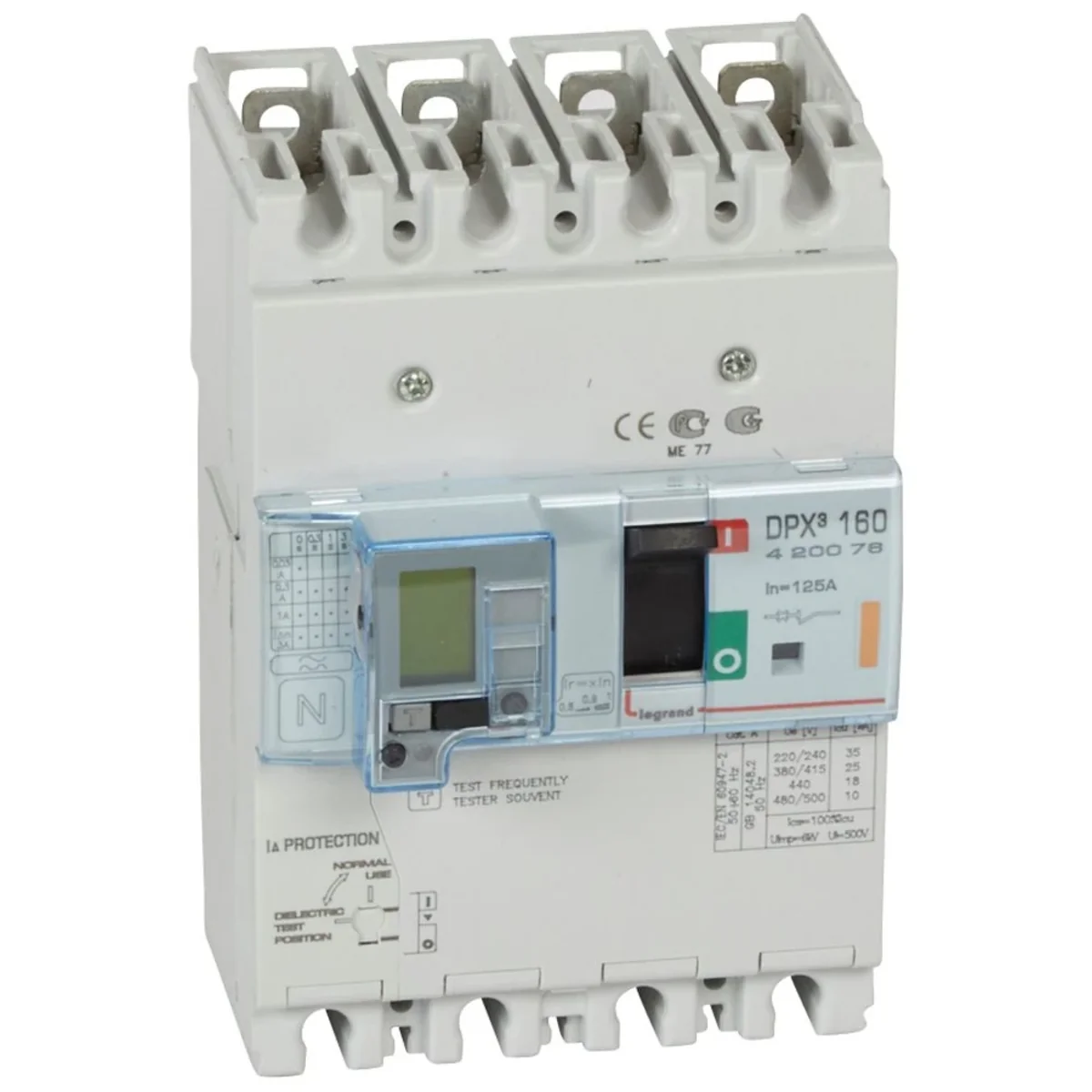

Power circuit breaker DPX3 160+BL.R 4P 125A 25KA 420076
Lokaler Index:
ALP022LEGR
Katalognummer:
420076
EAN-Code:
3245064200769
Hersteller:
LEGRAND
Level of security: IP30
4 956
16
zł
gross / stk.
(inklusive MwSt 23%)
Verfügbarkeit
Dostępne bis zu 2 Wochen
Auf Bestellung
Dostępność w oddziale
Wählen Sie Ihren Großhändler
Wählen Sie
Menge stk.
(mehrere:
1
)
Produktbeschreibung
Circuit breakers from 16 to 160 A
For mounting on a TH 35 bracket or plates in XL3 cabinets and enclosures
Breakers capable of isolating.
Supplied with flat screw terminals max. 70 mm2 (strings) or max. 95 mm2 (wire)
Adjusted for installation of auxiliary equipment DPX3
Compliant with the IEC 60947-2 standard
DPX3 160 with built-in residual current protection - stationary design
Overload release - thermal adjustable from 0.8 to 1 In
Electromagnetic setting fixed at 10 In (400 A for In 16 A and 25 A)
Equipped with residual current device with LCD screen
Short circuit capacity Icu 25 kA (400 V~)
Rated residual current adjustable: 0.03 - 0.3 - 1 - 3 A
Off delay time adjustable: 0 - 0.3 - 1 - 3s (With residual current = 0.03 A one option - 0s)
Number of poles: 4
Rated current: 125 A
For mounting on a TH 35 bracket or plates in XL3 cabinets and enclosures
Breakers capable of isolating.
Supplied with flat screw terminals max. 70 mm2 (strings) or max. 95 mm2 (wire)
Adjusted for installation of auxiliary equipment DPX3
Compliant with the IEC 60947-2 standard
DPX3 160 with built-in residual current protection - stationary design
Overload release - thermal adjustable from 0.8 to 1 In
Electromagnetic setting fixed at 10 In (400 A for In 16 A and 25 A)
Equipped with residual current device with LCD screen
Short circuit capacity Icu 25 kA (400 V~)
Rated residual current adjustable: 0.03 - 0.3 - 1 - 3 A
Off delay time adjustable: 0 - 0.3 - 1 - 3s (With residual current = 0.03 A one option - 0s)
Number of poles: 4
Rated current: 125 A
Technische Daten
-
Level of securityIP30
-
PKWIU27.12.22.0
Weitere technische Daten
-
Rated permanent current Iu125 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz25 kA
-
Adjustment range short-term delayed short-circuit release1250 ... 1250 A
-
Device constructionBuilt-in device fixed built-in technique
-
Type of electrical connection of main circuitScrew connection
-
DIN rail (top hat rail) mounting optionalYes
-
Number of auxiliary contacts as change-over contact1
-
With integrated under voltage releaseYes
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
-
Rated voltage220 ... 690 V
-
Overload release current setting100 ... 125 A
-
Adjustment range undelayed short-circuit release1250 ... 1250 A
-
Integrated earth fault protectionYes
-
Suitable for DIN rail (top hat rail) mountingYes
-
Number of auxiliary contacts as normally closed contact1
-
With switched-off indicatorYes
-
Number of poles4
-
Type of control elementToggle
-
Motor drive integratedNo
-
Degree of protection (IP)IP30
Hersteller-Details
-
HerstellerLegrand Polska Sp. z o.o.
-
Adresse57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Paleta |
| Menge | 1 stk. | 48 stk. |
| Gewicht (kg) | 1,805 | 86,640 |
| Volumen (m3) | 0,003 | 0,516 |
| Breite (m) | 0,120 | 1,200 |
| Länge (m) | 0,115 | 0,430 |
| Tiefe (m) | 0,205 | 1,000 |
