Power circuit breaker DPX3 160 4P 160A 16KA 420017

Name: Power circuit breaker DPX3 160 4P 160A 16KA
Brand: LEGRAND
SKU: ALP016LEGR
Price: 1918.30 PLN
Availability: BackOrder

Lokaler Index:

ALP016LEGR

Katalognummer:

420017

EAN-Code:

3245064200172

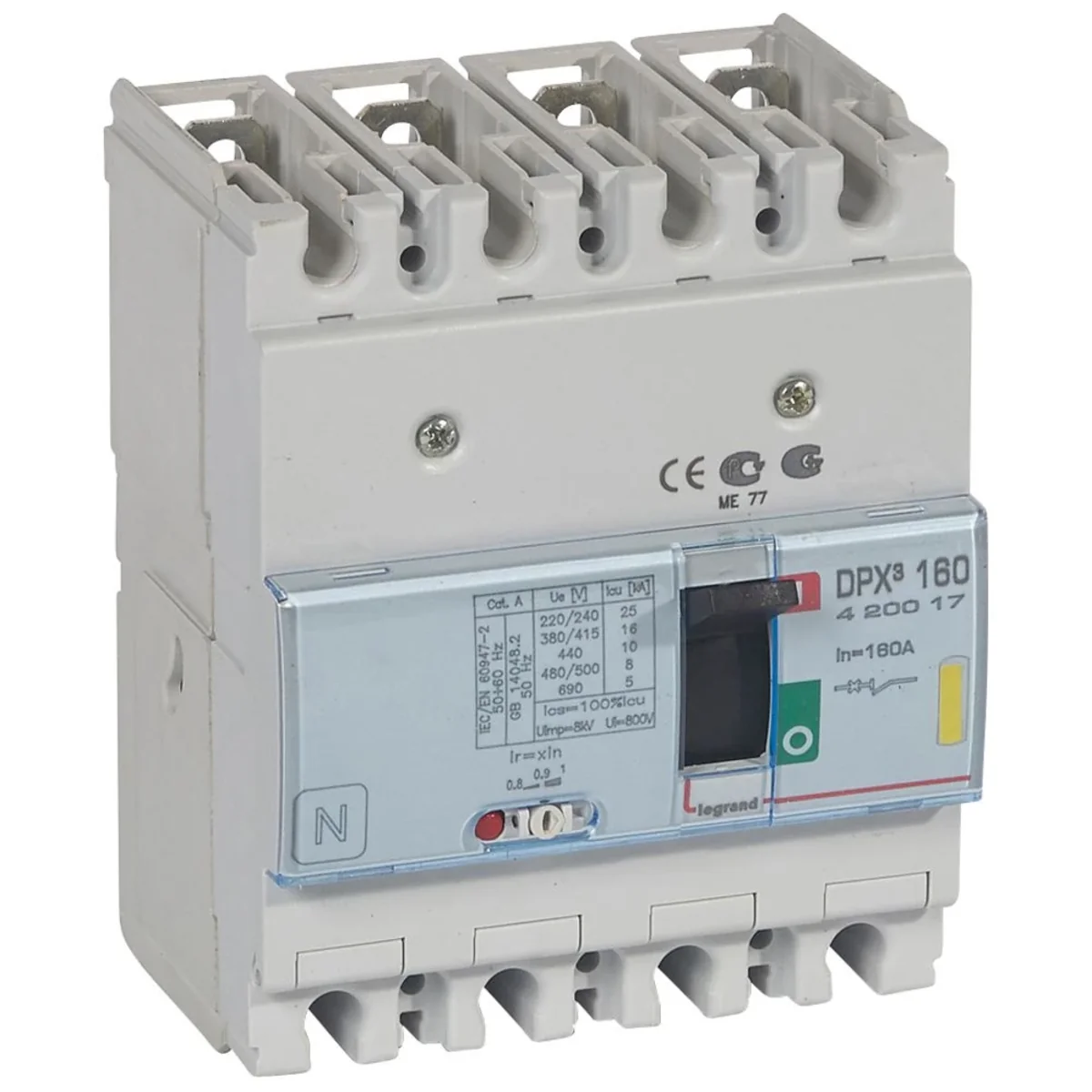

Power circuit breaker DPX3 160 4P 160A 16KA

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: LEGRAND

Level of security: IP30

Siehe vollständige Beschreibung

Preis:

1 918,30 zł

gross / stk.

(inklusive MwSt 23%)

bis zu 2 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Circuit breakers from 16 to 160 A
For mounting on a TH 35 bracket or plates in XL3 cabinets and enclosures
Breakers capable of isolating.
Supplied with flat screw terminals max. 70 mm2 (strings) or max. 95 mm2 (wire)
Adjusted for installation of auxiliary equipment DPX3
Compliant with IEC 60947-2

DPX3 160 - stationary version
Overload release - thermal adjustable from 0.8 to 1 In
Electromagnetic setting fixed at 10 In (equivalent to 400 A for In 16 A and 25 A)
Short-circuit breaking capacity Icu 16 kA (400 V~)
Number of poles: 4
Rated current: 160 A

Technische Daten

Level of security

IP30

PKWIU

27.12.22.0

Weitere technische Daten

Rated permanent current Iu

160 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

16 kA
Adjustment range short-term delayed short-circuit release

1600 ... 1600 A
Device construction

Built-in device fixed built-in technique
Type of electrical connection of main circuit

Screw connection
DIN rail (top hat rail) mounting optional

Yes
Number of auxiliary contacts as change-over contact

1
With integrated under voltage release

Yes
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Rated voltage

220 ... 690 V
Overload release current setting

128 ... 160 A
Adjustment range undelayed short-circuit release

1600 ... 1600 A
Integrated earth fault protection

No
Suitable for DIN rail (top hat rail) mounting

Yes
Number of auxiliary contacts as normally closed contact

1
With switched-off indicator

Yes
Number of poles

4
Type of control element

Toggle
Motor drive integrated

No
Degree of protection (IP)

IP30

Hersteller-Details

Hersteller

Legrand Polska Sp. z o.o.
Adresse

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-Mail

info@legrand.com.pl

Großpackungen

Eine Art Paket	Karton	Paleta
Menge	1 stk.	100 stk.
Gewicht (kg)	1,497	149,700
Volumen (m3)	0,003	0,456
Breite (m)	0,125	1,200
Länge (m)	0,115	0,380
Tiefe (m)	0,185	1,000
