Power circuit breaker DPX3 160 3P 63A 50KA 420123

Index local:

ALP008LEGR

Numéro de catalogue:

420123

Code EAN:

3245064201230

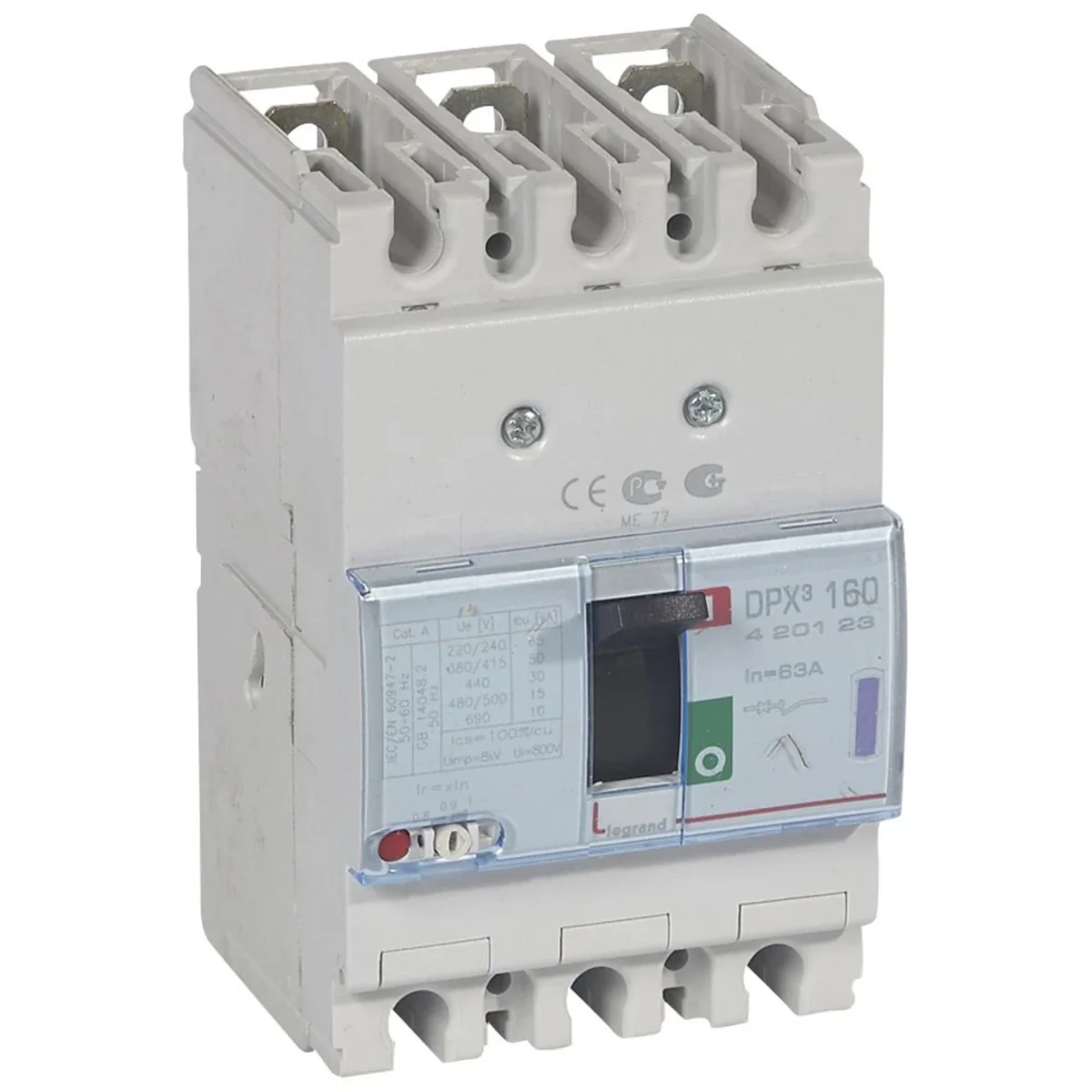

Power circuit breaker DPX3 160 3P 63A 50KA

Cliquer sur la photo pour l'agrandir

Producteur: LEGRAND

Level of security: IP30

Voir la description complète

Prix:

1 143,88 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 2 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Circuit breakers from 16 to 160 A
For mounting on a TH 35 bracket or plates in XL3 cabinets and enclosures
Breakers capable of isolating.
Supplied with flat screw terminals max. 70 mm2 (strings) or max. 95 mm2 (wire)
Adjusted for installation of auxiliary equipment DPX3
Compliant with IEC 60947-2

DPX3 160 - stationary version
Overload release - thermal adjustable from 0.8 to 1 In
Electromagnetic setting fixed at 10 In (equivalent to 400 A for In 16 A and 25 A)
Short-circuit breaking capacity Icu 50 kA (400 V~)
Number of poles: 3
Rated current: 63 A

Données techniques

Level of security

IP30

PKWIU

27.12.22.0

Autres données techniques

Rated permanent current Iu

63 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

50 kA
Adjustment range short-term delayed short-circuit release

630 ... 630 A
Device construction

Built-in device fixed built-in technique
Type of electrical connection of main circuit

Screw connection
DIN rail (top hat rail) mounting optional

Yes
Number of auxiliary contacts as change-over contact

1
With integrated under voltage release

Yes
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Rated voltage

220 ... 690 V
Overload release current setting

50.4 ... 63 A
Adjustment range undelayed short-circuit release

630 ... 630 A
Integrated earth fault protection

No
Suitable for DIN rail (top hat rail) mounting

Yes
Number of auxiliary contacts as normally closed contact

1
With switched-off indicator

Yes
Number of poles

3
Type of control element

Toggle
Motor drive integrated

No
Degree of protection (IP)

IP30

Détails du fabricant

Producteur

Legrand Polska Sp. z o.o.
Adresse

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Emballage en vrac

Une sorte de paquet	CT	PF
Quantité	1 pcs.	110 pcs.
poids (kg)	1,130	124,300
Volume (m3)	0,002	0,516
Largeur (m)	0,110	1,200
Longueur (m)	0,110	0,430
Profondeur (m)	0,185	1,000
