Power circuit breaker DPX3 160 3P 160A 16KA 420007

Indeks lokalny:

ALP026LEGR

Numer katalogowy:

420007

Kod EAN:

3245064200073

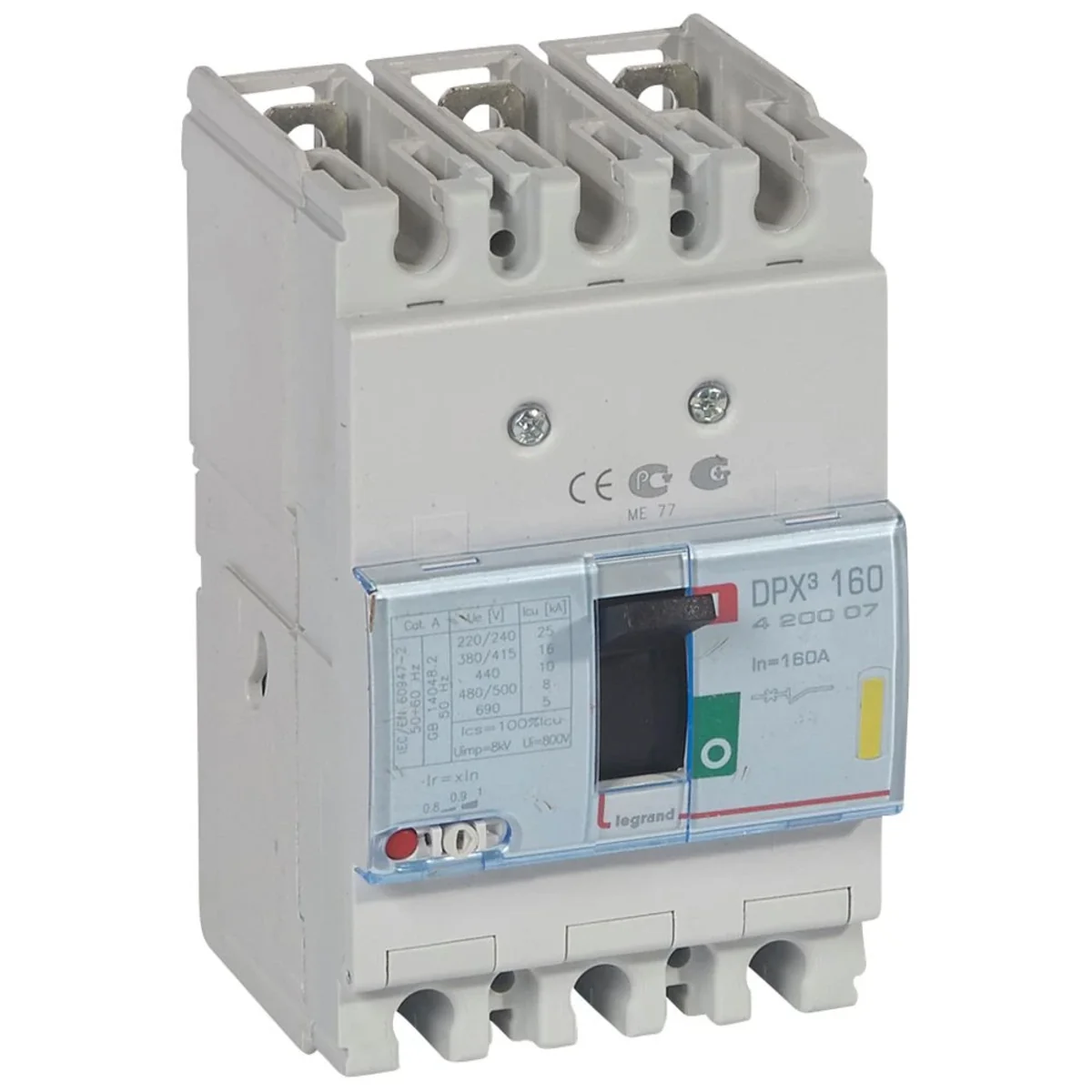

Power circuit breaker DPX3 160 3P 160A 16KA

Kliknij zdjęcie, aby powiększyć

Producent: LEGRAND

Level of security: IP30

Zobacz cały opis

Cena:

1 005,23 zł

gross / szt.

(w tym VAT 23%)

do 2 tygodni

Na zamówienie

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Power Circuit Breakers from 16 to 160 A
For mounting on TH 35 bracket or plates in XL3 cabinets and enclosures
Breakers capable of isolating.
Supplied with flat screw terminals max. 70 mm2 (strings) or max. 95 mm2 (wire)
Adjusted for installation of DPX3 accessories
Compliant with IEC 60947-2

DPX3 160 - stationary version
Overload release - thermal adjustable from 0.8 to 1 In
Electromagnetic setting fixed at 10 In (equivalent to 400 A for In 16 A and 25 A)
Short-circuit breaking capacity Icu 16 kA (400 V~)
Number of poles: 3
Rated current: 160 A

Dane techniczne

Level of security

IP30

PKWIU

27.12.22.0

Pozostałe dane techniczne

Rated permanent current Iu

160 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

16 kA
Adjustment range short-term delayed short-circuit release

1600 ... 1600 A
Device construction

Built-in device fixed built-in technique
Type of electrical connection of main circuit

Screw connection
DIN rail (top hat rail) mounting optional

Yes
Number of auxiliary contacts as change-over contact

1
With integrated under voltage release

Yes
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Rated voltage

220 ... 690 V
Overload release current setting

128 ... 160 A
Adjustment range undelayed short-circuit release

1600 ... 1600 A
Integrated earth fault protection

No
Suitable for DIN rail (top hat rail) mounting

Yes
Number of auxiliary contacts as normally closed contact

1
With switched-off indicator

Yes
Number of poles

3
Type of control element

Toggle
Motor drive integrated

No
Degree of protection (IP)

IP30

Dane producenta

Producent

Legrand Polska Sp. z o.o.
Adres

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
Email

info@legrand.com.pl

Opakowania zbiorcze

Rodzaj opakowania	Karton	Paleta
Ilość	1 szt.	280 szt.
Waga (kg)	1,140	319,200
Objętość (m3)	0,002	0,864
Szerokość (m)	0,115	1,200
Długość (m)	0,115	0,720
Głębokość (m)	0,185	1,000
