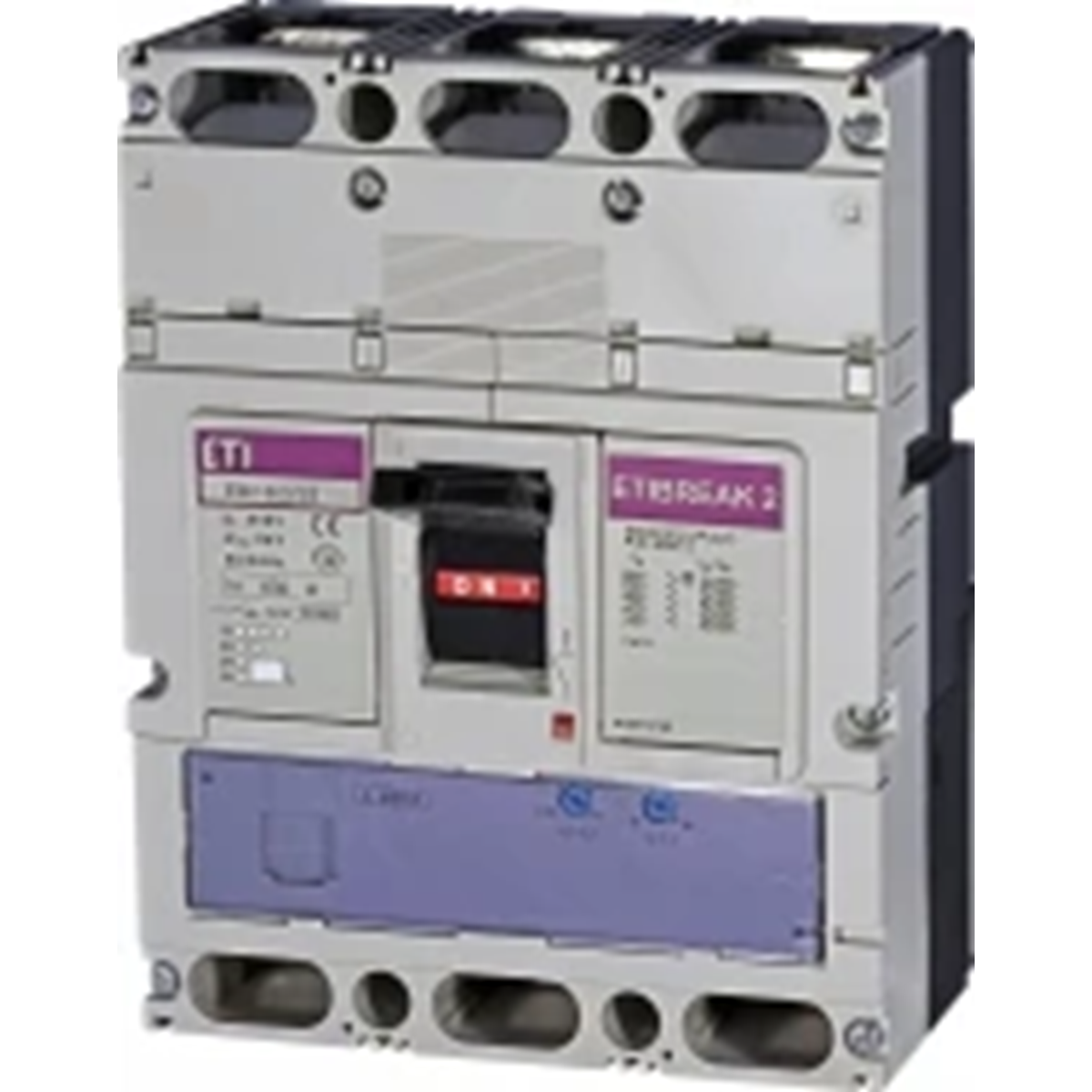

Power circuit breaker 3P, 50kA EB2 800/3S 630A 004672160

local index:
ALI011ETIP
Catalog No:
004672160
EAN code:
3838895664802
Manufacturer: ETI POLAM
Number of poles: 3
Rated current [A]: 630
Short-circuit current [kA]: 50
Price:
1006,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

MCCBs are used to connect circuits and protect power cables and wires, motors and electrical apparatus against the effects of overloads and short circuits. A wide range of accessories is also offered –current releases, undervoltage releases, remote control

Devices available in the range from 20A to 1600A in 3 and 4 pole versions.

Advantages:

  •  compact casing, mechanically durable,
  •  small dimensions,
  •  large range of available accessoriesó,
  • < li> very easy assembly of internal and external accessories,
  •  internal accessories common for the entire series up to 1600A,
  •  high short-circuit capacity,
  •  quick shut-off mechanism,
  •  high safety ensured by the Safety + system in accordance with the IEC 60204-1 standard,
  •  can be mounted on a plate like ró also on TH-35 rail (size 125A).

Technical data

  • Number of poles
    3
  • Short-circuit current [kA]
    50
  • Rated current [A]
    630
  • PKWIU
    27.12.22.0

Other technical data

  • Rated permanent current Iu
    630 A
  • Overload release current setting
    396.9 ... 630 A
  • Type of electrical connection of main circuit
    Screw connection
  • With switched-off indicator
    Yes
  • Type of control element
    Rocker lever
  • Motor drive optional
    Yes
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    50 kA
  • Adjustment range undelayed short-circuit release
    3150 ... 6300 A
  • Device construction
    Built-in device fixed built-in technique
  • Number of poles
    3
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP20
