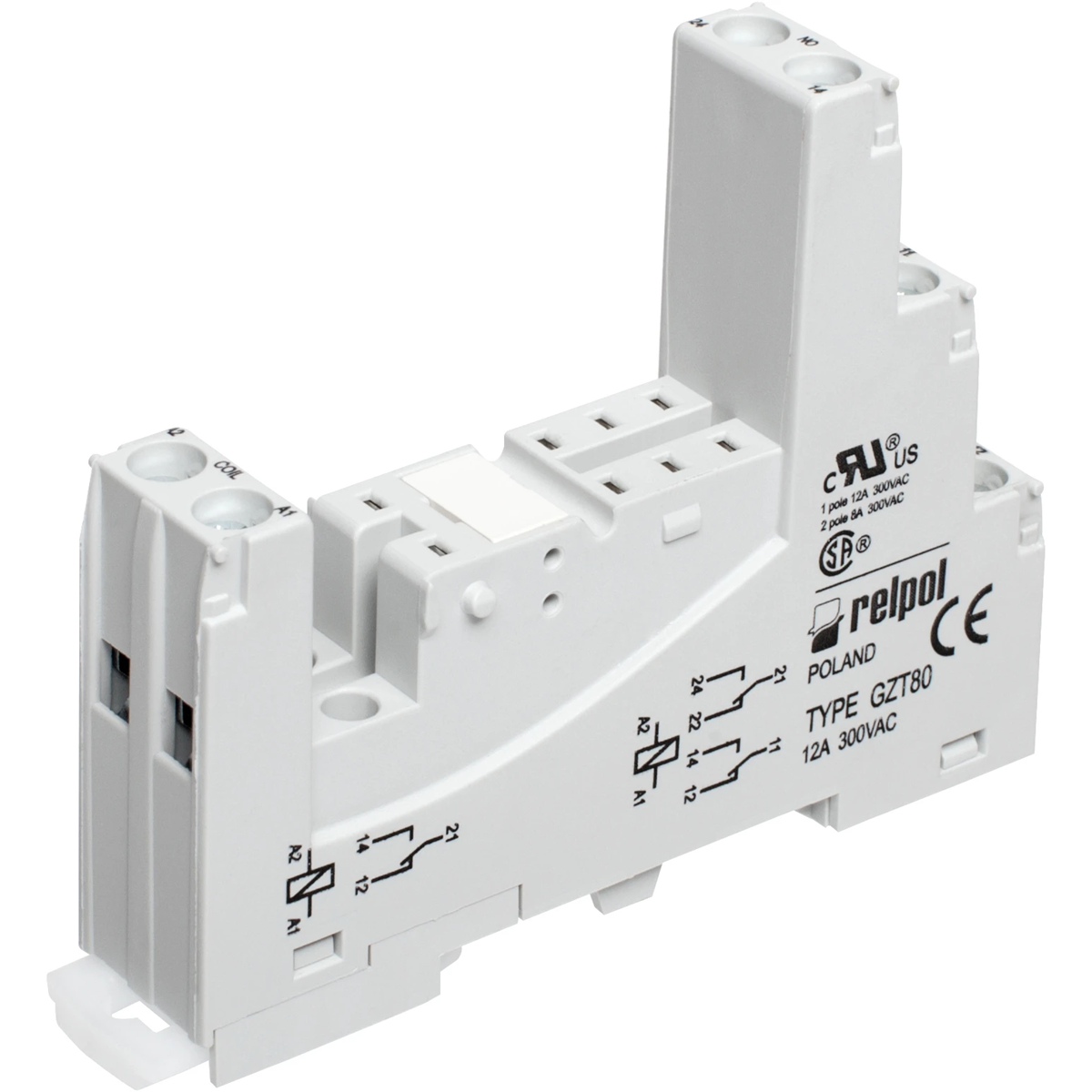

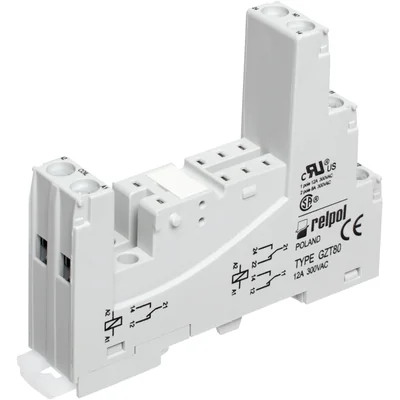

Plug socket GZT80-GRAY for relays RM84 RM85 RM87L RM87P 852612

Socket, for relays RM84, RM85, RM87L, RM87P

Grey color,

width 15, 9 mm.

Separation of circuits - coil terminals on one side, and contact terminals on the opposite side of the socket.

Input / coil - terminals: A1 - A2. Output / contacts - terminals: 11-12-14; 21-22-24; COM terminals on the middle level.

Note: RM85 - the relay creates a galvanic connection between the socket terminals: 11 with 21, 12 with 22, 14 with 24.

RM85 - contact loads above 12 A require bridging of screw terminals: 11 out of 21, 12 out of 22, 14 out of 24.

Track load without bridge: 12 A / 300 V AC.

Mounting on a 35 mm rail or on a mounting plate with one M3 screw.

Dimensions of the set GZT80 + RM8.. + GZT80-0040: 75, 3 x 15, 5 x 67 mm.

Note: for the socket, a clamp type GZT80-0040, the so-called

M... type signaling / surge protection modules can be installed in the socket; Set - IP 20.
