PIR4-048DC-00LD interface relay 855592

local index:
APE546RELP
Catalog No:
855592
EAN code:
5900005165184
Manufacturer: RELPOL
Family: PI | PI6 | PIR6W | PIR6WB | SIR6W | SIR6WB
Price:
19,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

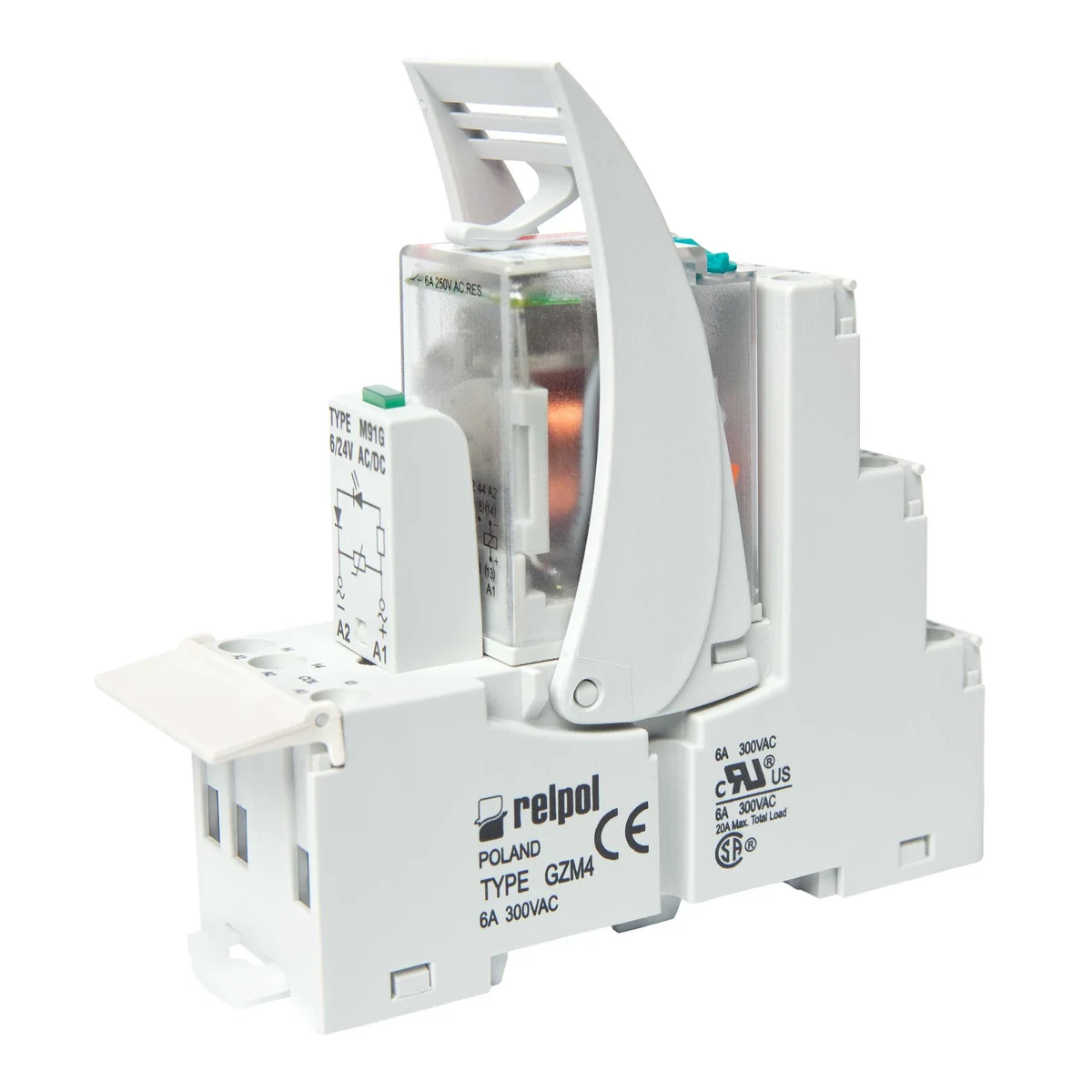

Interface relay: 4P - four changeover contacts. Width 27mm. Circuit separation - input / output. Green LED indicator. Surge suppression diode D. screw terminals. Output: 4P contacts - terminals: 11(9)-12(1)-14(5); 21(10)-22(2)-24(6); 31(11)-32(3)-34(7); 41(12)-42(4)-44(8); AC1 - 6A / 250V; DC1 - 6 A / 24 V. Input - terminals: (+)A1(13) - (-)A2(14), supply voltage Un - 48 V DC. Dimensions: 75x27x82mm. Mounting on a 35 mm rail or on a mounting plate with two M3 screws. The set includes a GZM4 - IP 20 socket.

Technical data

  • Family
    PI PI6 PIR6W PIR6WB SIR6W SIR6WB
