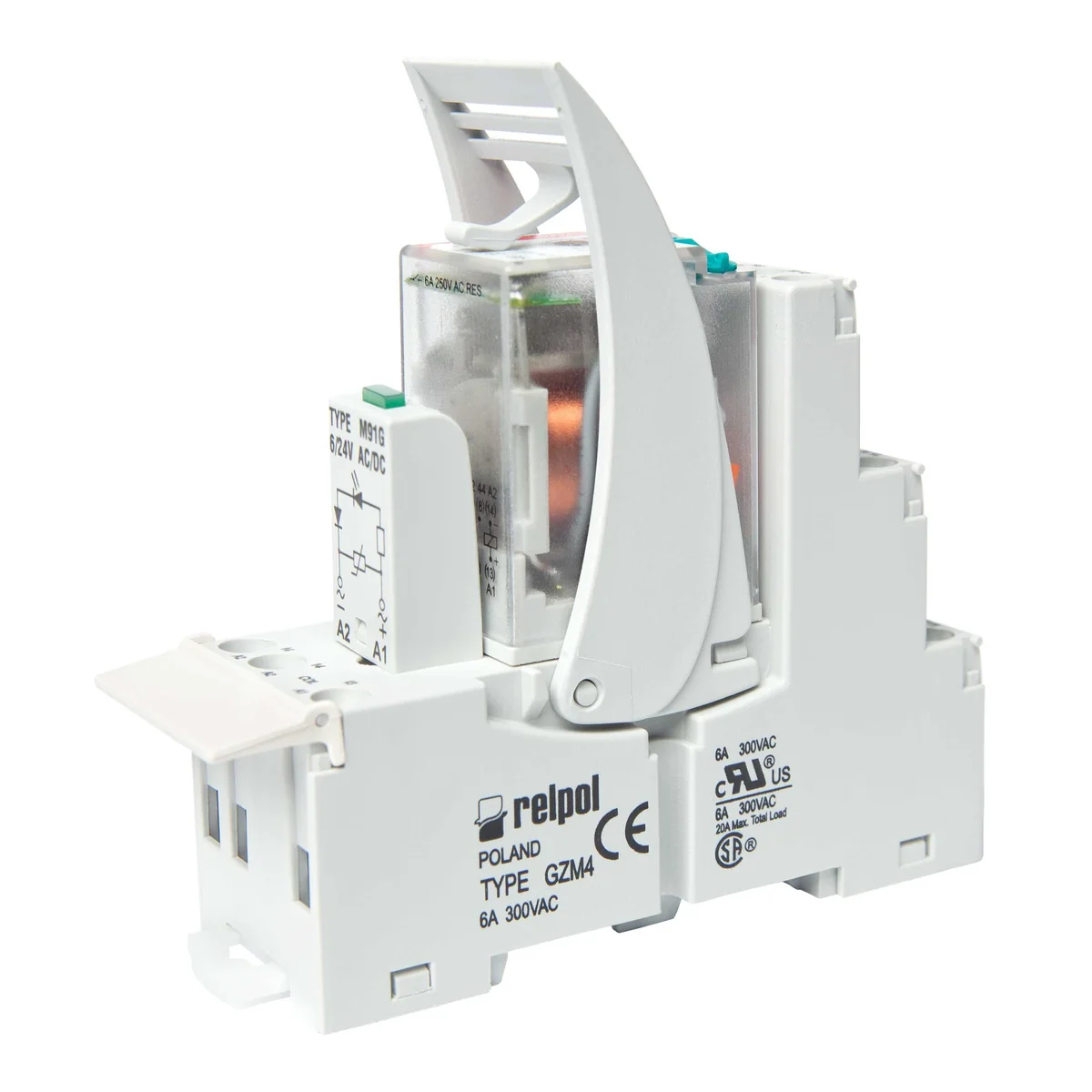

PIR4-024AC-00LV interface relay 854784
local index:
APE126RELP
Catalog No:
854784
EAN code:
5900005105739
Manufacturer:
RELPOL
Level of security: IP20
Price:
18,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Interface relay: 4P - four changeover contacts.
Width 27mm.
Circuit separation - input / output.
LED green indicator.
Varistor suppressing overvoltages.
Screw terminals.
Output: 4P contacts - terminals: 11(9)-12(1)-14(5); 21(10)-22(2)-24(6); 31(11)-32(3)-34(7); 41(12)-42(4)-44(8); AC1 - 6A / 250V; DC1 - 6 A / 24 V.
Input - terminals: (+)A1(13) - (-)A2(14), supply voltage Un - 24 V AC.
Dimensions: 75 x 27 x 82 mm.
Mounting on a 35 mm rail or on a mounting plate with two M3 screws.
The set includes a GZM4 - IP 20 socket.
Width 27mm.
Circuit separation - input / output.
LED green indicator.
Varistor suppressing overvoltages.
Screw terminals.
Output: 4P contacts - terminals: 11(9)-12(1)-14(5); 21(10)-22(2)-24(6); 31(11)-32(3)-34(7); 41(12)-42(4)-44(8); AC1 - 6A / 250V; DC1 - 6 A / 24 V.
Input - terminals: (+)A1(13) - (-)A2(14), supply voltage Un - 24 V AC.
Dimensions: 75 x 27 x 82 mm.
Mounting on a 35 mm rail or on a mounting plate with two M3 screws.
The set includes a GZM4 - IP 20 socket.
Technical data
-
Level of securityIP20
Other technical data
-
Type of electric connectionScrew connection
-
Rated control supply voltage AC 60 Hz24 ... 24 V
-
Voltage type for actuatingAC
-
Drive, switching attitudeMono stable
-
Type of switch contactSingle contact
-
Degree of protection (IP)IP20
-
Height75 mm
-
Rated control supply voltage AC 50 Hz24 ... 24 V
-
Rated control supply voltage DC0 ... 0 V
-
Drive, polarizationPolarity free
-
Number of contacts as change-over contact4
-
Complete with socketYes
-
Width27 mm
-
Depth82 mm
