Phase sequence relay EMR6-F500-G-1 200-500V AC 184789
local index:
APE007MOEL
Catalog No:
184789
EAN code:
4015081788255
Price:
151,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

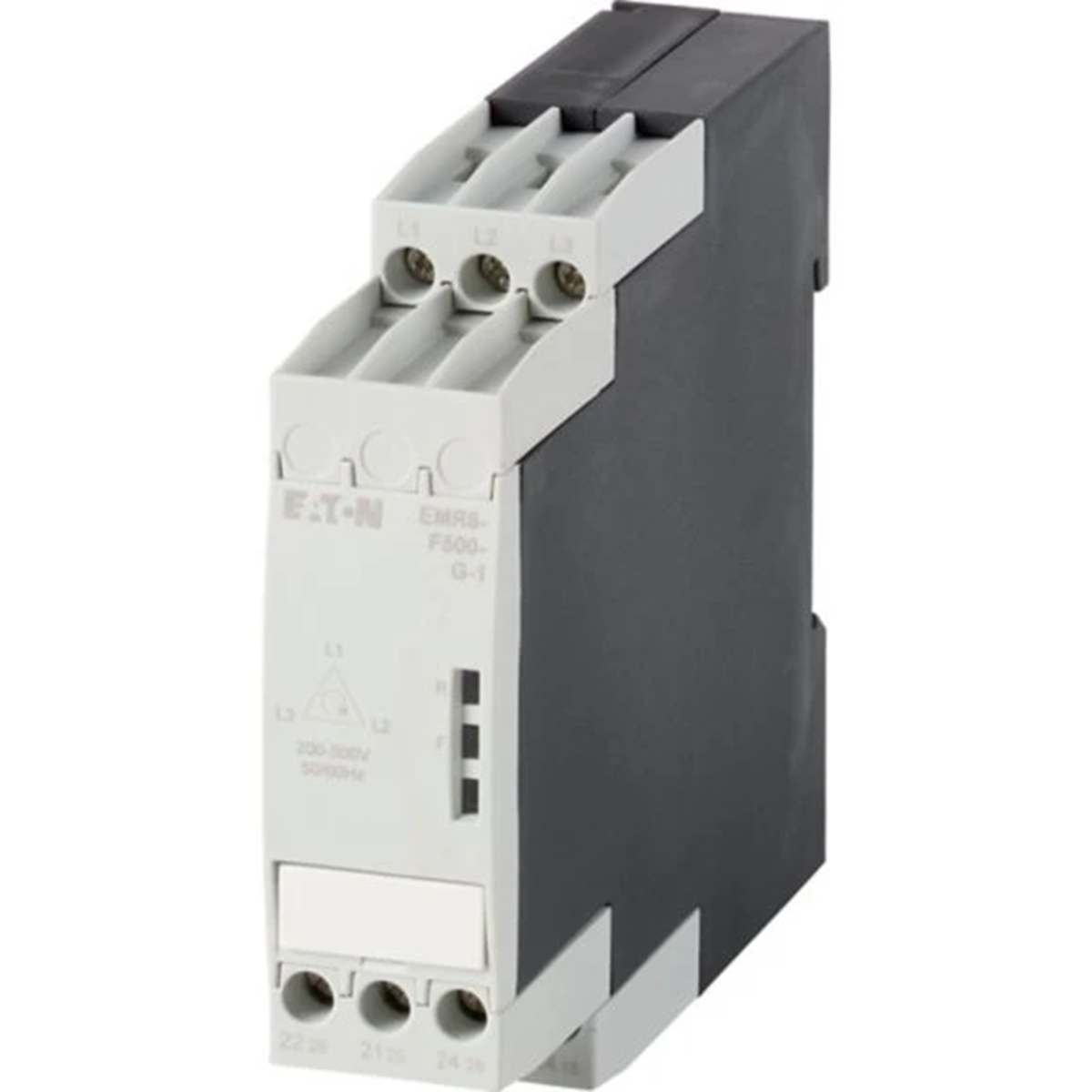

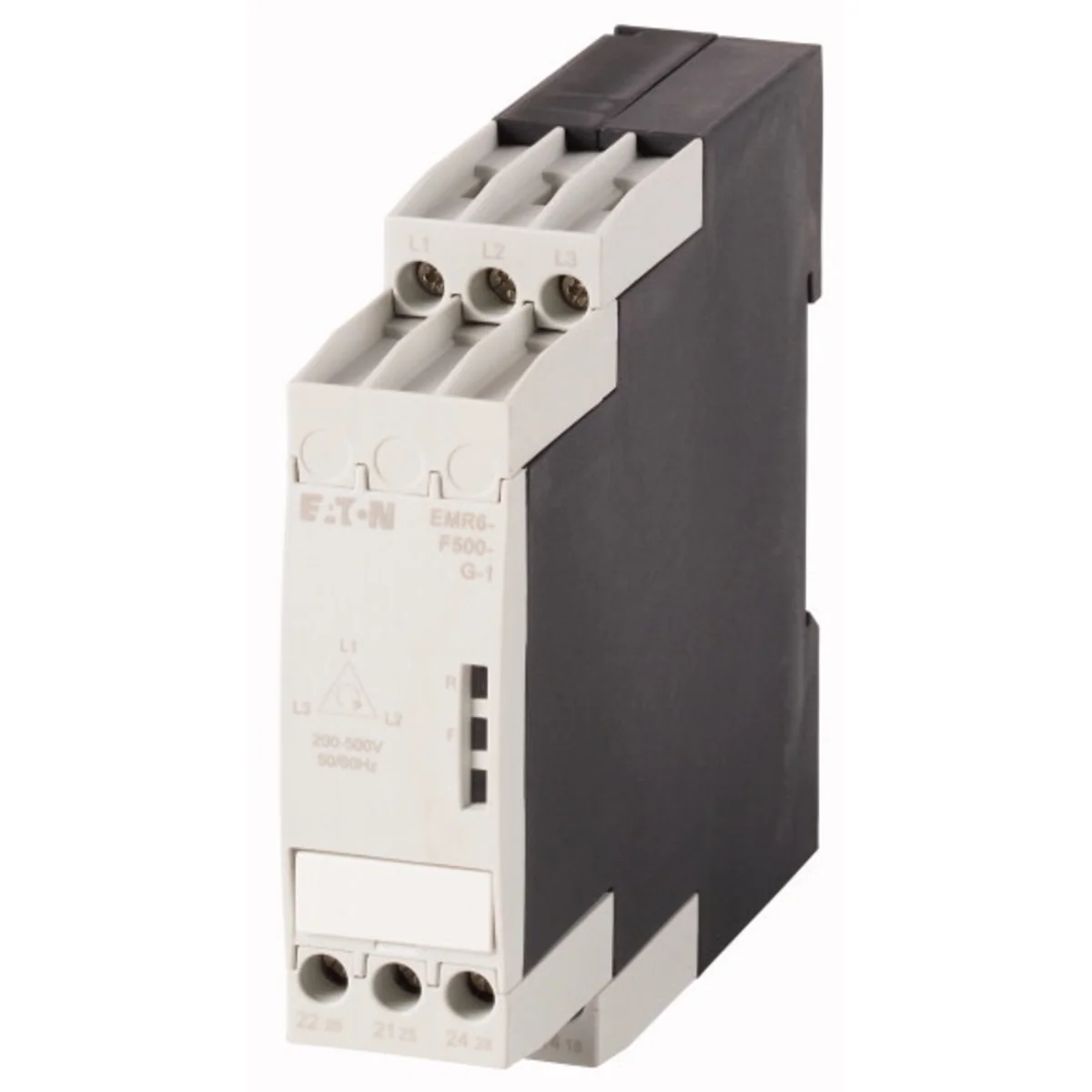

Phase sequence relay EMR6-F500-G-1
Parameters:
- Type of electrical connection: Screw connection < li>Phase voltage monitoring: 200-500 V AC 50/60 Hz
- Input voltage range: 200-500 V AC 50/60 Hz
- Number of changeover contacts: 2
Technical data
-
Depth [mm]100
-
Height [mm]78
-
Width [mm]22.5
Other technical data
-
Type of electric connectionScrew connection
-
Rated control supply voltage AC 50 Hz200 ... 500 V
-
Rated control supply voltage DC0 ... 0 V
-
Phase sequence monitoringYes
-
Function under voltage detectionNo
-
Phase imbalance monitoringNo
-
Min. adjustable delay-on energization time0 s
-
Min. adjustable off-delay time0 s
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact2
-
Height85.6 mm
-
With detachable clampsNo
-
Rated control supply voltage AC 60 Hz200 ... 500 V
-
Voltage type for actuatingAC
-
Phase failure detectionYes
-
Function over voltage detectionNo
-
Voltage measuring range200 ... 500 V
-
Max. permitted delay-on energization time0 s
-
Max. permitted off-delay time0 s
-
Number of contacts as normally open contact0
-
Width22.5 mm
-
Depth103.7 mm
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,160 | 0,163 |
| Volume (m3) | 0,000 | 0,000 |
| Width (m) | 0,023 | 0,100 |
| Length (m) | 0,104 | 0,100 |
| Depth (m) | 0,086 | 0,010 |
