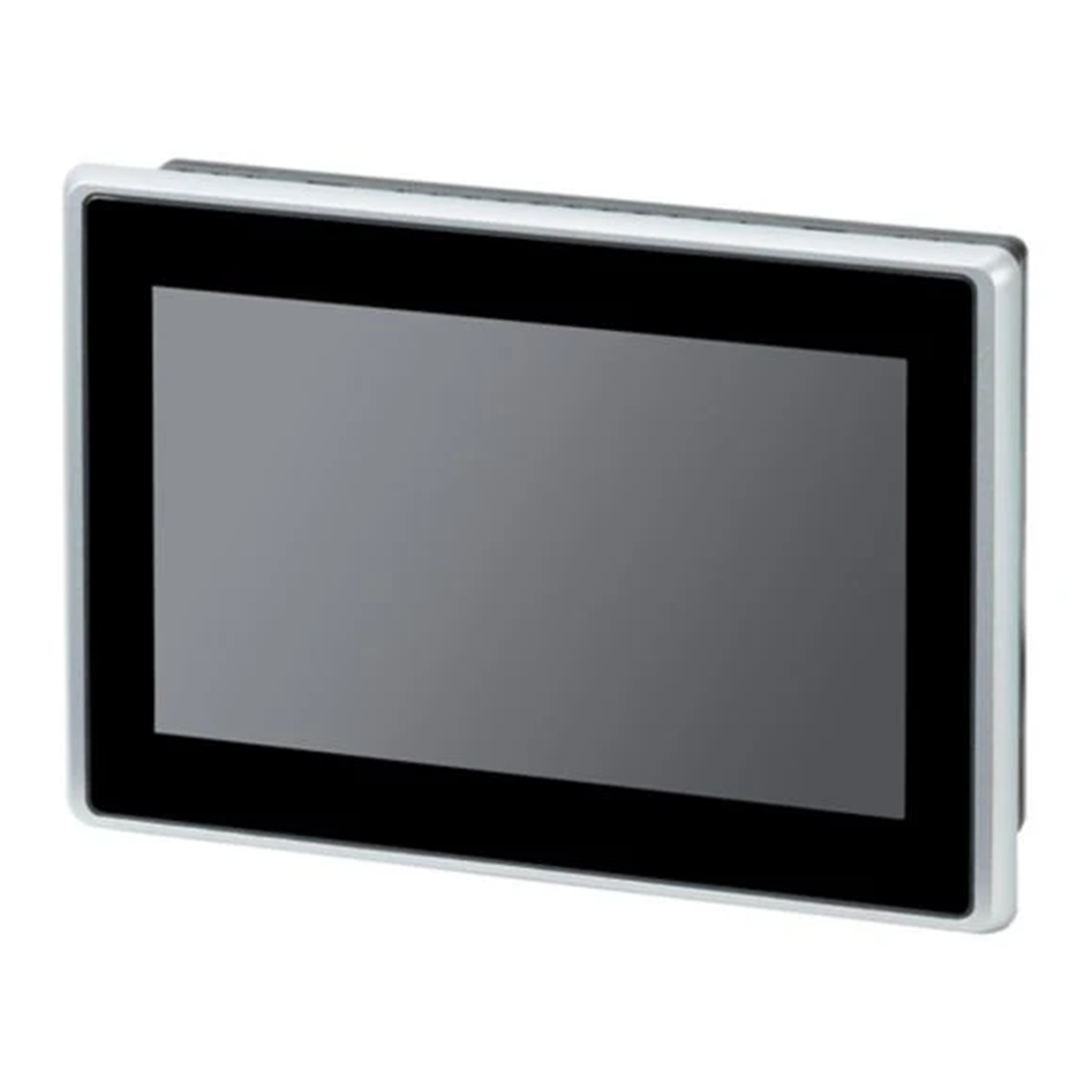

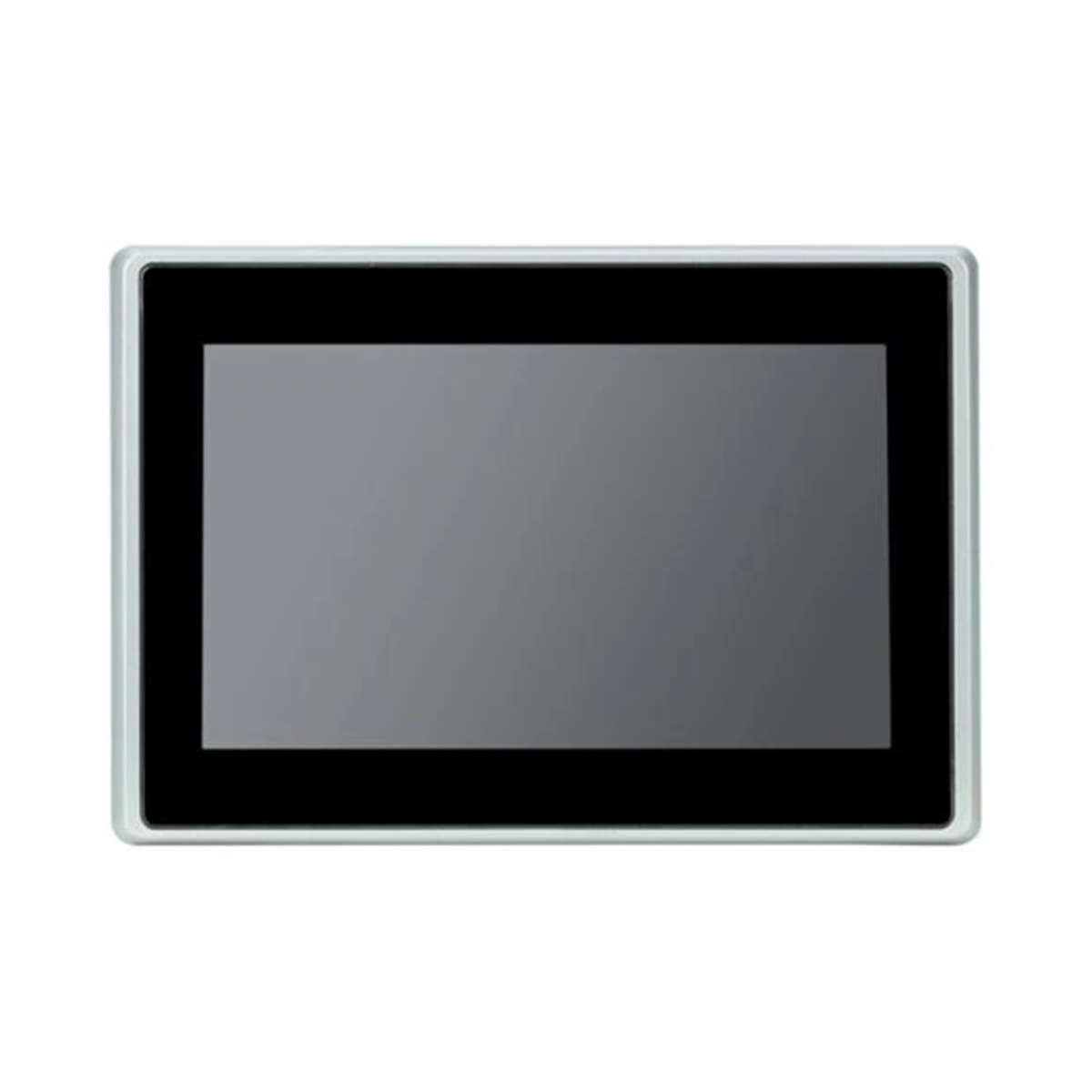

PCT panel 7' XV-303-70-CE0-A00-1C 179656

local index:
API098MOEL
Catalog No:
179656
EAN code:
7640130098701
Manufacturer: EATON
Supply voltage [V]: DC
Display diagonal [inch]: 7
Price:
2719,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 2 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

PCT Panel 7' XV-303-70-CE0-A00-1C


  • Effective project/user memory [KByte]: 512000

  • Building depth [mm]: 43.1000

  • Index manufacturer: 179656

  • Number of online languages: 100

  • Number of function keys, programmable: 1

  • Number of levels, password protection: 200

  • Number of displayable colors or gray levels: 16000000

  • Number of Industrial Ethernet hardware connectors: 2
  • Number of other hardware ports: 2

  • Number of RS232 hardware ports: 1

  • Number of RS485 hardware ports: 1< /li>
  • Number of USB hardware connectors: 2

  • Maximum vertical resolution [DPI]: 600

  • Maximum vertical resolution [DPI]: 600

  • Maximum vertical resolution level [DPI]: 1024

  • The ability to load additional software components: Yes

  • Power supply voltage for DC [V] up to: 30

  • Supply voltage for DC [V] from: 19.2

  • Support for other protocols: Yes

  • Support for CAN protocol : Yes

  • Support EtherNet/IP: Yes

  • Support MODBUS: Yes

  • Support TCP /IP: Yes

  • Screen diagonal [mm]: 7

  • Type of supply voltage: DC

  • Degree protection (IP): IP65

  • Front width [mm]: 196

  • Process value input (Input) possible: Yes
  • < br/>
  • Printer output: Yes

  • Screen design: TFT

  • Front height [mm]: 135
  • < br/>
  • Process value display (release) possible: Yes

  • Touch screen: Yes

  • With SW interface: Yes

  • With recipes: Yes

  • With alarm system (including buffering and acknowledgment)?: Yes

  • With color display : Yes

  • Operating temperature range [°C] to: 50

  • With control indicator: Yes

Technical data

  • Supply voltage [V]
    DC
  • PKWIU
    26.20.1
  • Display diagonal [inch]
    7

Other technical data

  • Supply voltage AC 50 Hz
    0 ... 0 V
  • Supply voltage DC
    19.2 ... 30 V
  • Number of HW-interfaces industrial Ethernet
    2
  • Number of HW-interfaces RS-232
    1
  • Number of HW-interfaces RS-485
    1
  • Number of HW-interfaces USB
    2
  • Number of HW-interfaces wireless
    0
  • With SW interfaces
    Yes
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    Yes
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    Yes
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Colour display
    Yes
  • Number of grey-scales/blue-scales of display
    0
  • Number of pixels, horizontal
    1024
  • Useful project memory/user memory
    512000 kB
  • With alpha numeric keyboard
    No
  • Number of buttons with LED
    0
  • Touch technology
    Capacitive multitouch
  • With message system (incl. buffer and confirmation)
    Yes
  • Process default value (input) possible
    Yes
  • Number of password levels
    200
  • Number of online languages
    100
  • Degree of protection (IP), front side
    IP65
  • Operating temperature
    0 ... 50 °C
  • Wall mounting/direct mounting
    No
  • Width of the front
    196 mm
  • Built-in depth
    43.1 mm
  • Supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type (supply voltage)
    DC
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces other
    2
  • Supporting protocol for TCP/IP
    Yes
  • Supporting protocol for CAN
    Yes
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    Yes
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • Type of display
    TFT
  • Number of colours of the display
    16777216
  • Screen diagonal
    7 cal
  • Number of pixels, vertical
    600
  • With numeric keyboard
    No
  • Number of function buttons, programmable
    0
  • Number of system buttons
    1
  • With message indication
    Yes
  • Process value representation (output) possible
    Yes
  • With recipes
    Yes
  • With printer output
    Yes
  • Additional software components, loadable
    Yes
  • Degree of protection (NEMA), front side
    12
  • Rail mounting possible
    No
  • Suitable for safety functions
    No
  • Height of the front
    135 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,060
Volume (m3) 0,005
Width (m) 0,170
Length (m) 0,280
Depth (m) 0,115
