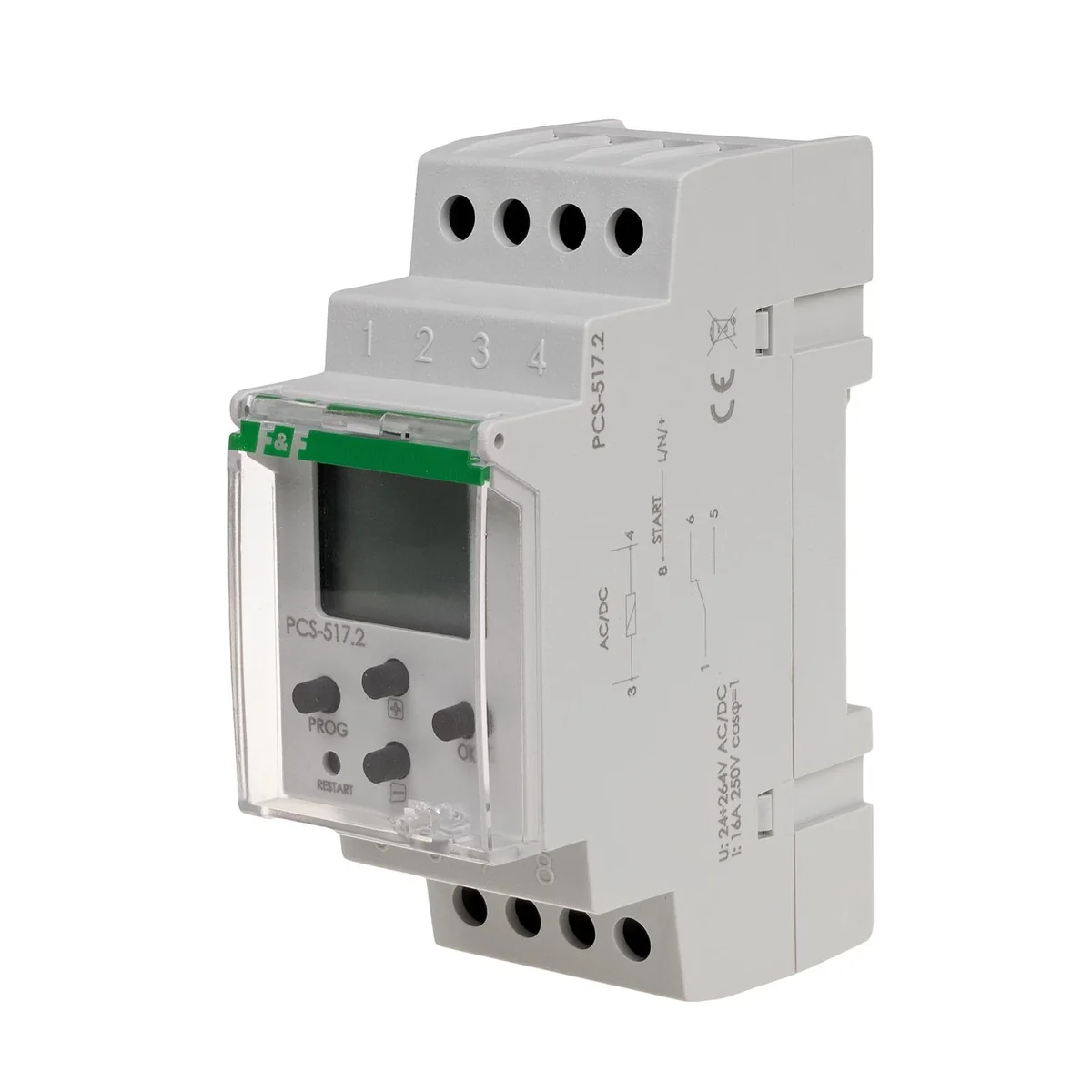

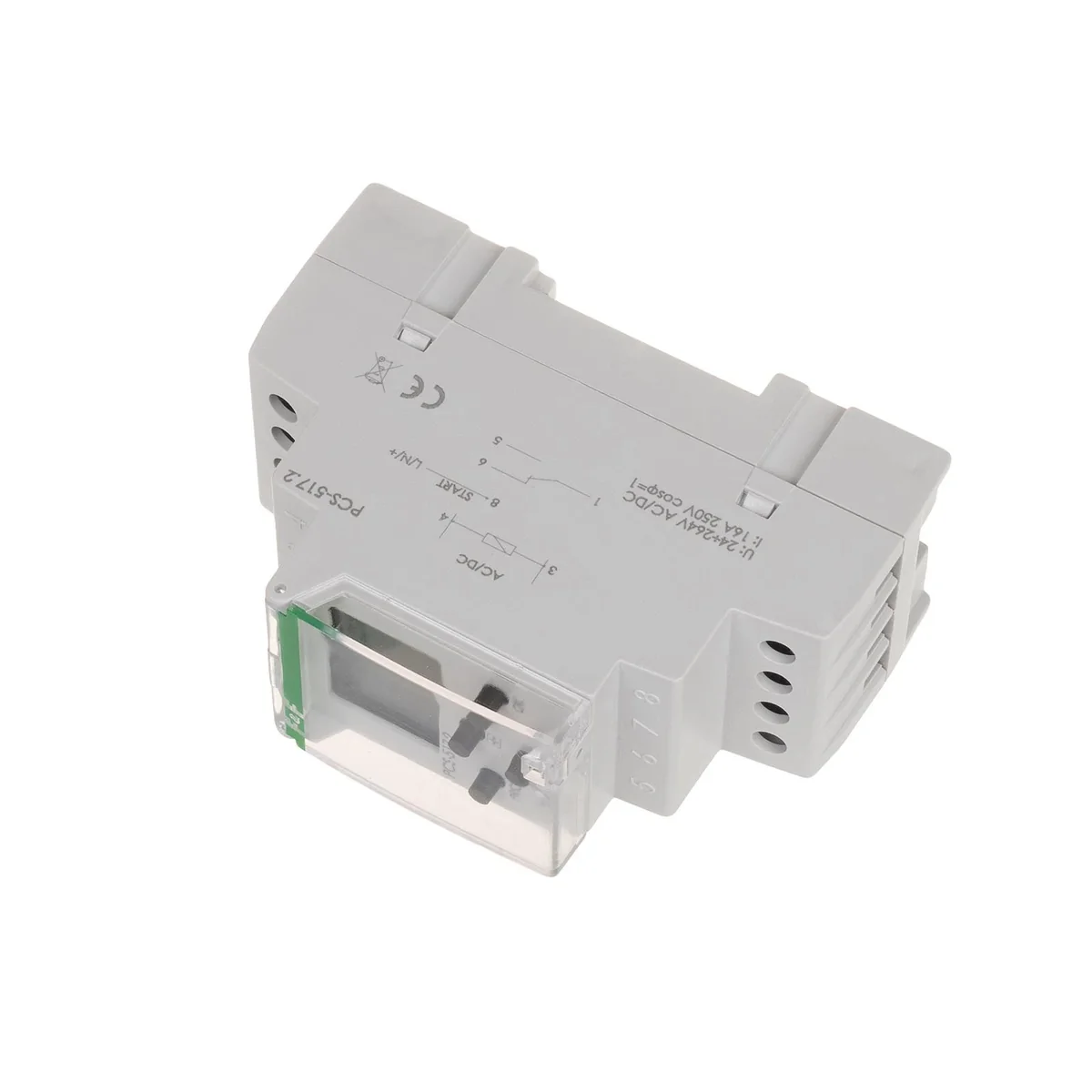

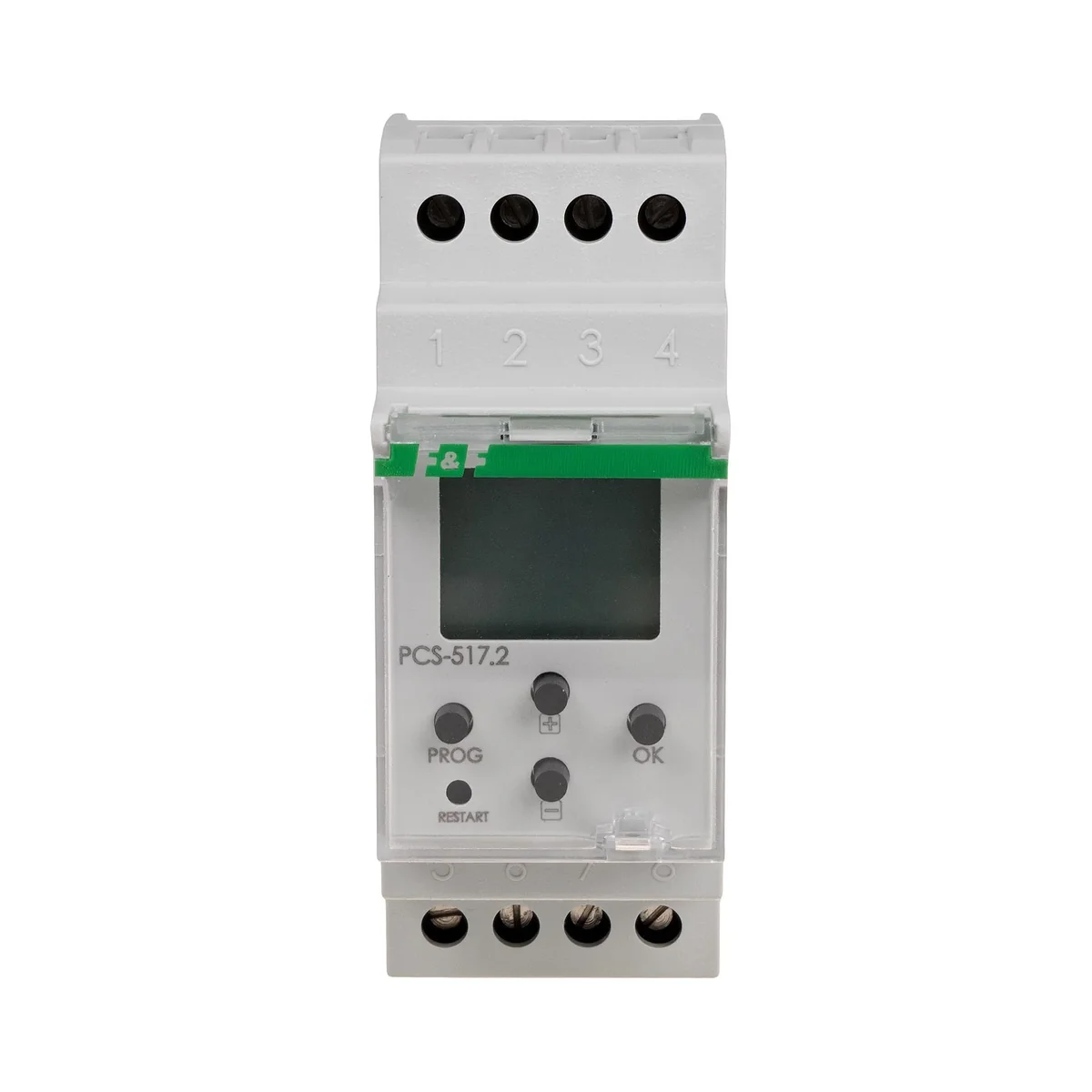

PCS-517 time relay PCS-517

local index:
APC187FIFQ
Catalog No:
PCS-517
EAN code:
5908312591627
Manufacturer: F&F
Number of contacts: 0NO 0NC
Power [W]: 1.5
Installation: On the TH-35 rail
Price:
62,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Intended use
The PCS-517 time relay is used for time control in industrial and home automation systems. Thanks to the extensive work functions, one- and two-time, contained in the processor's memory, they allow the elimination of complicated and expensive control systems based on the compilation of many ordinary time relays. Unlike potentiometer relays, they allow for very precise setting of switching times, e.g. 3h - 47min - 19sec. Operation
The relay performs one of the set work functions according to the set times.
Functions 1÷5 are activated with the supply voltage. When the function is completed, END will appear on the display. The next execution of the function will start after switching off and reconnecting the supply voltage or “restarting”
Functions 6÷17 are activated by the START control signal. After switching on the supply voltage, the relay is ready to perform the work function. ON will appear on the display. After giving the START signal, the relay starts the function. After completion, it returns to the ready state (waiting for the next START signal).
Function 18 - is activated by the START control signal. After switching on the supply voltage, the relay is ready to perform the work function. ON will appear on the display. After giving the START signal, the relay starts the function. When finished, END will appear on the display. The relay does not respond to subsequent START signals. The next execution of the function will start after switching off and reconnecting the supply voltage or “restarting” processor. Note!
* Turning off the power supply during the work function causes the relay to stop working. The contact will remain
 disconnected (pos.1-6). Turning the power on again will start the function from the beginning.
* Pressing the RESTART button during the execution of the work function causes the function to start from the beginning.

Technical data

  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • load current [A]
    <16
  • Working temperature [°C]
    -20-50
  • Working time setting range
    0, 25sec-99h 59min 59sec 75/100
  • Package height [mm]
    150
  • Package weight [kg]
    0.15
  • Operating time setting range [s]
    0, 25sec-99h 59min 59sec 75/100
  • Power [W]
    1.5
  • Control pulse current [mA]
    <1
  • connection
    2.5mm screw terminals
  • Dimensions
    2 modules (35mm)
  • Power
    24-264V AC/DC
  • Package width [mm]
    40
  • Tripping delay [ms]
    500msec
  • PKWIU
    26.52.24.0

Other technical data

  • Type of excitation
    Digital with multi function
  • 1st interval unit
    Seconds/minutes
  • Mounting method
    DIN rail
  • Number of changeover switches
    1
  • Supply voltage
    24 ... 264 V
  • Nominal switching current at 250 V AC
    16 A
  • Switch capacity fluorescent lamp DUO
    1000 VA
  • Switch capacity fluorescent lamp inductive
    1000 VA
  • Function
    Multi function
  • 2nd interval
    9 ... 264
  • Width in number of modular spacings
    2
  • Type of control voltage 1
    AC/DC
  • Voltage type (supply voltage)
    AC/DC
  • Switch capacity incandescent lamps
    2300 W
  • Switch capacity fluorescent lamp parallel
    800 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,114
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
