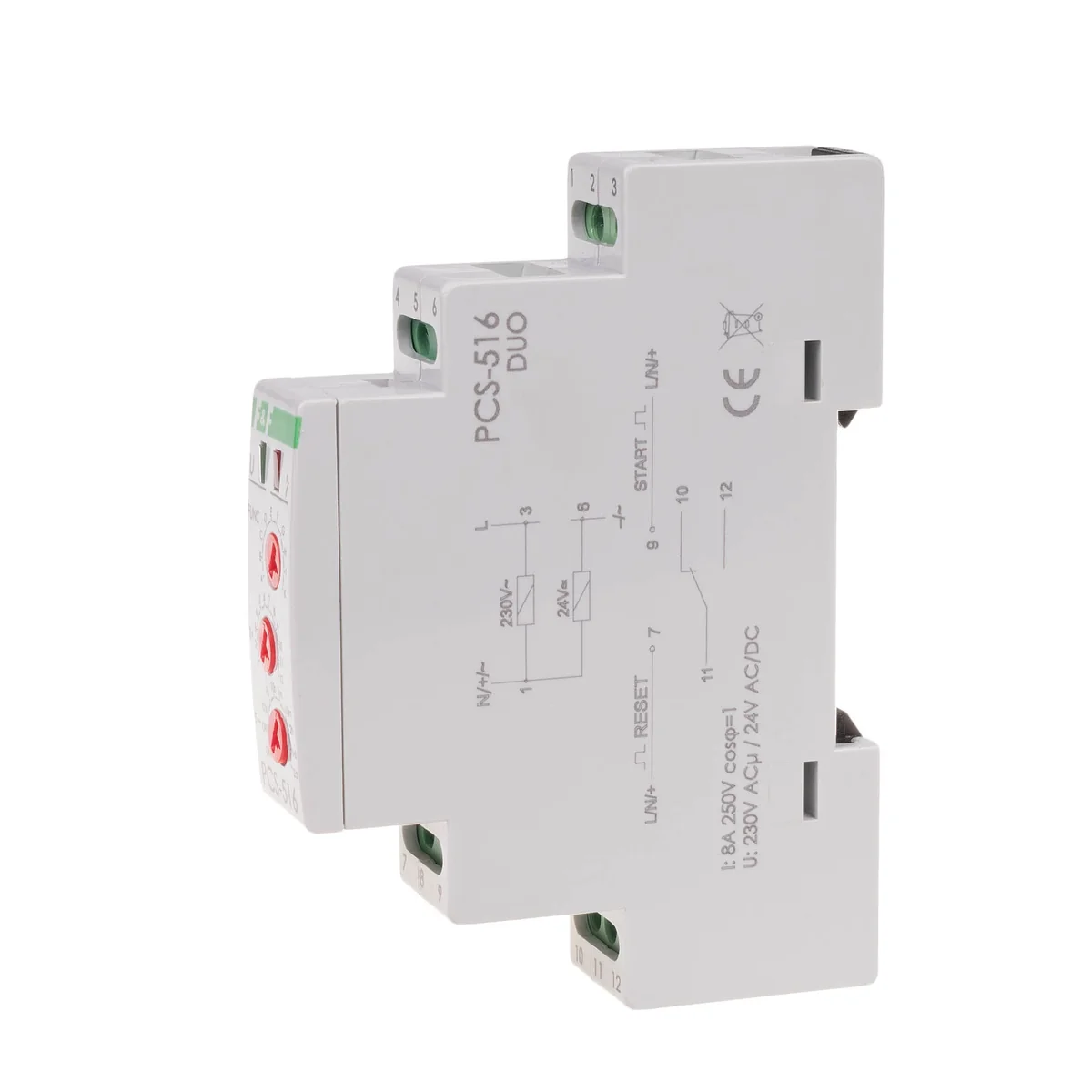

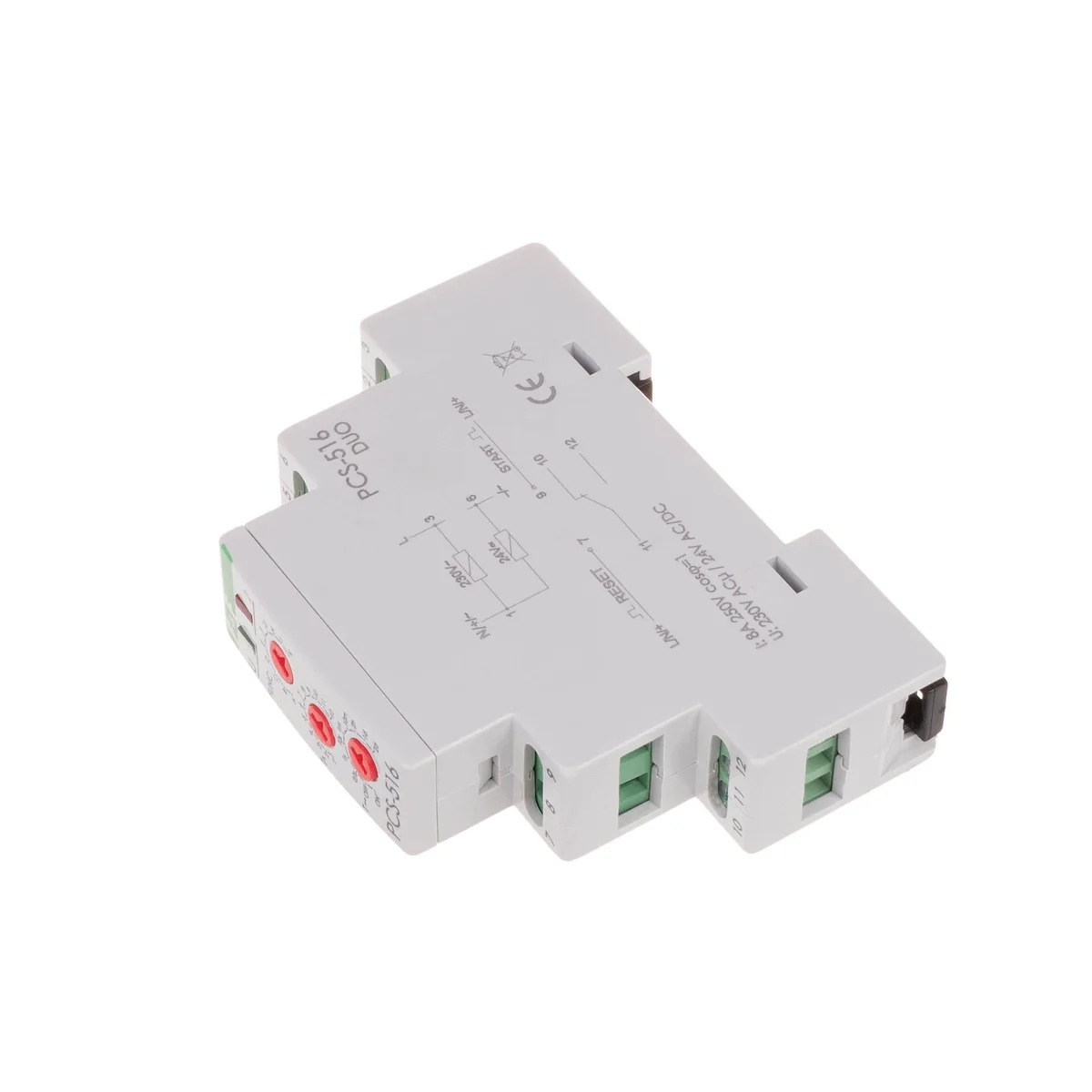

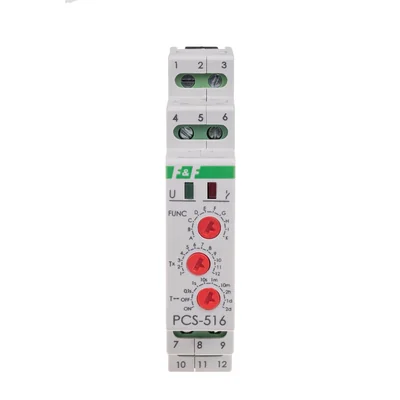

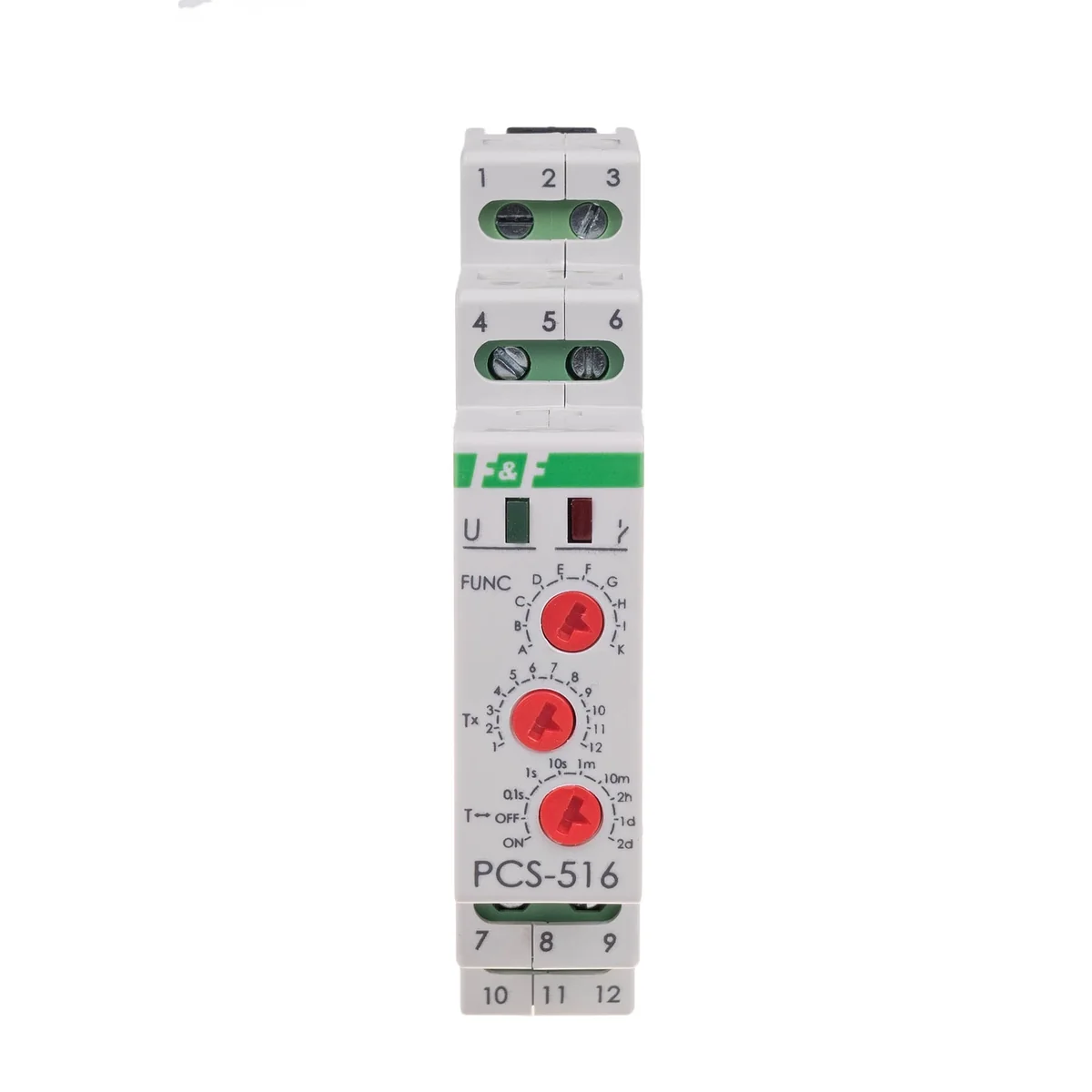

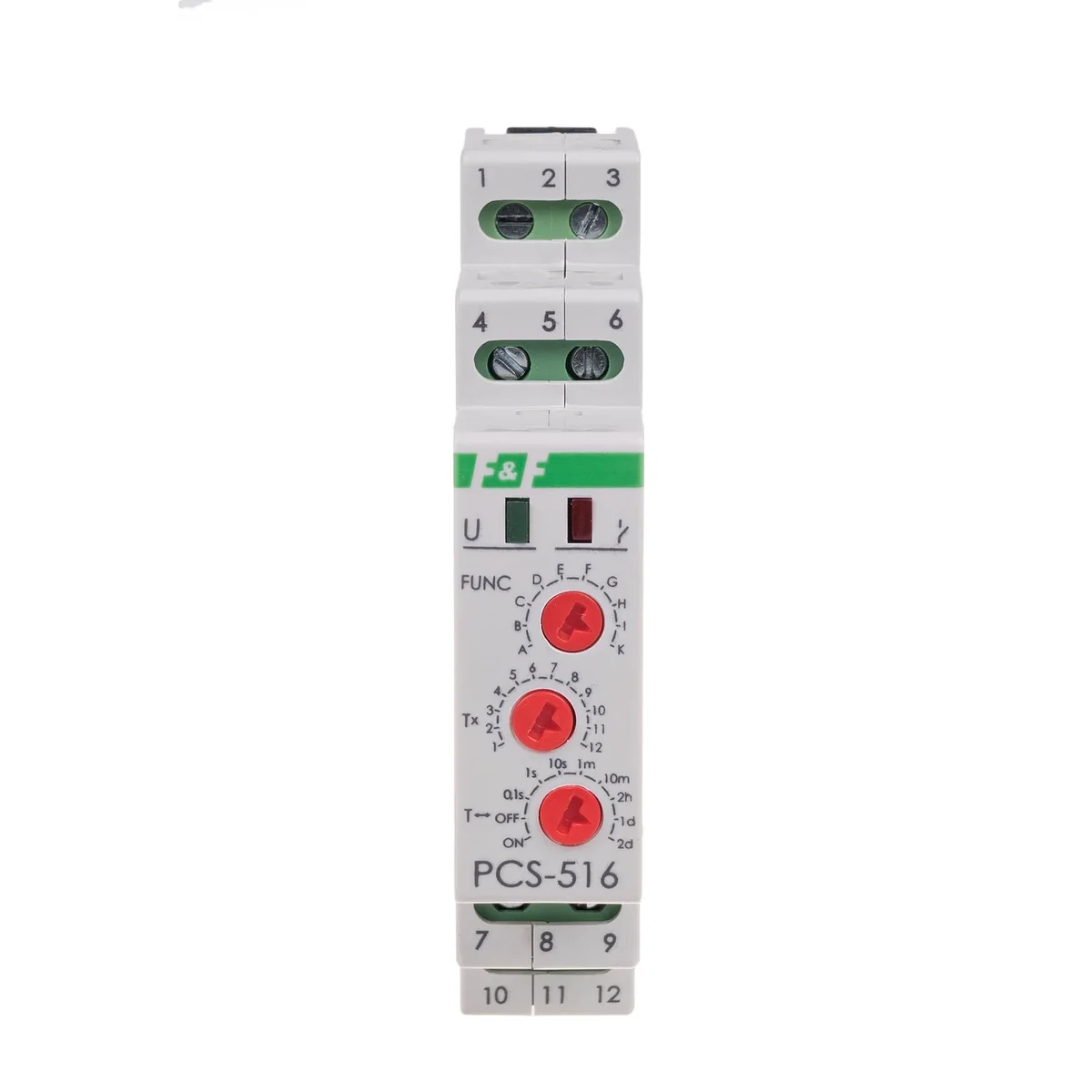

PCS-516 time relay PCS-516DUO

local index:
APC186FIFQ
Catalog No:
PCS-516DUO
EAN code:
5908312595496
Manufacturer: F&F
Power [W]: 0.8
Installation: On the TH-35 rail
Rated voltage [V]: 230
Price:
31,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Purpose
Relays  temporary   are used for  time control in industrial and home automation systems (e.g. ventilation, heating, lighting, signaling, etc.).
Operation
The relay performs the selected function in accordance with the set time regime.  Selection of a specific time range and relay operation function consists in setting an appropriate combination of rotary code switches.


Note!
* Applying RESET voltage during the function execution :
     - for functions A, B, C, D, F implementation of the operating mode from the beginning.
     - for functions F, G, H, I, the relay returns to its initial state and waits for the START signal.
     - for the K function, the relay contact is permanently switched on in position  11-12.
* Setting the rotary switch of the time range in the position:
* When the power supply is on, the system does not react to changing the time range settings.
* Operation with the newly set time range takes place after switching off and repeating ;various activation
* When the power is turned on within the set time range, it is possible to smoothly adjust the time within the time setting value.              ;           ON - when the power supply is on, the contact is permanently switched on in position 11-12.
 OFF - when the power supply is on, the contact is permanently switched on in position 11-10.

PCS-516 contactSeparated 1P



PCS-516 contact Separated 1P

Technical data

  • Power [W]
    0.8
  • Rated voltage [V]
    230
  • Tripping delay [msec]
    <50
  • connection
    2.5mm screw terminals
  • Power indication
    LED green
  • Dimensions
    1 module (18mm)
  • Power [V]
    230/24
  • Package width [mm]
    20
  • Operating time setting range [s]
    0.1sec-24days
  • Installation
    On the TH-35 rail
  • DC rated voltage [V]
    24
  • load current [A]
    <8
  • Contact status indication
    red LED
  • Working temperature [°C]
    -25-50
  • Working time setting range
    0.1sec-24days
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • PKWIU
    26.52.24.0

Other technical data

  • Type of excitation
    Analogue with multi function
  • 1st interval unit
    Seconds/minutes
  • Control voltage 1
    230 ... 24 V
  • Voltage type (supply voltage)
    AC/DC
  • Switch capacity incandescent lamps
    1500 W
  • Switch capacity fluorescent lamp parallel
    500 VA
  • Function
    Multi function
  • Mounting method
    DIN rail
  • Type of control voltage 1
    AC/DC
  • Nominal switching current at 250 V AC
    8 A
  • Switch capacity fluorescent lamp DUO
    650 VA
  • Switch capacity fluorescent lamp inductive
    650 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,068
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
