el12 Automation Relays and drivers Time relays

PCS-506 time relay PCS-506

local index:
APC154FIFQ
Catalog No:
PCS-506
EAN code:
5908312595380

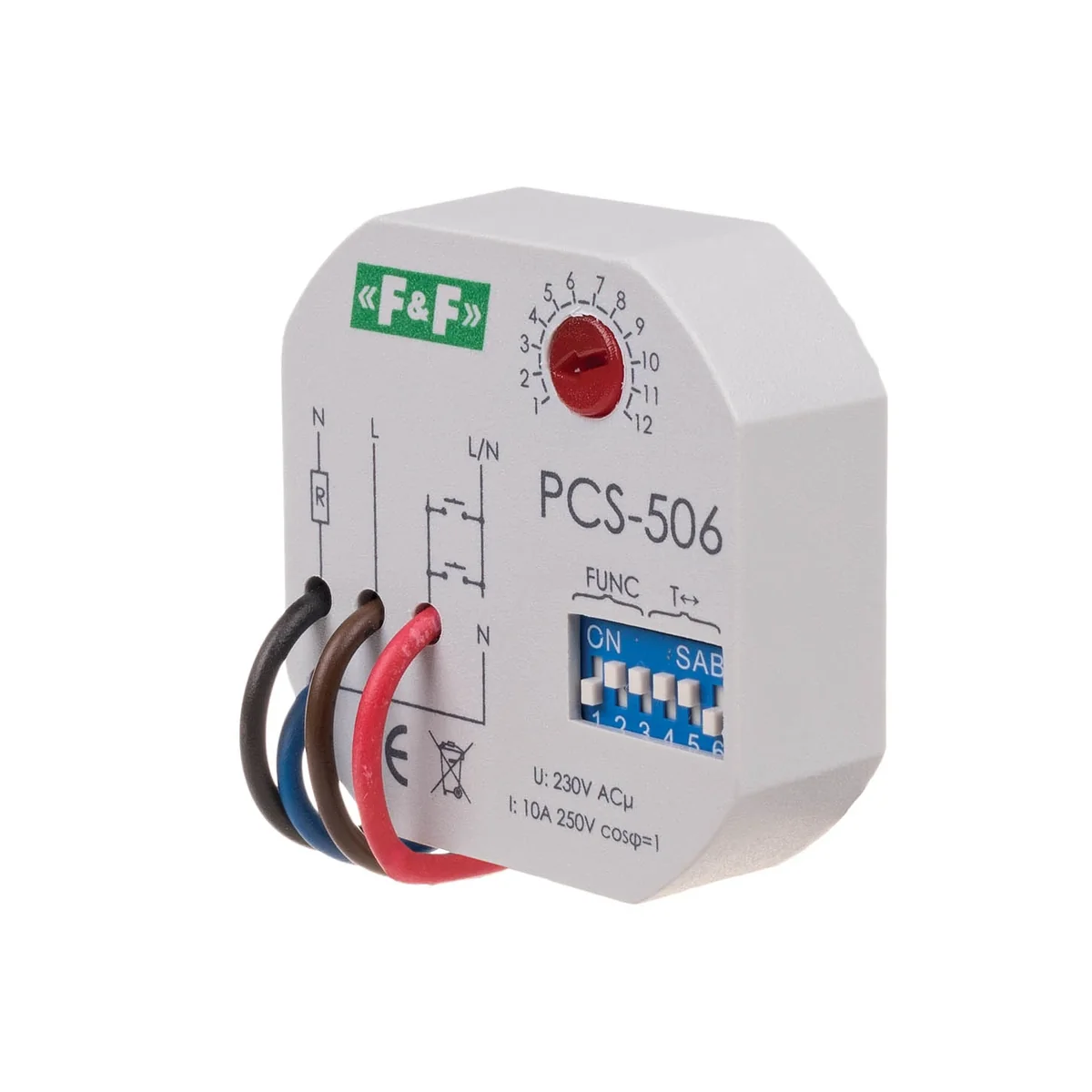

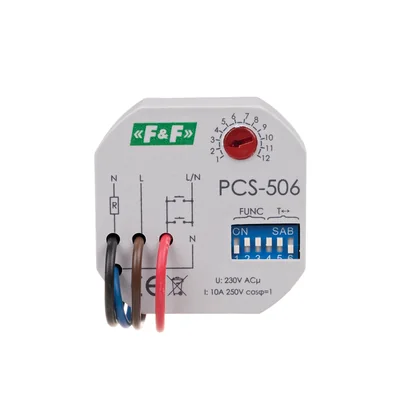

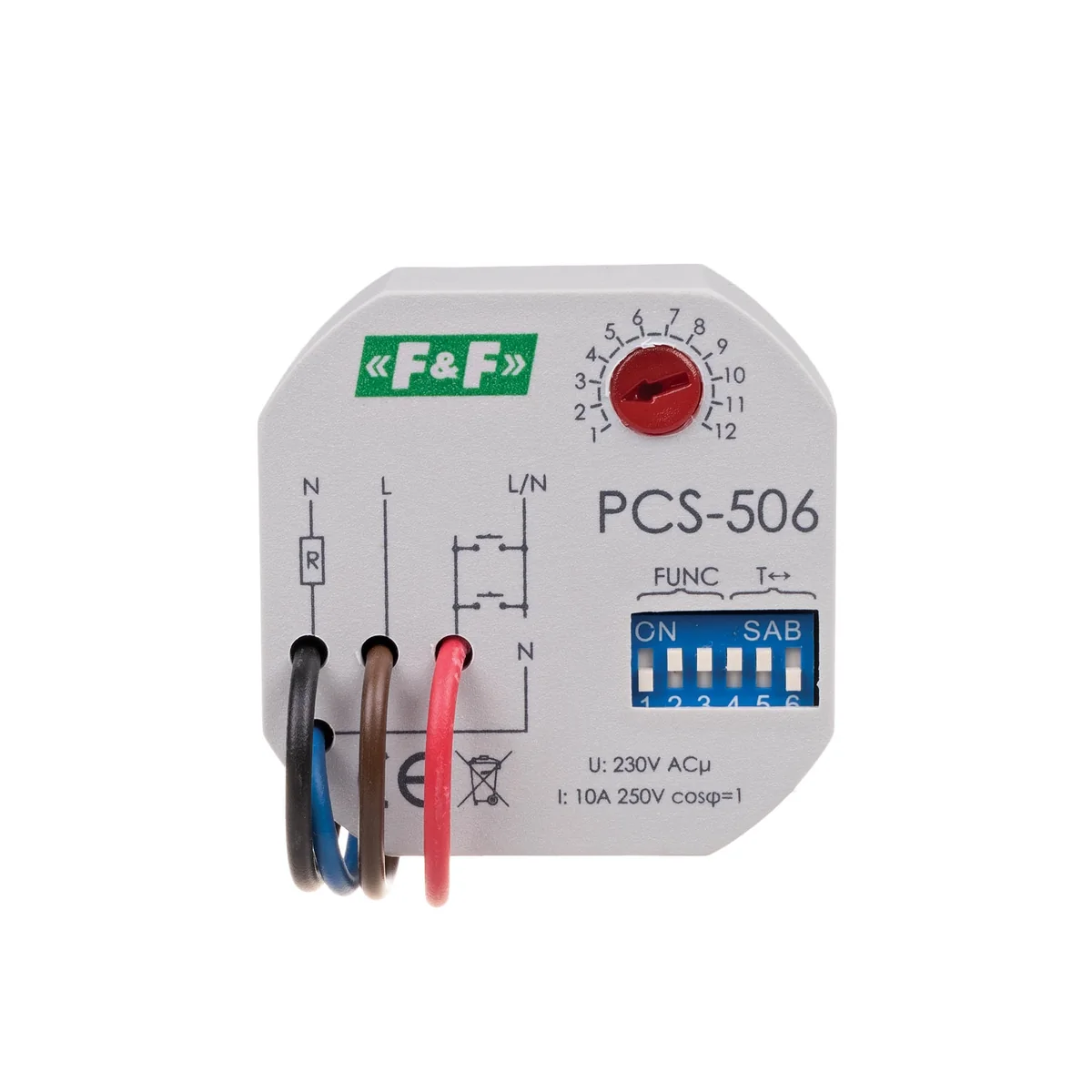

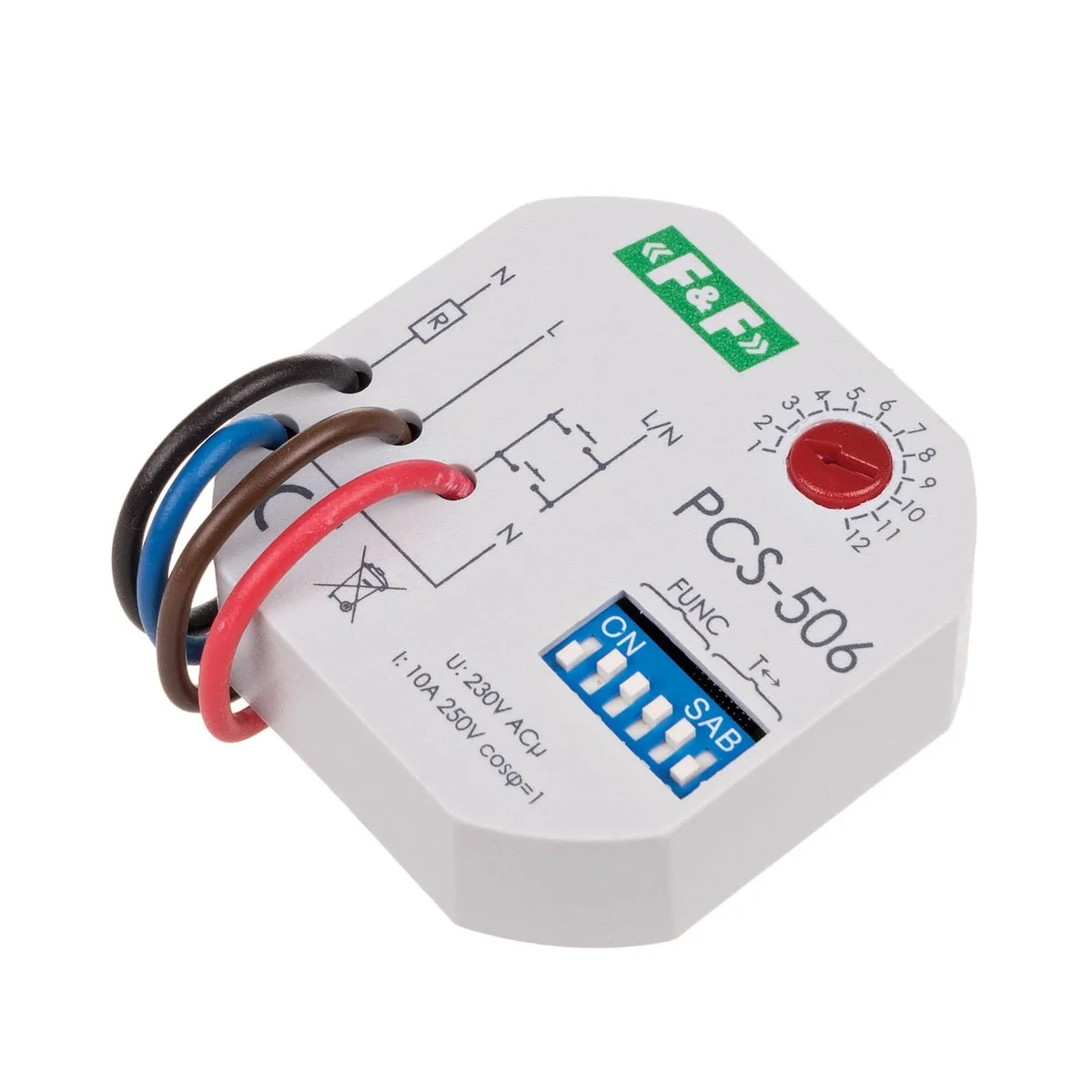

PCS-506 time relay
PCS-506 time relay
PCS-506 time relay
PCS-506 time relay
PCS-506 time relay
PCS-506 time relay

Click on the photo to enlarge

Manufacturer: F&F
Number of contacts: 1NO 0NC
Power [W]: 0.8
Installation: Flush-mounted
See full description
Price:
108,41 zł
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Purpose
Relays  temporary   are used for  time control in industrial and home automation systems (e.g. ventilation, heating, lighting, signaling, etc.). .  The selection of a specific time range and relay operation function consists in setting the appropriate combination of switches. set time range occurs after switching off and on again
* When the power supply is turned on within the set time range, it is possible to smoothly adjust the time within the time setting value.

Technical data

  • Number of contacts
    1NO 0NC
  • Installation
    Flush-mounted
  • load current [A]
    <10
  • Diameter [mm]
    55
  • Height [mm]
    13
  • Package height [mm]
    13
  • Packaging diameter [mm]
    55
  • Operating time setting range [s]
    0.1sec-24h
  • Power [W]
    0.8
  • Rated voltage [V]
    230
  • connection
    4×DY 1mm, l=10cm
  • Working temperature [°C]
    From -25-50
  • Working time setting range
    0.1sec-24h
  • Package weight [kg]
    0.1
  • Tripping delay [ms]
    <50
  • PKWIU
    26.52.24.0

Other technical data

  • Type of electric connection
    Other
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Pluggable on auxiliary contact block
    No
  • Function delay on de-energization
    Yes
  • Function floating contact on de-energization
    Yes
  • Function pulse shaping
    No
  • Function flashing, starting with pulse, fixed time
    No
  • Clock function, starting with pulse, variable
    No
  • Remote operation possible
    No
  • Rated control supply voltage AC 50 Hz
    195 ... 253 V
  • Number of outputs, delayed, normally closed contact
    0
  • Number of outputs, delayed, change-over contact
    0
  • Material contact
    Silver tin oxide (AgSnO2)
  • Voltage type (operating voltage)
    AC
  • Max. starting current
    8 A
  • Width
    50 mm
  • Depth
    16 mm
  • Complete with socket
    Yes
  • Suitable for front mounting
    No
  • Function delay-on energization
    Yes
  • Function floating contact on energization
    Yes
  • Function star-delta
    No
  • Function flashing, starting with pause, fixed time
    No
  • Clock function, starting with pause, variable
    No
  • Time range
    0.1 ... 2073600 s
  • Suitable as remote control
    No
  • Voltage type for actuating
    AC
  • Number of outputs, delayed, normally open contact
    1
  • With semiconductor output
    No
  • Operating voltage AC 50 Hz
    195 ... 253 V
  • Nominal current
    8 A
  • Degree of protection (IP)
    IP20
  • Height
    50 mm

Manufacturer details

  • Manufacturer
    F&F Filipowski S.K.
  • Address
    95-200 Pabianice Konstantynowska 79/81 Polska
  • E-mail
    biuro@fif.com.pl

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,053
Width (m) 0,026
Length (m) 0,095
Depth (m) 0,070
