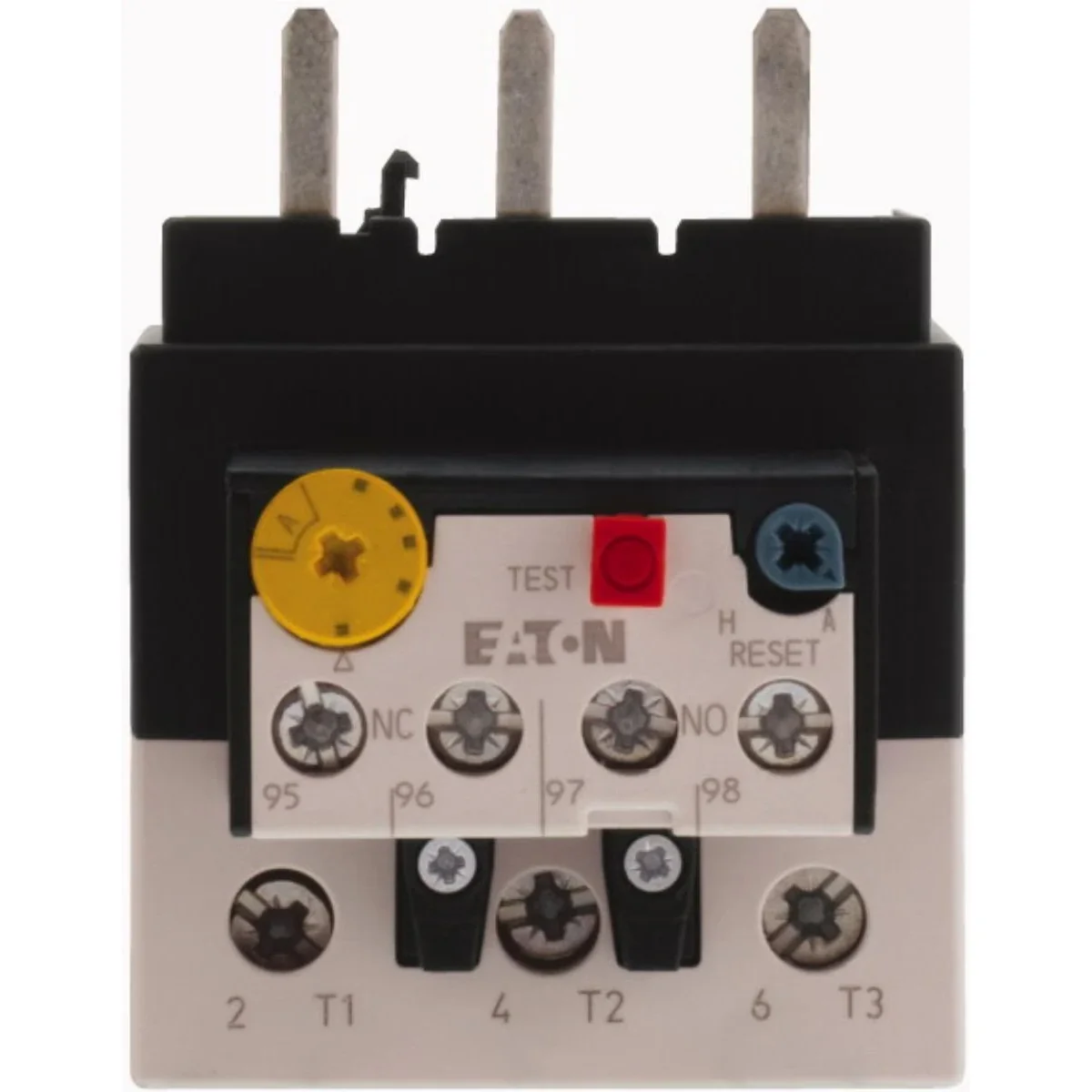

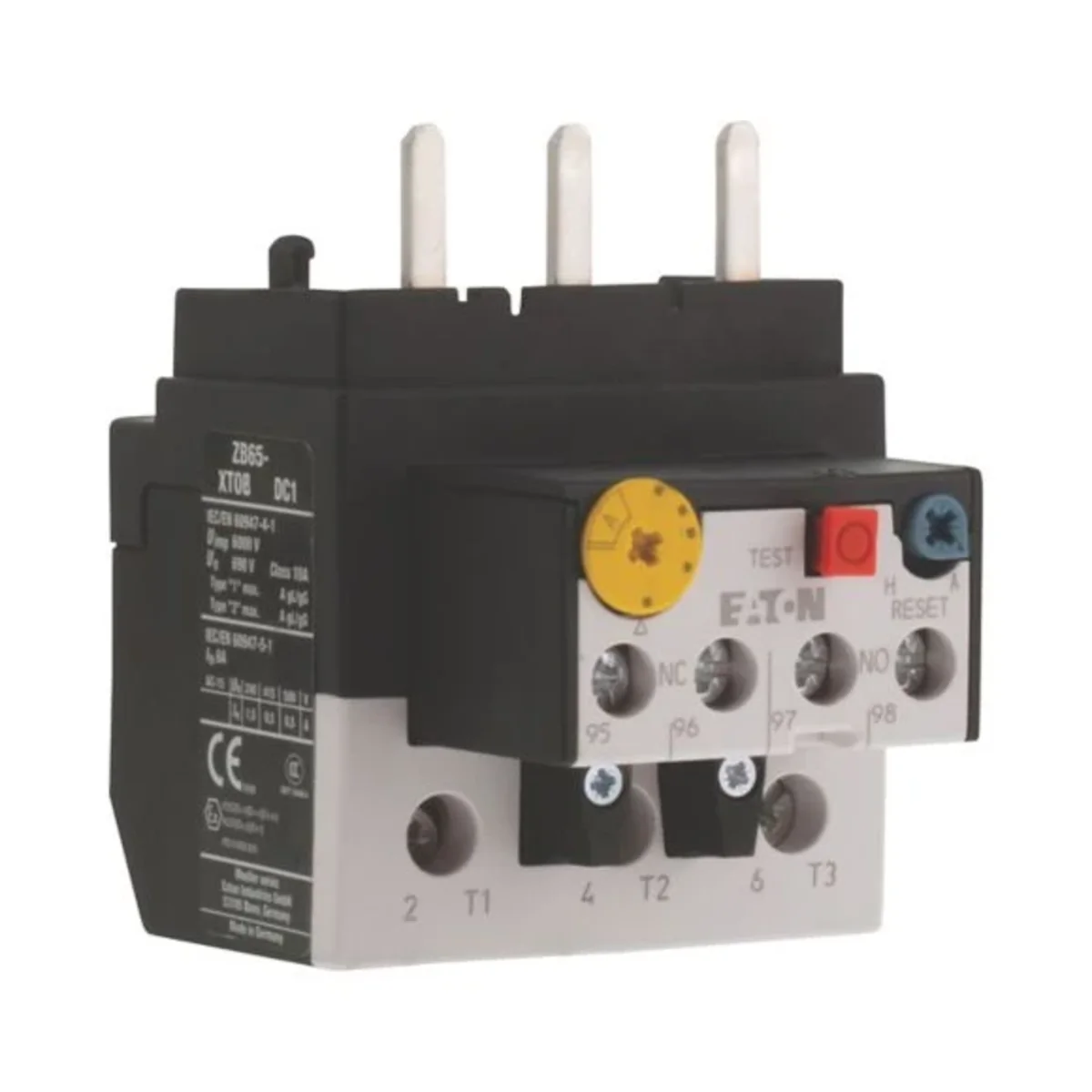

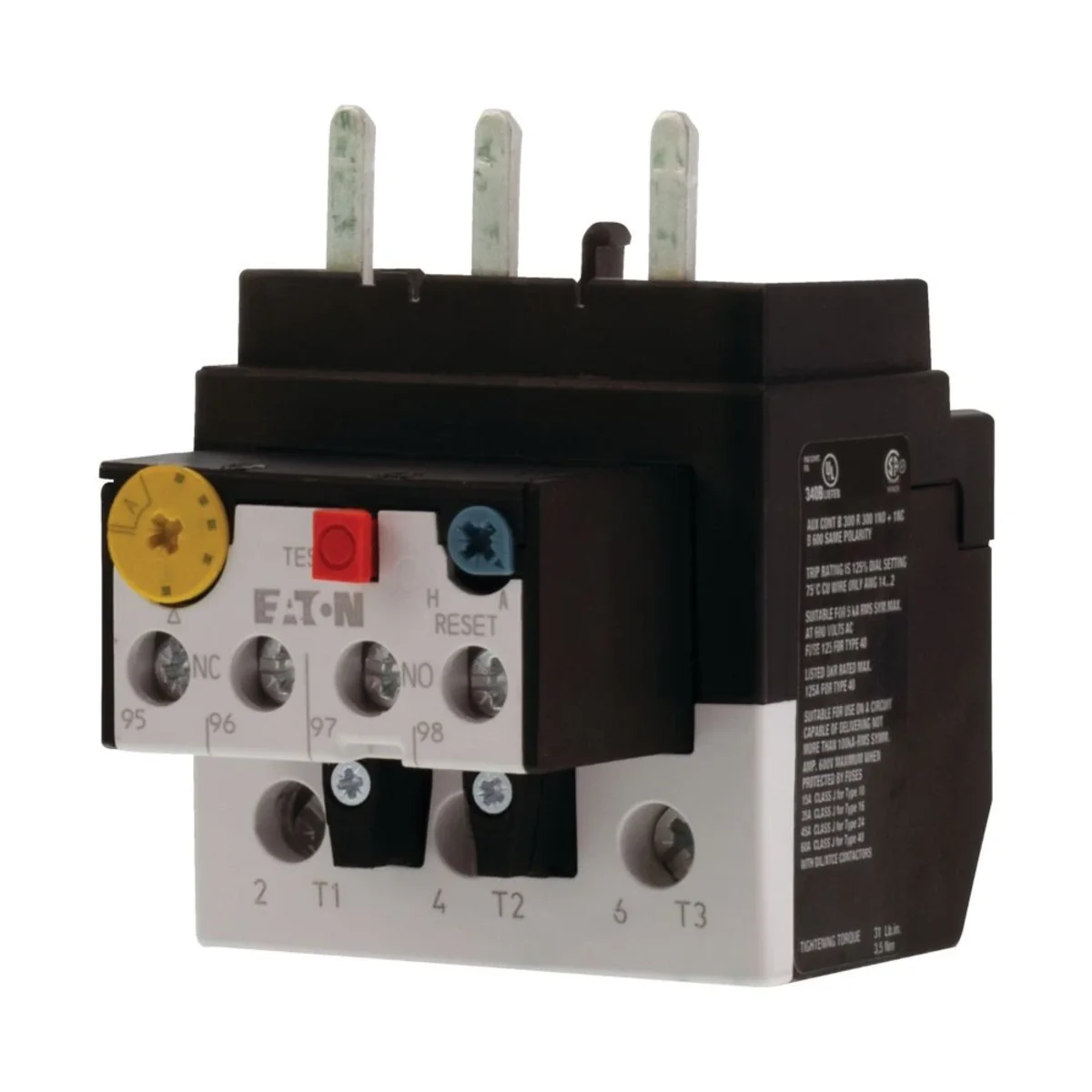

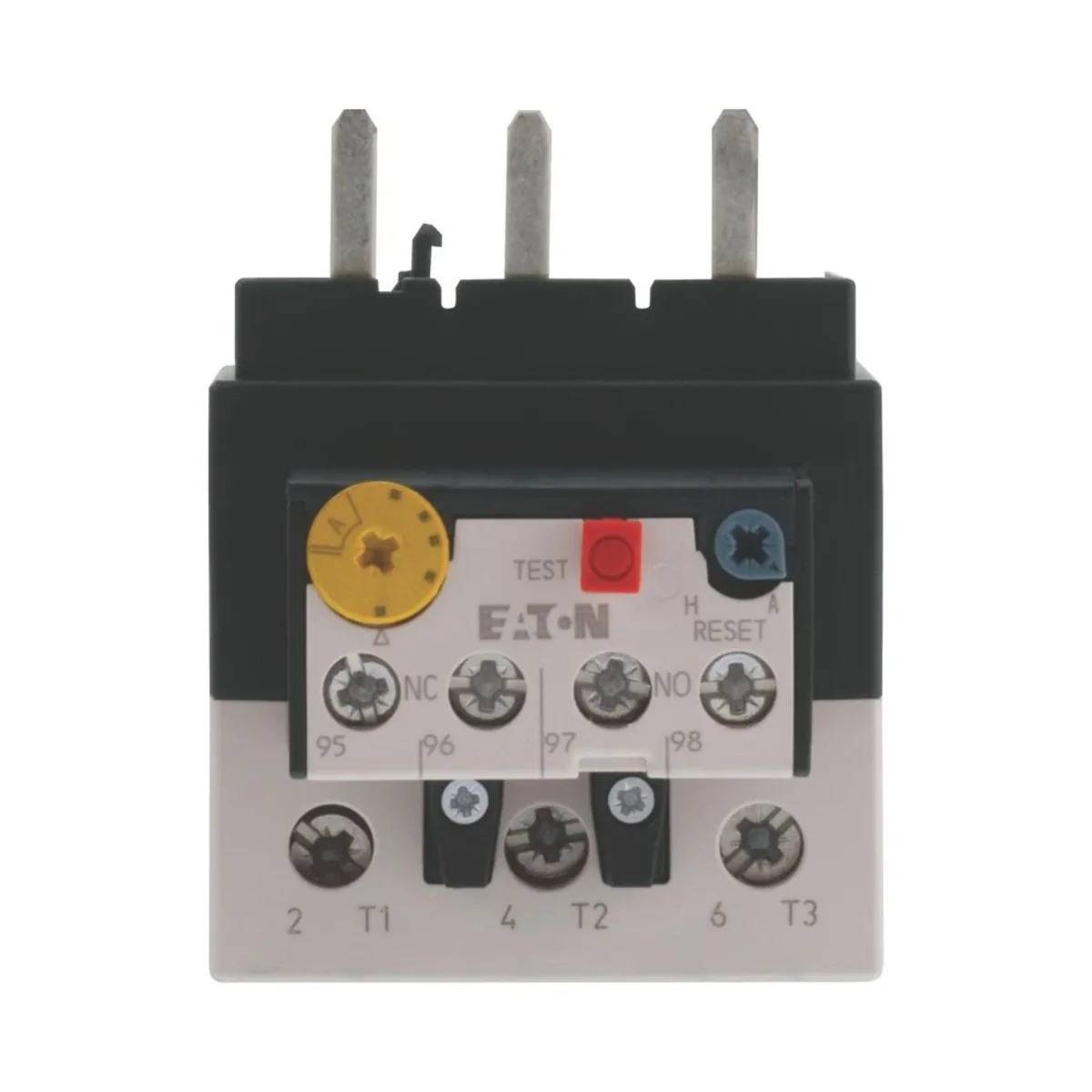

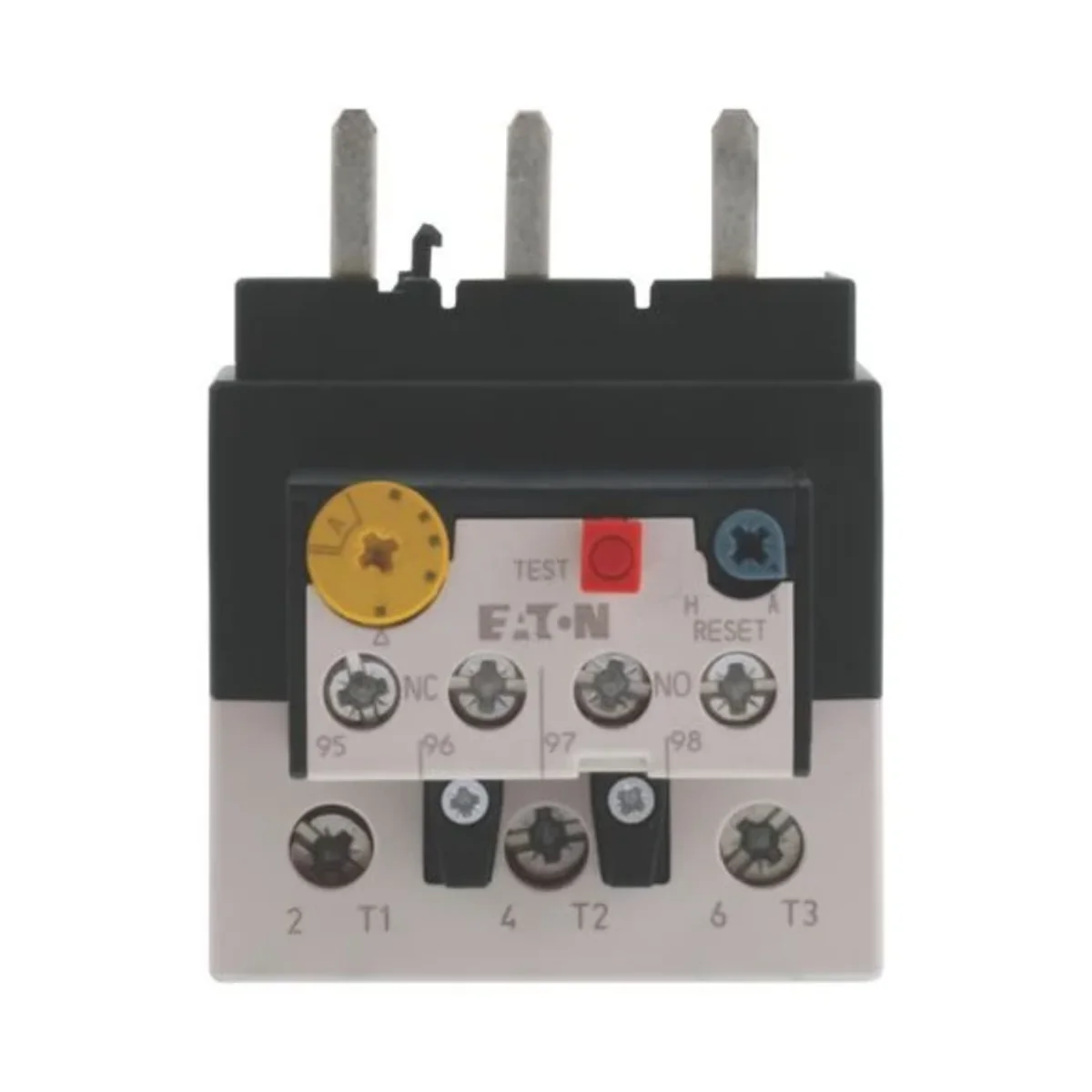

Overload relay, ZB65-16 278456

local index:
APE013MOEL
Catalog No:
278456
EAN code:
4015082784560
Manufacturer: EATON
Number of contacts: 1NO 1NC
auxiliary contacts: 1Z+1R
Price:
85,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Thermal overload relays ZB65
• Phase failure sensitive according to IEC/EN 60947, VDE 0660 Part 102
• TEST button / shutdown button
• RESET button; manual/automatic
• Free Liberation
• Direct mounting

Technical data

  • Number of contacts
    1NO 1NC
  • auxiliary contacts
    1Z+1R

Other technical data

  • Adjustable current range
    10 ... 16 A
  • Mounting method
    Direct attachment
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as change-over contact
    0
  • Reset function input
    No
  • Reset function push-button
    Yes
  • Max. rated operation voltage Ue
    690 V
  • Type of electrical connection of main circuit
    Screw connection
  • Number of auxiliary contacts as normally open contact
    1
  • Release class
    CLASS 10 A
  • Reset function automatic
    Yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,241
Volume (m3) 0,000
Width (m) 0,085
Length (m) 0,090
Depth (m) 0,060
