OT630E03K Switch disconnector 630A, 3P, front drive, with handle mounted on the device, mounting on mounting plate, set of screws 1SCA022779R4940

Name: OT630E03K Switch disconnector 630A, 3P, front drive, with handle mounted on the device, mounting on mounting plate, set of screws
Brand: ABB
SKU: ALM031ABBQ
Price: 2690.63 PLN
Availability: BackOrder

Índice local:

ALM031ABBQ

Número de catálogo:

1SCA022779R4940

Código EAN:

6417019253732

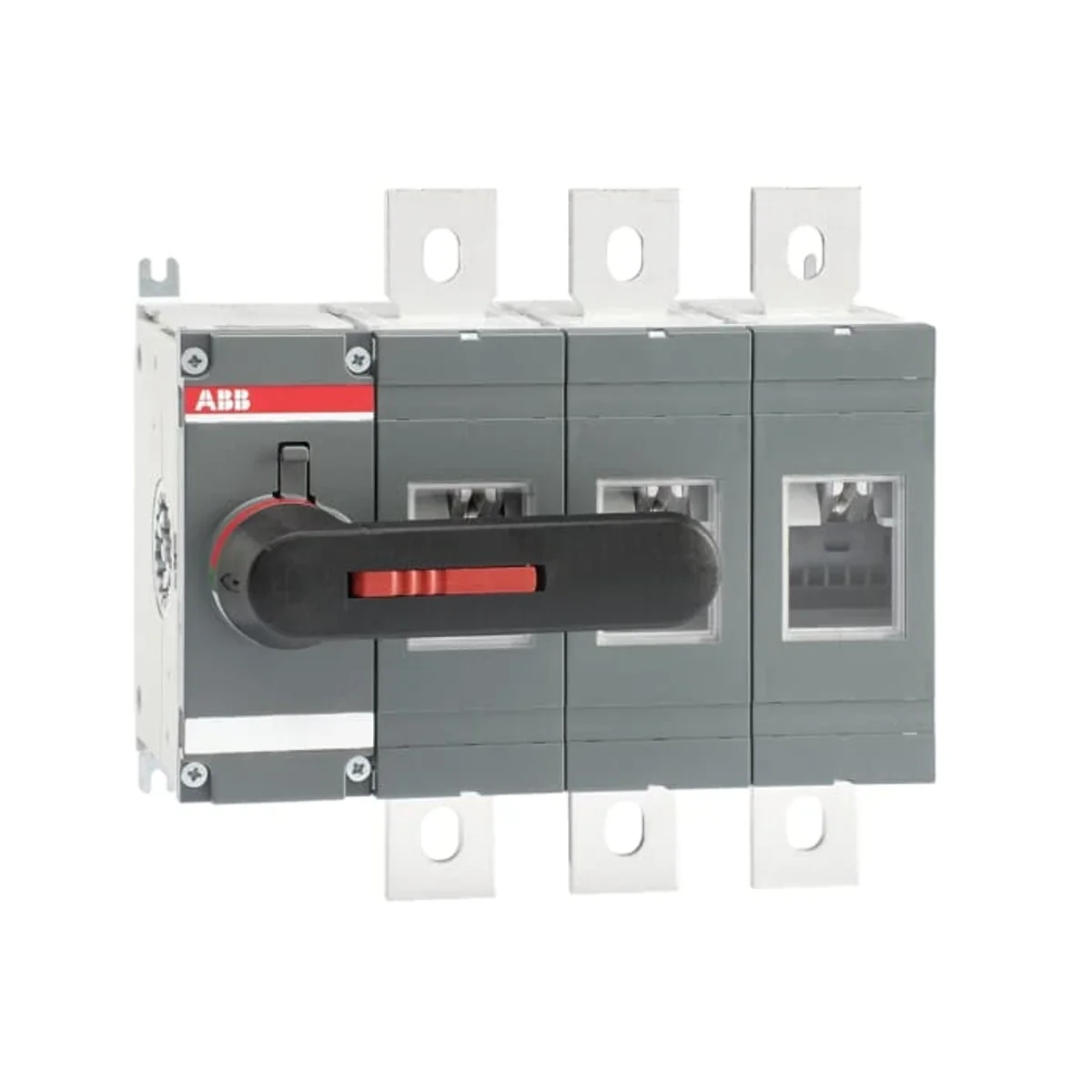

OT630E03K Switch disconnector 630A, 3P, front drive, with handle mounted on the device, mounting on mounting plate, set of screws

Haga clic en la foto para ampliar

Fabricante: ABB

Precio:

2 690,63 zł

gross / uds.

(IVA incluido 23%)

2 semanas

Por encargo

Cantidad uds.

(múltiple:

1

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante Empaquetado a granel

Datos técnicos

Otros datos técnicos

Version as main switch

Yes
Version as safety switch

No
Version as reversing switch

No
Max. rated operation voltage Ue AC

1000 V
Rated permanent current Iu

630 A
Rated permanent current at AC-21, 400 V

630 A
Rated operation power at AC-23, 400 V

355 kW
Conditioned rated short-circuit current Iq

80 kA
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
Motor drive integrated

No
Device construction

Complete device in housing
Suitable for front mounting centre

No
Colour control element

Black
Interlockable

No
Degree of protection (IP), front side

IP00

Version as maintenance-/service switch

Yes
Version as emergency stop installation

No
Number of switches

1
Rated operating voltage

1000 ... 1000 V
Rated permanent current at AC-23, 400 V

630 A
Rated short-time withstand current lcw

20 kA
Switching power at 400 V

355 kW
Number of poles

3
Number of auxiliary contacts as normally open contact

0
Motor drive optional

No
Voltage release optional

No
Suitable for front mounting 4-hole

No
Suitable for distribution board installation

Yes
Type of control element

Long turning handle
Type of electrical connection of main circuit

Bolt connection
Degree of protection (NEMA)

Other

Detalles del fabricante

Fabricante

ABB Sp. z o.o.
Dirección

04-713 Warszawa Żegańska 1 Polska
Email

contact.center@pl.abb.com

Empaquetado a granel

una especie de paquete	Sztuka	Sztuka
Cantidad	1 uds.	1 uds.
Peso (kg)	7,300	7,300
Ancho (m)	0,270	0,270
Longitud (m)	0,420	0,420
Profundidad (m)	0,220	0,220
