OT125F6 Switch disconnector 125A, 6P, front drive, without shaft and handle, IP20 terminal cover, plate or DIN rail mounting 1SCA105057R1001

Name: OT125F6 Switch disconnector 125A, 6P, front drive, without shaft and handle, IP20 terminal cover, plate or DIN rail mounting
Brand: ABB
SKU: ALI061ABBQ
Price: 1057.62 PLN
Availability: BackOrder

Indice locale:

ALI061ABBQ

Numero di catalogo:

1SCA105057R1001

Codice EAN:

6417019391878

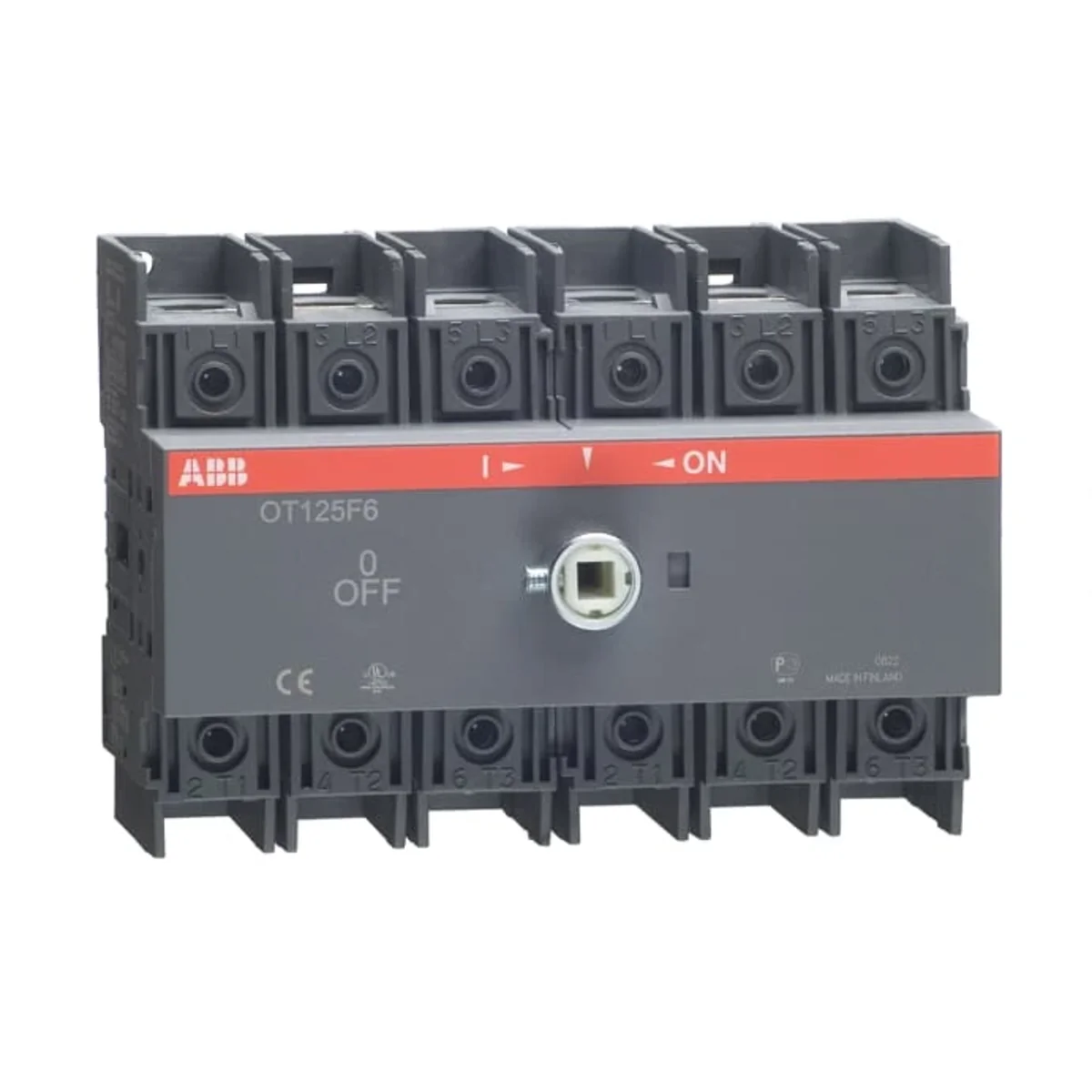

OT125F6 Switch disconnector 125A, 6P, front drive, without shaft and handle, IP20 terminal cover, plate or DIN rail mounting

Clicca sulla foto per ingrandire

Produttore: ABB

Prezzo:

1 057,62 zł

gross / pezzi

(inclusa IVA 23%)

2 settimane

Su ordinazione

Quantità pezzi

(multiplo:

1

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Dati tecnici Dettagli del produttore Imballaggio sfuso

Dati tecnici

Altri dati tecnici

Version as main switch

Yes
Version as safety switch

No
Version as reversing switch

No
Max. rated operation voltage Ue AC

750 V
Rated permanent current Iu

125 A
Rated permanent current at AC-21, 400 V

125 A
Rated operation power at AC-23, 400 V

45 kW
Conditioned rated short-circuit current Iq

50 kA
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
Motor drive integrated

No
Device construction

Complete device in housing
Suitable for front mounting centre

No
Type of control element

Long turning handle
Type of electrical connection of main circuit

Screw connection
Degree of protection (NEMA)

Other

Version as maintenance-/service switch

Yes
Version as emergency stop installation

No
Number of switches

1
Rated operating voltage

750 ... 750 V
Rated permanent current at AC-23, 400 V

90 A
Rated short-time withstand current lcw

2.5 kA
Switching power at 400 V

45 kW
Number of poles

6
Number of auxiliary contacts as normally open contact

0
Motor drive optional

No
Voltage release optional

No
Suitable for front mounting 4-hole

No
Suitable for distribution board installation

Yes
Interlockable

No
Degree of protection (IP), front side

IP20

Dettagli del produttore

Produttore

ABB Sp. z o.o.
Indirizzo

04-713 Warszawa Żegańska 1 Polska
Email

contact.center@pl.abb.com

Imballaggio sfuso

Una specie di pacchetto	Sztuka	Sztuka
Quantità	1 pezzi	1 pezzi
Peso (kg)	1,100	1,100
Larghezza (m)	0,103	0,103
Lunghezza (m)	0,205	0,205
Profondità (m)	0,102	0,102
