OsiSense XC Limit switch body snap action 1NC+1NO M20 connector ZCKJ1H29

Name: OsiSense XC Limit switch body snap action 1NC+1NO M20 connector
Brand: SCHNEIDER ELECTRIC
SKU: ALC095SCHN
Price: 23.63 PLN
Availability: InStock

local index:

ALC095SCHN

Catalog No:

ZCKJ1H29

EAN code:

3389110646641

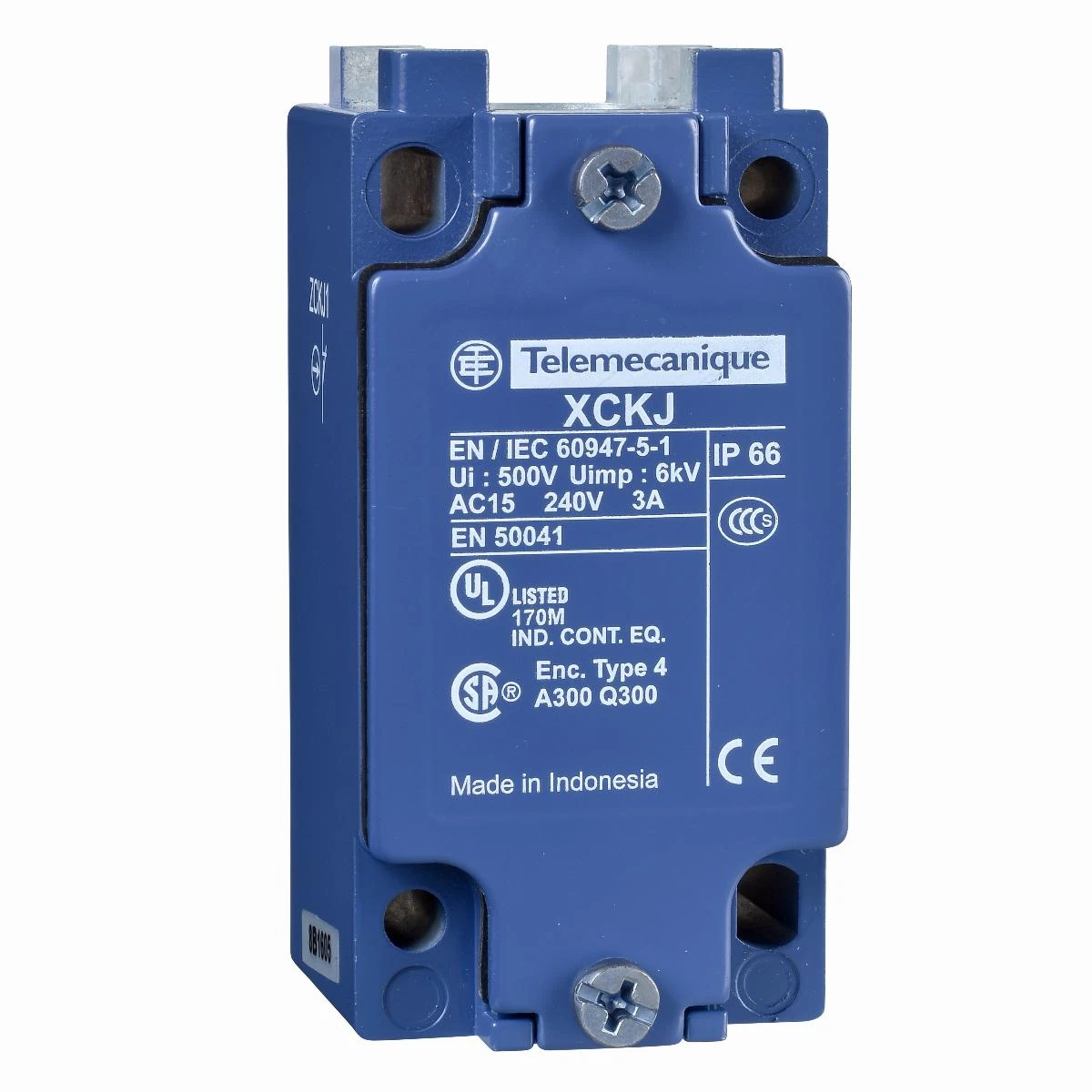

OsiSense XC Limit switch body snap action 1NC+1NO M20 connector

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC

Height [mm]: 84

See full description

Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Outlet

Price:

23,63 €

gross / pcs.

(including VAT 23%)

The lowest price from 30 days before the reduction: 23,63 € gross

Base price: 74,27 € gross

Accessible 1 pcs.

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details

Product description

OsiSense XC Limit switch body snap action 1NC+1NO M20 connector

Technical data

Height [mm]

84

PKWIU

26.51.66.0

Other technical data

Width sensor

40 mm
Height of sensor

77 mm
Rated operation current Ie at AC-15, 24 V

0 A
Rated operation current Ie at AC-15, 230 V

3 A
Rated operation current Ie at DC-13, 125 V

0 A
Switching function

Quick-break switch
Output electronic

No
Number of safety auxiliary contacts

0
Number of contacts as normally open contact

1
Type of interface

None
Construction type housing

Cuboid
Coating housing

Other
Alignment of the control element

Other
With status indication

No
Explosion safety category for gas

None
Ambient temperature during operating

-25 ... 70 °C

Diameter sensor

0 mm
Length of sensor

44 mm
Rated operation current Ie at AC-15, 125 V

0 A
Rated operation current Ie at DC-13, 24 V

0 A
Rated operation current Ie at DC-13, 230 V

0.27 A
Switching function latching

No
Forced opening

Yes
Number of contacts as normally closed contact

1
Number of contacts as change-over contact

0
Type of interface for safety communication

None
Housing material

Metal
Type of control element

None
Type of electric connection

Cable entry metrical
Suitable for safety functions

No
Explosion safety category for dust

None
Degree of protection (IP)

IP65
