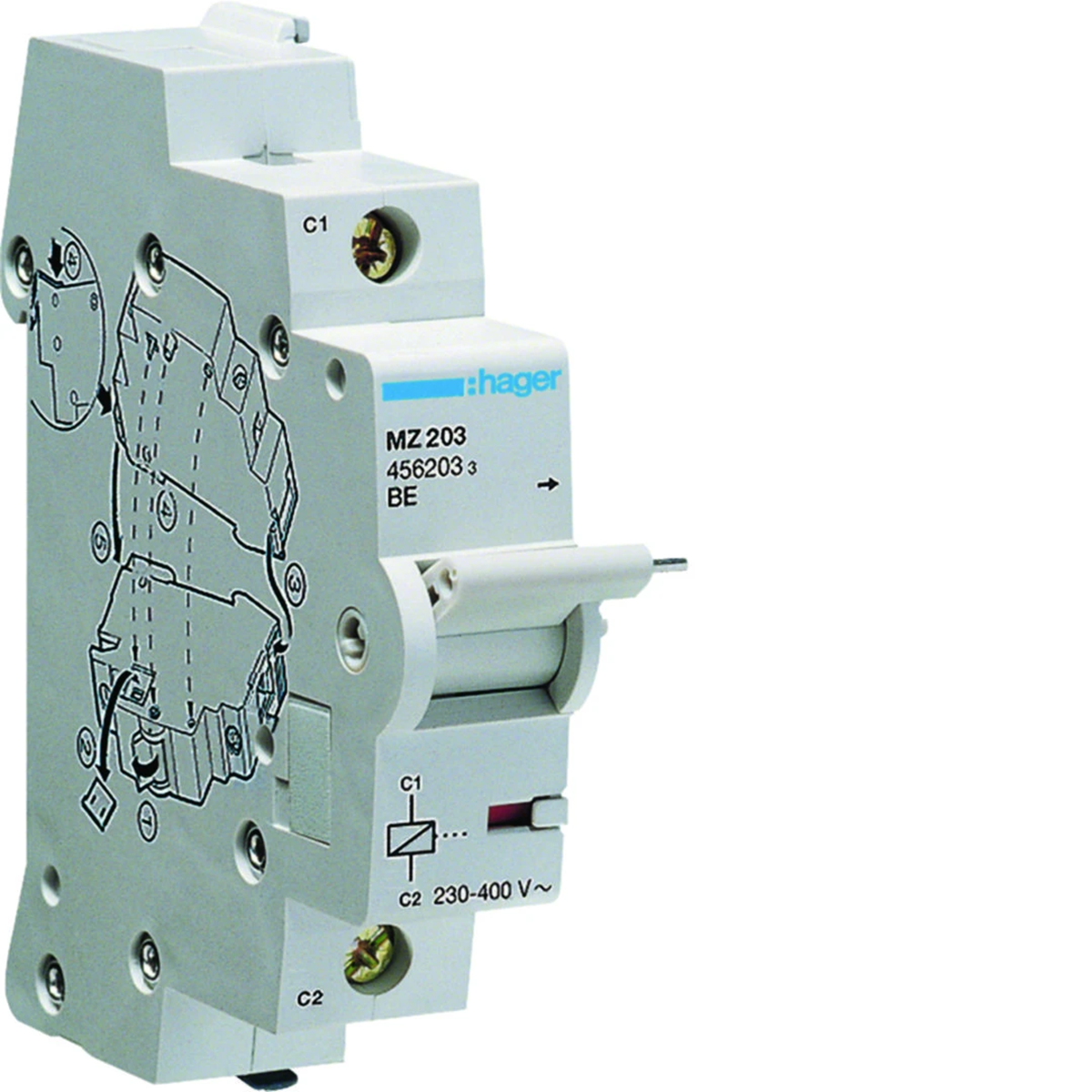

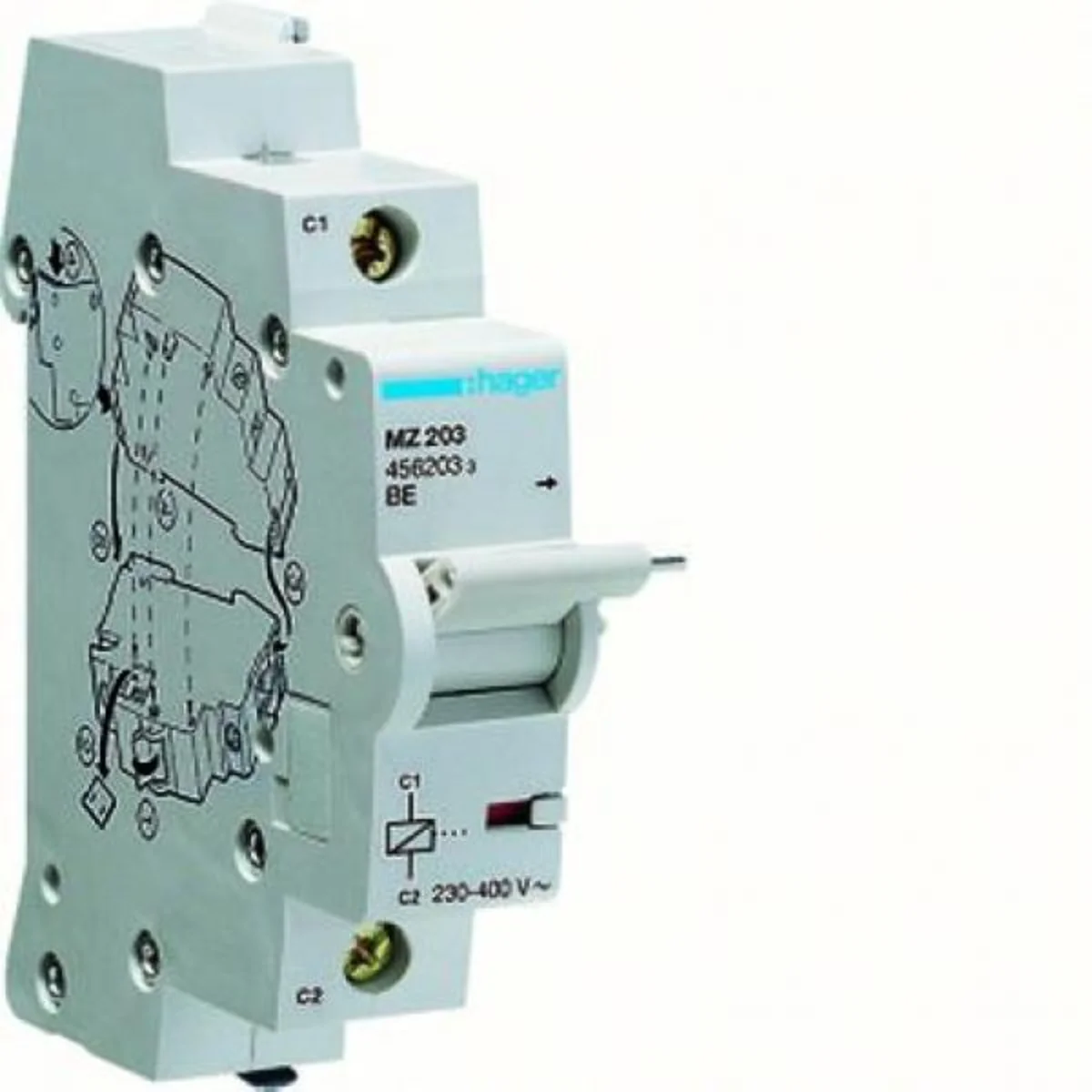

Operating current release for miniature circuit breaker 110-130V DC/230-415V AC MZ203
local index:
ALA202HAGE
Catalog No:
MZ203
EAN code:
3250614562037
Price:
64,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

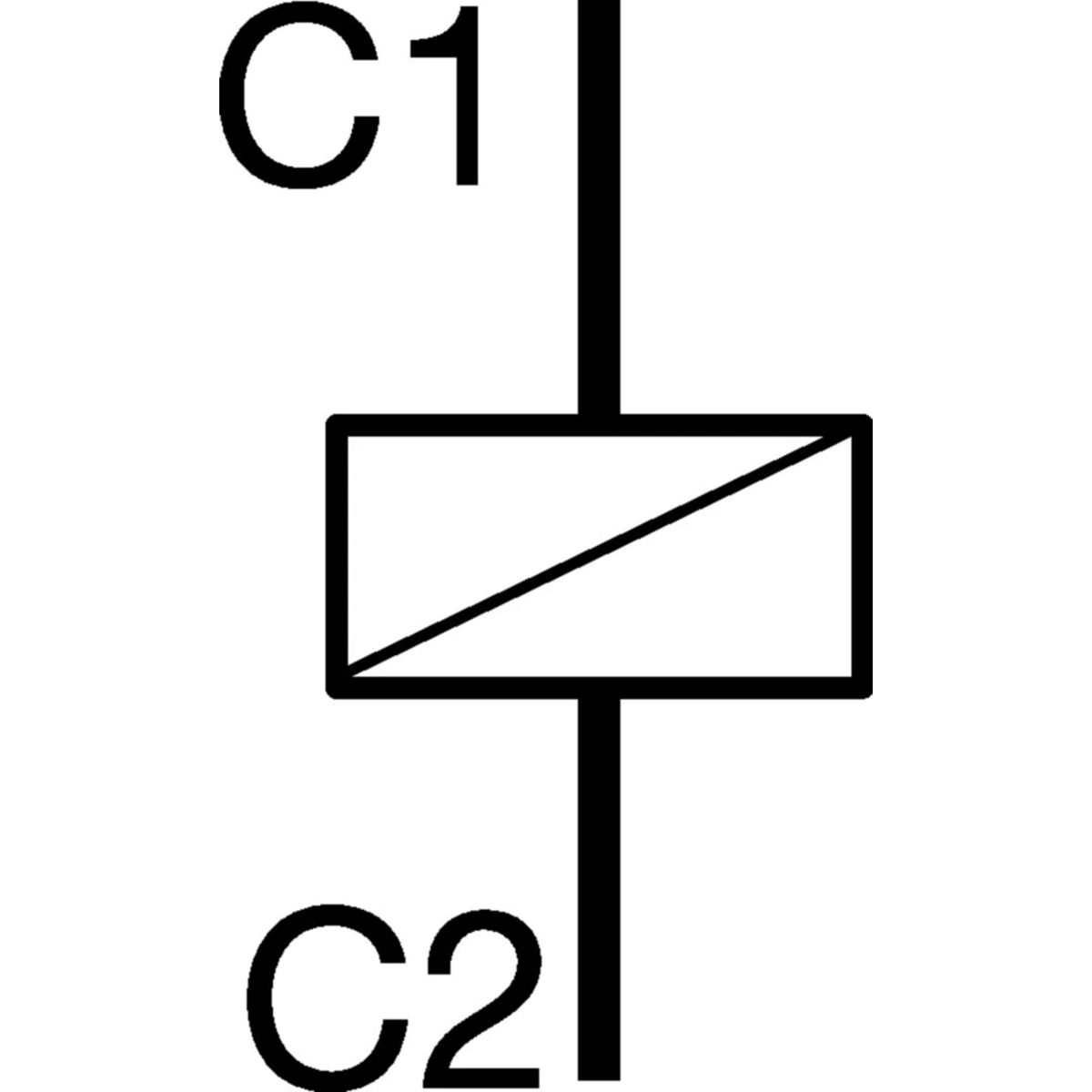

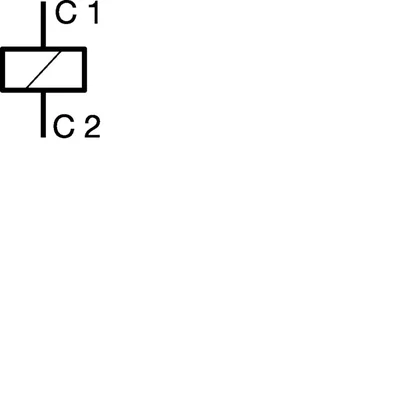

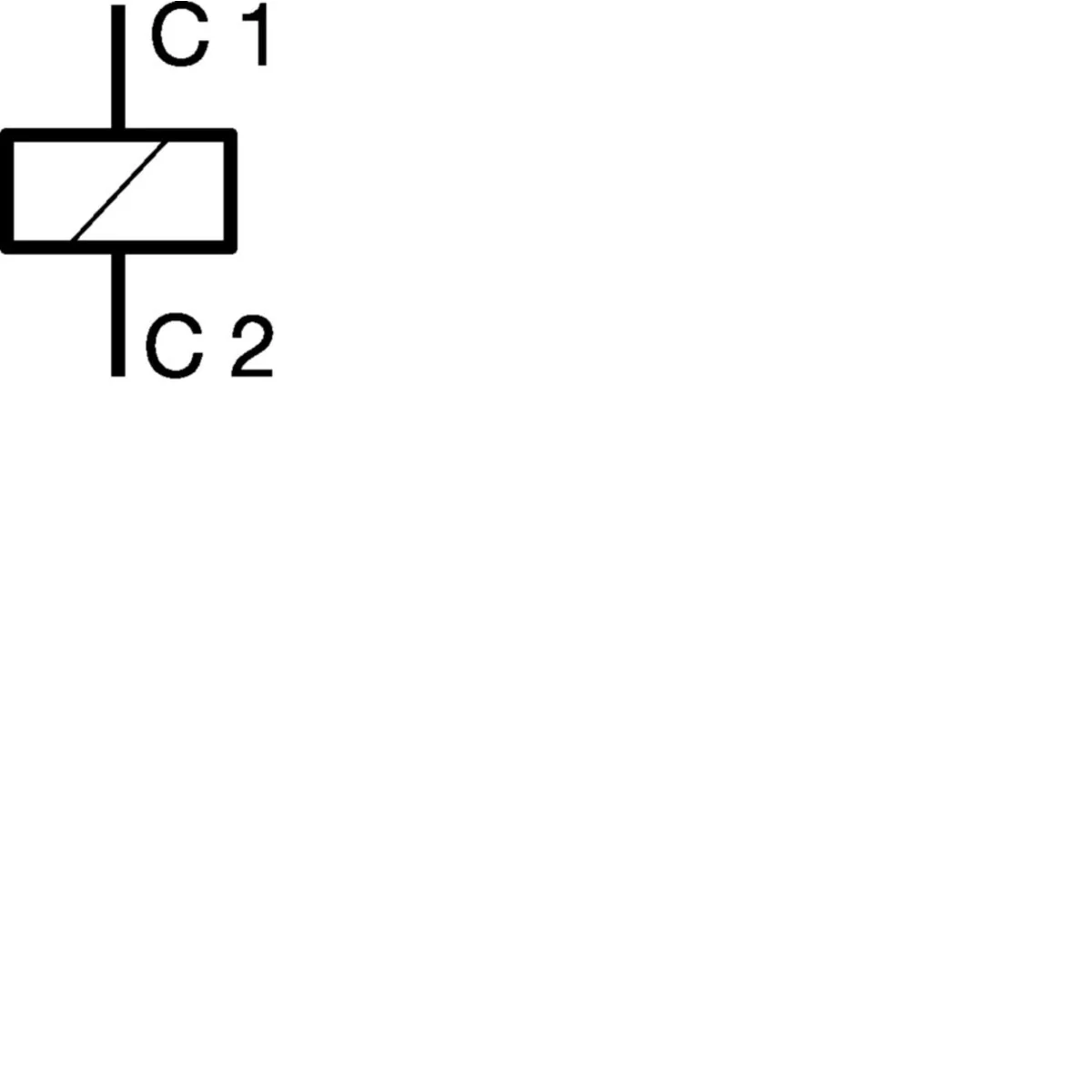

Control by giving an impulse or a continuous signal to the shunt trigger coil
Technical data
-
Depth [mm]68
-
Maximum input power [VA]15
-
Width [mm]18
-
Number of modules1
-
Number of modules1
-
Rated insulation voltage [V]4000
-
Height [mm]83
-
PKWIU27.12.23.0
Other technical data
-
Rated control supply voltage AC 50 Hz230 ... 415 V
-
Rated control supply voltage DC110 ... 130 V
-
Initial value of the undelayed short-circuit release - setting range0 A
-
Type of electric connectionScrew connection
-
Number of contacts as normally closed contact0
-
Suitable for power circuit breakerNo
-
Suitable for motor safety switchNo
-
Rated control supply voltage AC 60 Hz230 ... 415 V
-
Voltage type for actuatingAC/DC
-
End value adjustment range undelayed short-circuit release0 A
-
Number of contacts as normally open contact0
-
Number of contacts as change-over contact0
-
Suitable for off-load switchYes
-
Suitable for overload relayYes
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 1 pcs. | 60 pcs. | 1440 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,100 | 6,540 | 156,960 | 0,100 | 6,540 | 156,960 |
| Width (m) | 0,080 | 0,310 | 0,800 | 0,080 | 0,310 | 0,800 |
| Length (m) | 0,040 | 0,210 | 1,050 | 0,040 | 0,210 | 1,050 |
| Depth (m) | 0,100 | 0,360 | 1,200 | 0,100 | 0,360 | 1,200 |
