El12 and HAGER

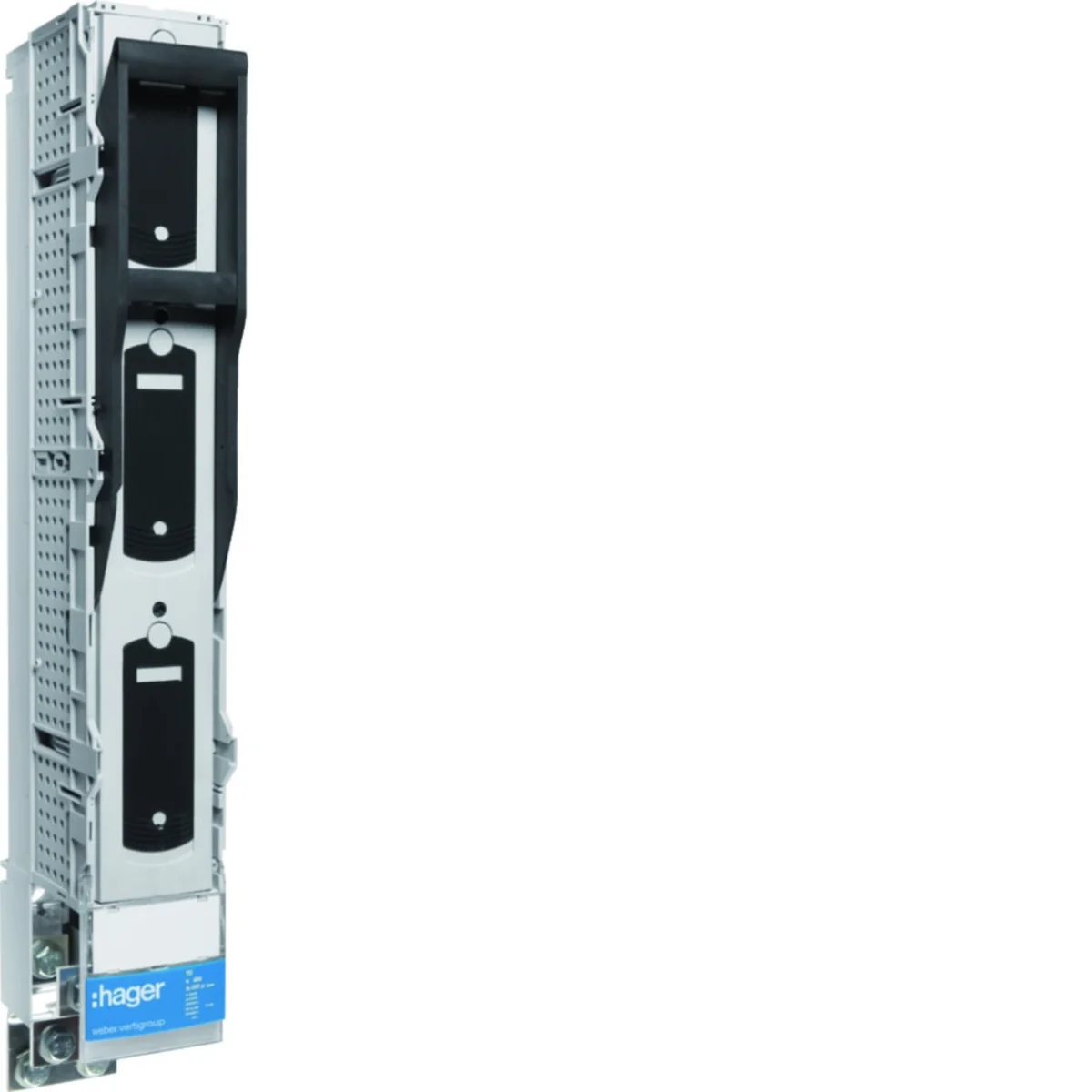

NH3 Power strip 1000A with jumpers, spacing 185mm, 3-pole LVTG1000CP
local index:
ALB148HAGE
Catalog No:
LVTG1000CP
EAN code:
4049857122769
Click on the photo to enlarge
Manufacturer:
HAGER
Number of poles:
3
Tightening torque [Nm]:
32
Rated insulation voltage [V]:
1000
See full description
Price:
432,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Bulk packaging
Product description
NH3 Power strip 1000A with jumpers, spacing 185mm, 3-pole
Technical data
Number of poles
3
Rated insulation voltage [V]
1000
Level of security
IP2X
Width [mm]
100
Fuse link size
NH3
Electrical endurance (number of cycles)
100
Rated switching voltage [V]
690/0/724
Conventional short-circuit current [kA]
120
Wire cross-section (cord) [mm²]
2 x 240
PKWIU
27.33.11.0
Tightening torque [Nm]
32
Rated current [A]
1000
power loss [W]
227
Connection type
Screw connection
Height [mm]
188
Mechanical durability (number of cycles)
500
Rated impulse voltage [kV]
12
storage temperature [°C]
from -25 to 55
Conductor cross-section (wire) [mm²]
2 x 240
Other technical data
Model
Fuse switch disconnector
Rated permanent current Iu
1000 A
Conditioned rated short-circuit current Iq
15 kA
Number of poles
3
Release indication
None
Double interrupting
No
Max. rated operation voltage Ue AC
690 V
Type of electrical connection of main circuit
Screw connection
Construction size fuse insert
NH3
Manufacturer details
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
1 pcs.
50 pcs.
Weight (kg)
7,600
8,000
385,000
Width (m)
0,100
0,220
0,800
Length (m)
0,190
0,110
0,700
Depth (m)
0,743
0,780
1,200
