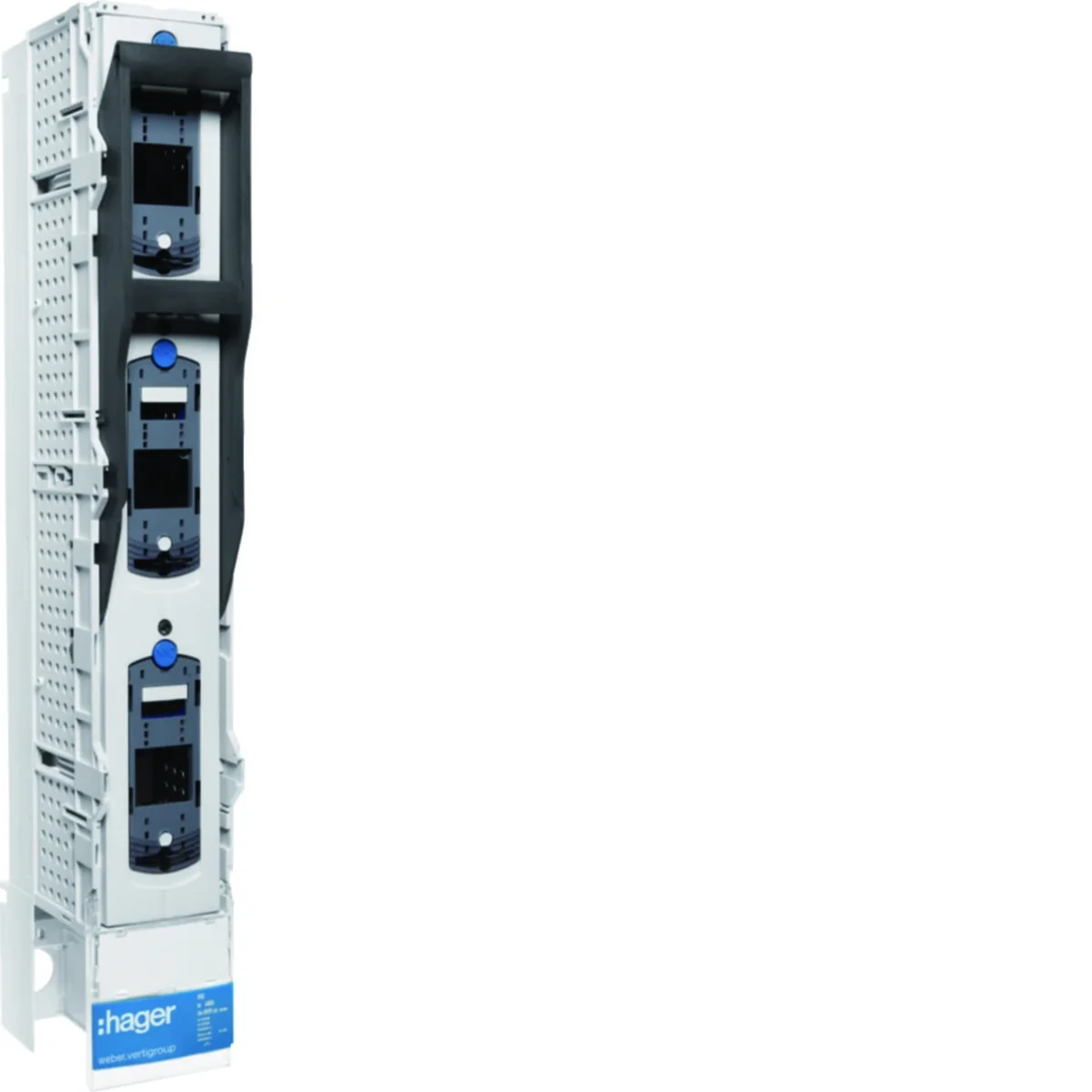

NH3 Coupling strip 630A, spacing 185mm, 3 poles LVSR3TP

local index:
ALB145HAGE
Catalog No:
LVSR3TP
EAN code:
4049857122851
Manufacturer: HAGER
Energy lost in cables [W]: 295
Depth [mm]: 190
Number of poles: 3
Price:
575,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

NH3 Coupling strip 630A, spacing 185mm, 3 poles

Technical data

  • Energy lost in cables [W]
    295
  • Number of poles
    3
  • Rated insulation voltage [V]
    1000
  • Level of security
    IP2X
  • Width [mm]
    100
  • Height [mm]
    260
  • Mechanical durability (number of cycles)
    800
  • Conventional short-circuit current [kA]
    120
  • Rated surge voltage [V]
    8000
  • Conductor cross-section (wire) [mm²]
    300
  • Depth [mm]
    190
  • Tightening torque [Nm]
    32
  • Rated current [A]
    630
  • power loss [W]
    111
  • Fuse link size
    NH3
  • Electrical endurance (number of cycles)
    200
  • Rated switching voltage [V]
    690/0/724
  • storage temperature [°C]
    from -25 to 55
  • Wire cross-section (cord) [mm²]
    70 - 300
  • PKWIU
    27.33.11.0

Other technical data

  • Model
    Fuse switch disconnector
  • Rated permanent current Iu
    630 A
  • Conditioned rated short-circuit current Iq
    120 kA
  • Number of poles
    3
  • Release indication
    None
  • Double interrupting
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Type of electrical connection of main circuit
    Other
  • Construction size fuse insert
    NH3

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 50 pcs.
Weight (kg) 4,454 4,455 245,750
Width (m) 0,100 0,215 0,800
Length (m) 0,190 0,110 1,050
Depth (m) 0,671 0,690 1,200
