El12 and HAGER

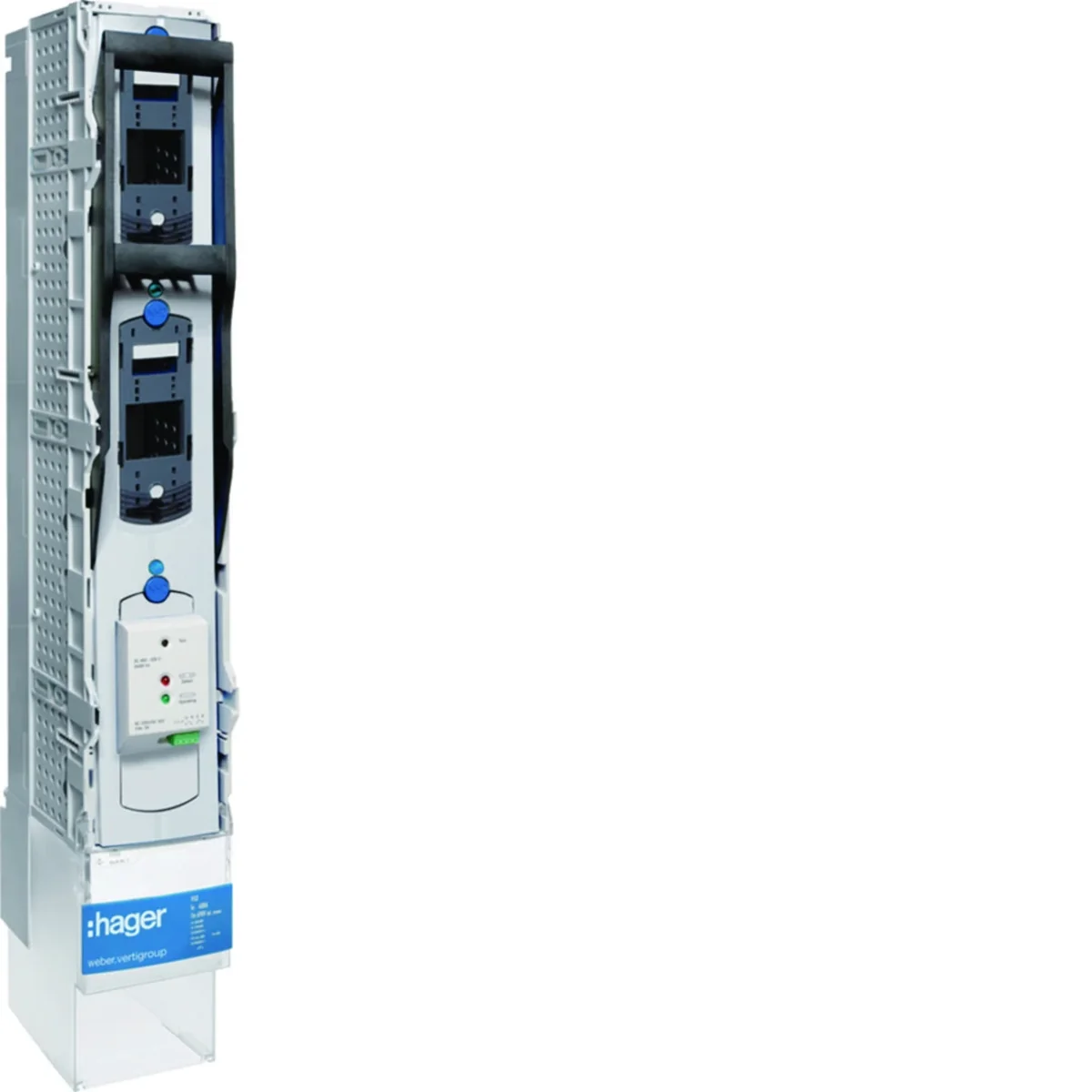

NH3, ch. fuse box 630A for mounting on the busbar system 185mm, LVSG3CPSUX
local index:
ALB140HAGE
Catalog No:
LVSG3CPSUX
EAN code:
4049857133772
Click on the photo to enlarge
Manufacturer:
HAGER
Rated frequency [Hz]:
60
Energy lost in cables [W]:
159.27
Depth [mm]:
190
See full description
Price:
470,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
NH3, ch. fuse box 630A for mounting on the busbar system 185mm,
Technical data
Rated frequency [Hz]
60
Depth [mm]
190
Tightening torque [Nm]
32
Rated current [A]
630
power loss [W]
111
Connection type
Screw connection
Height [mm]
190
Mechanical durability (number of cycles)
800
Rated impulse voltage [kV]
12
storage temperature [°C]
from -40 to 70
Conductor cross-section (wire) [mm²]
300
Energy lost in cables [W]
159.27
Number of poles
3
Rated insulation voltage [V]
1000
Level of security
IP2X
Width [mm]
190
Fuse link size
NH3
Electrical endurance (number of cycles)
200
Rated switching voltage [V]
0/690
Conventional short-circuit current [kA]
120
Wire cross-section (cord) [mm²]
70 - 300
PKWIU
27.33.11.0
Other technical data
Model
Fuse switch disconnector
Rated permanent current Iu
630 A
Conditioned rated short-circuit current Iq
120 kA
Number of poles
3
Release indication
Electronic
Double interrupting
No
Max. rated operation voltage Ue AC
690 V
Type of electrical connection of main circuit
Screw connection
Construction size fuse insert
NH3
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
1 pcs.
100 pcs.
Weight (kg)
5,365
5,758
575,800
Width (m)
0,100
0,240
0,800
Length (m)
0,190
0,260
2,350
Depth (m)
0,671
0,820
1,200
