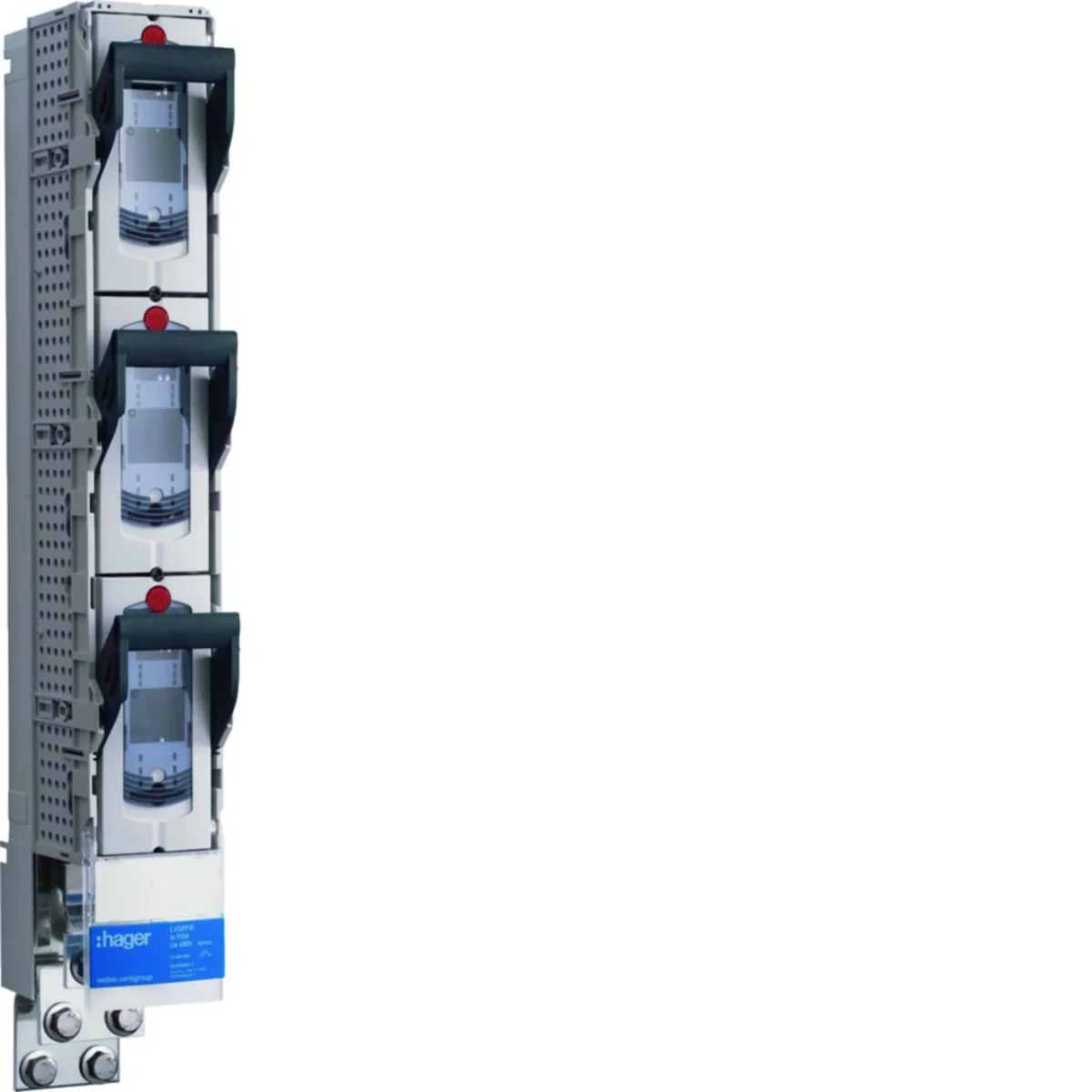

NH3 910A 1P fuse switch disconnector with taps and 2 holes 12mm LVSR910LLE

local index:
ALB146HAGE
Catalog No:
LVSR910LLE
EAN code:
4049857138524
Manufacturer: HAGER
Energy lost in cables [W]: 70
Number of poles: 1
Tightening torque [Nm]: 32
Price:
594,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

NH3 910A 1P fuse switch disconnector with taps and 2 holes 12mm

Technical data

  • Energy lost in cables [W]
    70
  • Tightening torque [Nm]
    32
  • Rated current [A]
    910
  • Width [mm]
    100
  • Fuse link size
    NH3
  • Electrical endurance (number of cycles)
    100
  • Rated switching voltage [V]
    0/400
  • Conventional short-circuit current [kA]
    50
  • Wire cross-section (cord) [mm²]
    2 x 300
  • PKWIU
    27.33.11.0
  • Number of poles
    1
  • Rated insulation voltage [V]
    690
  • power loss [W]
    158
  • Connection type
    Screw connection
  • Height [mm]
    190
  • Mechanical durability (number of cycles)
    500
  • Rated impulse voltage [kV]
    12
  • storage temperature [°C]
    from -25 to 55
  • Conductor cross-section (wire) [mm²]
    2 x 300

Other technical data

  • Model
    Fuse switch disconnector
  • Rated permanent current Iu
    910 A
  • Conditioned rated short-circuit current Iq
    50 kA
  • Number of poles
    1
  • Release indication
    None
  • Double interrupting
    No
  • Max. rated operation voltage Ue AC
    400 V
  • Type of electrical connection of main circuit
    Screw connection
  • Construction size fuse insert
    NH3

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 20 pcs.
Weight (kg) 9,630 9,680 193,600
Width (m) 0,100 0,475 0,800
Length (m) 0,218 0,260 0,590
Depth (m) 0,834 0,810 1,200
