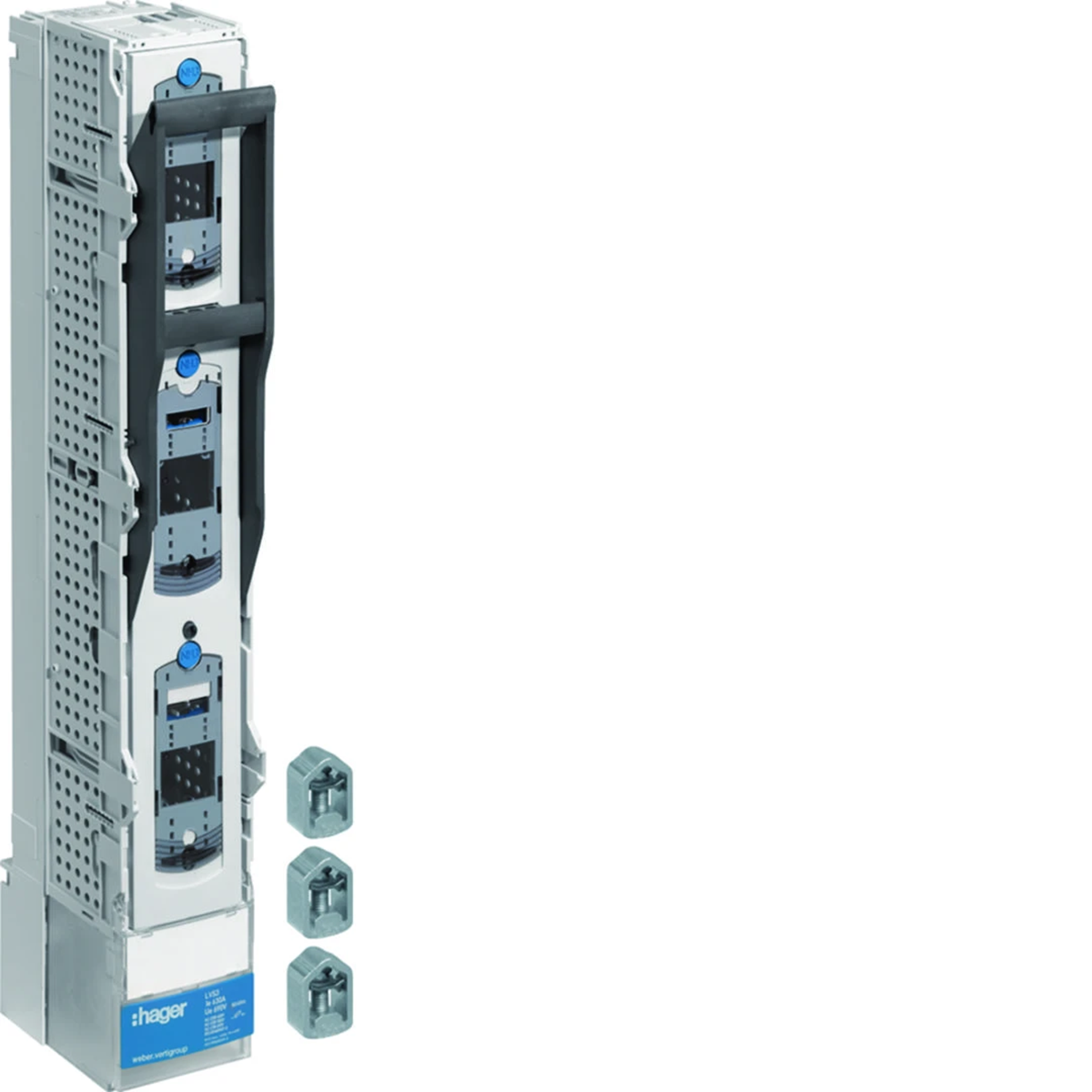

NH3 630A switch-disconnector, spacing 185mm, with V-clamp up to 300mm2, 3-pole LVSR3VPVK4

local index:
ALB039HAGE
Catalog No:
LVSR3VPVK4
EAN code:
4049857130702
Manufacturer: HAGER
Number of poles: 3
Rated insulation voltage [V]: 1000
Surge voltage [V]: 12000
Price:
318,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Glass, cylindrical, system D and knife fuses. Luminaires and sockets as well as fuse bases and switch disconnectors. A comprehensive offer of protections fully adapted to the needs of professional power engineering and various industries. In order to meet the expectations of the customer, Hager has introduced two trip signaling solutions for NH fuses. Fuses with an upper trip indicator are mainly intended for fuse bases, where the visibility of this indicator is good due to the lack of covers. Fuses with a double combined indicator are designed for fuse switch disconnectors. The indicator, which is located on the front plate of the porcelain body, is perfectly visible in the inspection windows that have fuse switches. Using such a solution significantly shortens the time of locating a damaged fuse.

Technical data

  • Number of poles
    3
  • Surge voltage [V]
    12000
  • Short-circuit current [kA]
    120
  • Width [mm]
    100
  • Height [mm]
    364
  • Mechanical durability (number of cycles)
    800
  • PKWIU
    27.33.11.0
  • Rated insulation voltage [V]
    1000
  • Rated current [A]
    630
  • power loss [W]
    111
  • Size
    NH3
  • Electrical endurance (number of cycles)
    200
  • Rated switching voltage [V]
    690/0/724

Other technical data

  • Model
    Fuse switch disconnector
  • Rated permanent current Iu
    630 A
  • Conditioned rated short-circuit current Iq
    120 kA
  • Number of poles
    3
  • Release indication
    None
  • Double interrupting
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Type of electrical connection of main circuit
    Other
  • Construction size fuse insert
    NH3

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 50 pcs.
Weight (kg) 5,600 5,700 310,000
Width (m) 0,215 0,215 0,800
Length (m) 0,107 0,107 1,230
Depth (m) 0,690 0,690 1,200
