El12 and HAGER

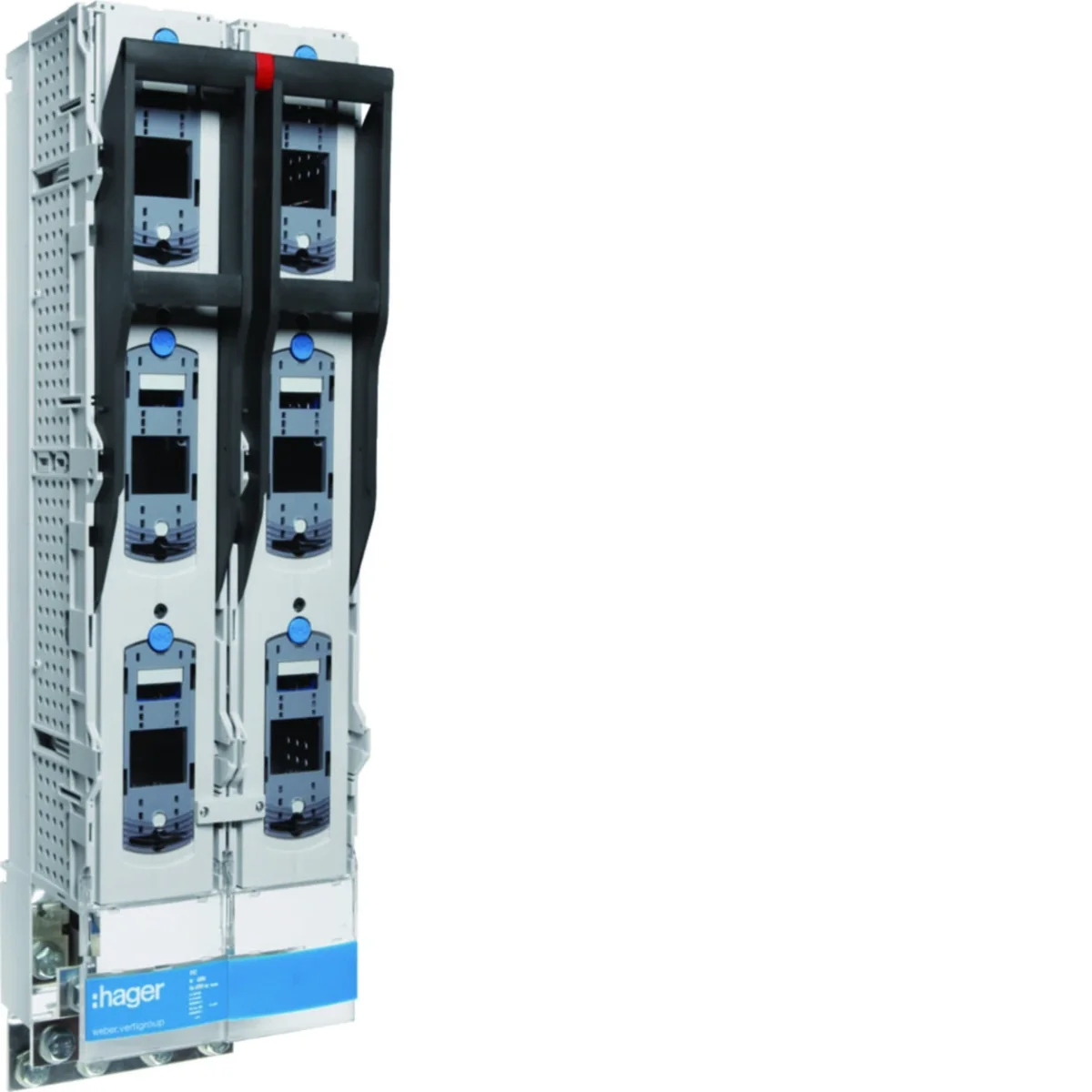

NH3 1260A Twin strip 2x630A 185mm M12 3B LVDR1260CPX
local index:
ALB130HAGE
Catalog No:
LVDR1260CPX
EAN code:
4049857125159
Click on the photo to enlarge
Manufacturer:
HAGER
Rated frequency [Hz]:
60
Depth [mm]:
190
Number of poles:
3
See full description
Price:
695,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
NH3 1260A Twin strip 2x630A 185mm M12 3B
Technical data
Rated frequency [Hz]
60
Number of poles
3
Rated insulation voltage [V]
1000
Level of security
IP2X
Width [mm]
200
Height [mm]
190
Mechanical durability (number of cycles)
500
Rated switching voltage [V]
690/400/690
Rated current at 40°C [A]
1260
Rated current at 50°C [A]
1134
Rated current at 60°C [A]
1008
Rated current at 70°C [A]
875
storage temperature [°C]
from -40 to 70
Conductor cross-section (wire) [mm²]
4 x 240
Depth [mm]
190
Tightening torque [Nm]
32
Rated current [A]
1260
power loss [W]
255
Fuse link size
NH3
Electrical endurance (number of cycles)
100
Operating temperature range [°C]
from -25 to 55
Rated impulse voltage [kV]
12
Rated current at 45°C [A]
1197
Rated current at 55°C [A]
1071
Rated current at 65°C [A]
937.5
Conventional short-circuit current [kA]
80
Wire cross-section (cord) [mm²]
4 x 240
PKWIU
27.33.11.0
Other technical data
Model
Fuse switch disconnector
Rated permanent current Iu
1260 A
Conditioned rated short-circuit current Iq
120 kA
Number of poles
3
Release indication
None
Double interrupting
No
Max. rated operation voltage Ue AC
690 V
Type of electrical connection of main circuit
Other
Construction size fuse insert
NH3
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
1 pcs.
12 pcs.
Weight (kg)
12,350
12,405
148,860
Width (m)
0,200
0,245
0,820
Length (m)
0,190
0,260
0,930
Depth (m)
0,740
0,810
1,200
