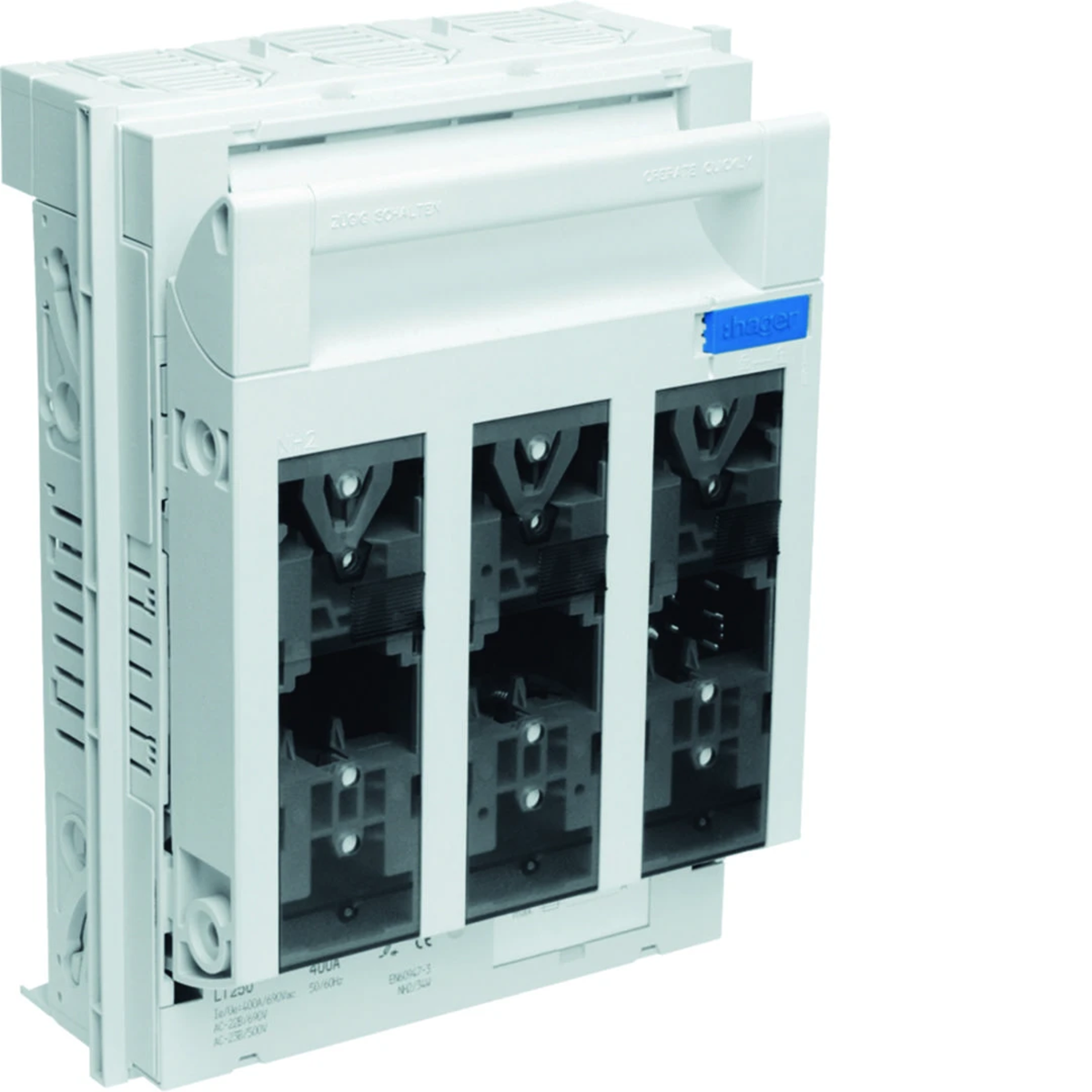

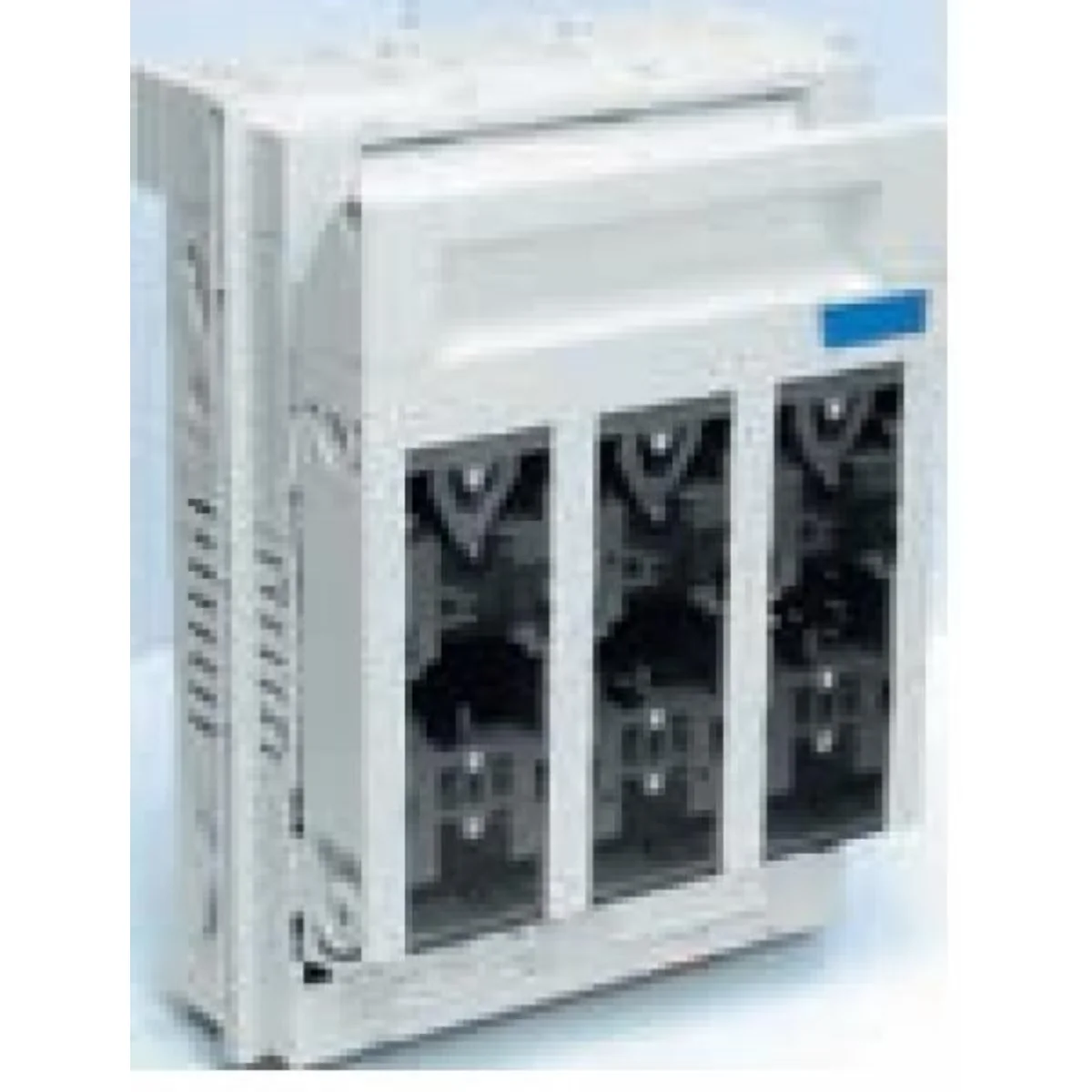

NH2 fuse switch disconnector 3x400A LT250

local index:
ALB011HAGE
Catalog No:
LT250
EAN code:
3250614202506
Manufacturer: HAGER
Depth [mm]: 130
Number of poles: 3
Surge voltage [kV]: 8000
Price:
193,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Mounting plate NH fuse switch disconnectors, univers

Technical data

  • Depth [mm]
    130
  • Surge voltage [kV]
    8000
  • Rated insulation voltage [V]
    1000
  • Short-circuit current [kA]
    50
  • Width [mm]
    210
  • Height [mm]
    306
  • Number of poles
    3
  • Rated voltage [V]
    690
  • Rated current [A]
    400
  • Power dissipation [W]
    102
  • Fuse link size
    NH2
  • PKWIU
    27.33.11.0

Other technical data

  • Wyposażenie obudowy
    Z rozłącznikiem bezpiecznikowym
  • Rated operation current Ie
    400 A
  • Rated insulation voltage Ui
    1000 V
  • With error protection
    No
  • Degree of protection (IP)
    IP3X
  • Number of poles
    3
  • Max. rated operation voltage Ue AC
    690 V
  • Construction size fuse inserts
    NH2
  • Height of housing
    308 mm
  • Degree of protection (NEMA)
    1

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 50 pcs.
Weight (kg) 3,179 3,180 184,000
Width (m) 0,195 0,195 0,800
Length (m) 0,120 0,120 0,850
Depth (m) 0,330 0,330 1,200
