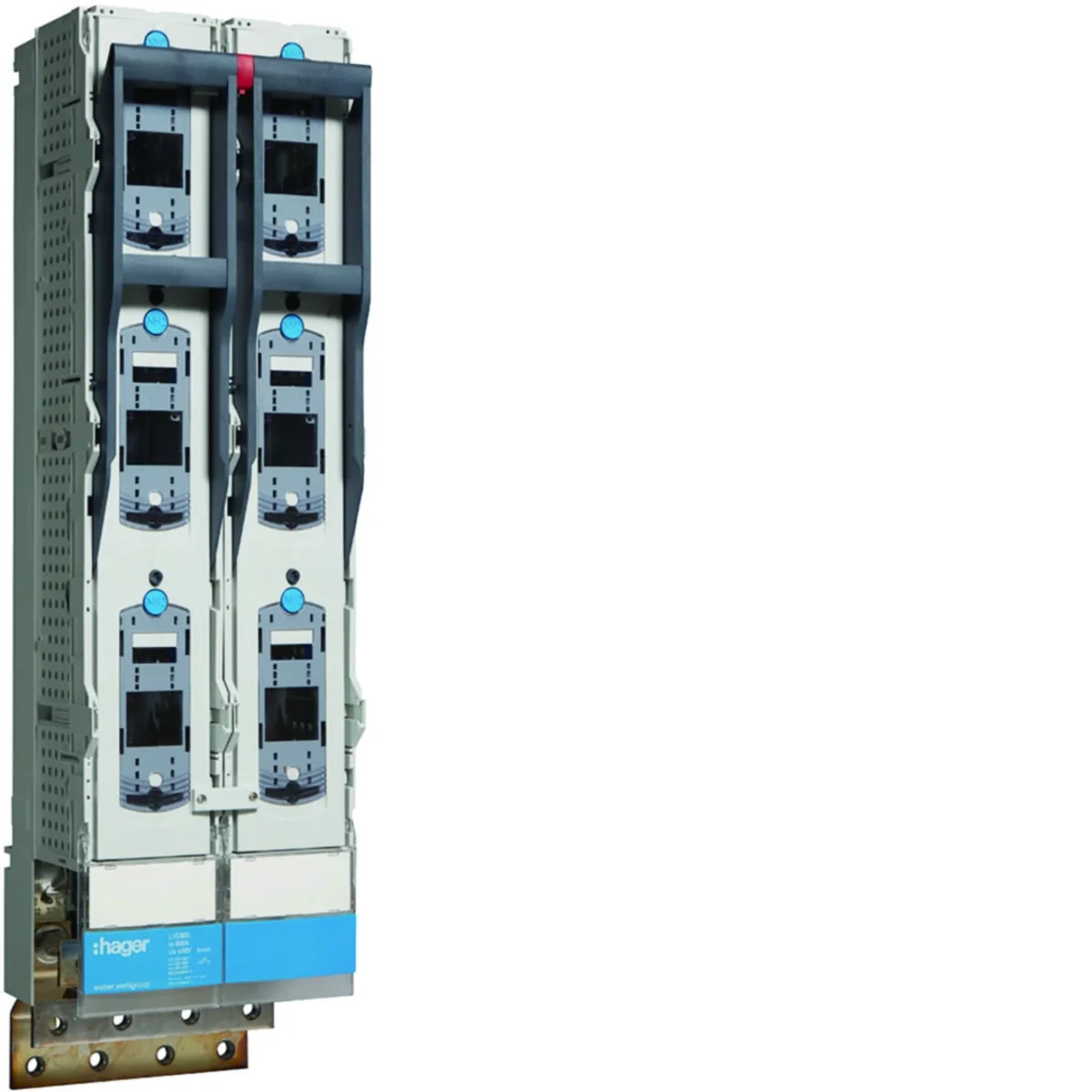

NH2 800A Twin strip 2x400A 185mm M12 3B LVDR800CPX
local index:
ALB131HAGE
Catalog No:
LVDR800CPX
EAN code:
4049857125104
Price:
654,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
NH2 800A Twin strip 2x400A 185mm M12 3B
Technical data
-
Energy lost in cables [W]205
-
Number of poles3
-
Rated insulation voltage [V]1000
-
Level of securityIP2X
-
Width [mm]200
-
Fuse link sizeNH2
-
Electrical endurance (number of cycles)200
-
Rated switching voltage [V]690/0/724
-
Conventional short-circuit current [kA]240
-
Conductor cross-section (wire) [mm²]4 x 240
-
Depth [mm]190
-
Tightening torque [Nm]32
-
Rated current [A]800
-
power loss [W]120
-
Connection typeScrew connection
-
Height [mm]260
-
Mechanical durability (number of cycles)800
-
Rated impulse voltage [kV]12
-
Wire cross-section (cord) [mm²]4 x 240
-
PKWIU27.33.11.0
Other technical data
-
ModelFuse switch disconnector
-
Rated permanent current Iu800 A
-
Conditioned rated short-circuit current Iq120 kA
-
Number of poles3
-
Release indicationNone
-
Double interruptingNo
-
Max. rated operation voltage Ue AC690 V
-
Type of electrical connection of main circuitScrew connection
-
Construction size fuse insertNH2
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 25 pcs. |
| Weight (kg) | 12,165 | 12,166 | 329,150 |
| Width (m) | 0,240 | 0,240 | 0,810 |
| Length (m) | 0,260 | 0,260 | 2,040 |
| Depth (m) | 0,810 | 0,810 | 1,200 |
