NH2 400A 185 mm spacing, with V-clamp up to 300 mm2, 3 poles LVSR2VPVK4
local index:
ALB144HAGE
Catalog No:
LVSR2VPVK4
EAN code:
4049857130696
Manufacturer:
HAGER
Number of poles: 3
Tightening torque [Nm]: 32
Rated insulation voltage [V]: 1000
Price:
292,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

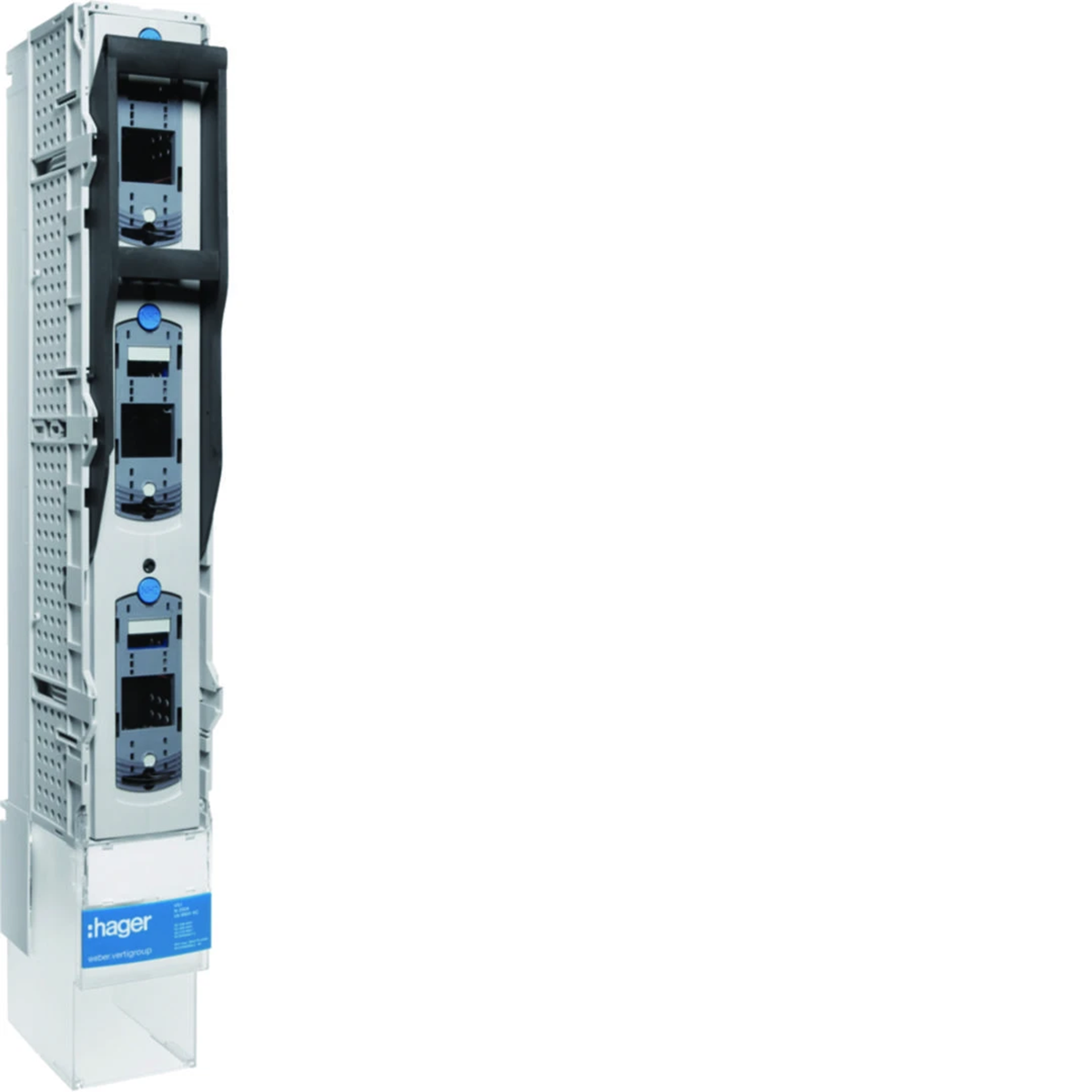

NH2 400A 185 mm spacing, with V-clamp up to 300 mm2, 3 poles
Technical data
-
Number of poles3
-
Rated insulation voltage [V]1000
-
Level of securityIP2X
-
Width [mm]100
-
Height [mm]364
-
Mechanical durability (number of cycles)800
-
Rated impulse voltage [kV]12
-
storage temperature [°C]from -25 to 55
-
Conductor cross-section (wire) [mm²]300
-
Tightening torque [Nm]32
-
Rated current [A]400
-
power loss [W]56
-
Fuse link sizeNH2
-
Electrical endurance (number of cycles)200
-
Rated switching voltage [V]690/0/724
-
Conventional short-circuit current [kA]120
-
Wire cross-section (cord) [mm²]70 - 300
-
PKWIU27.33.11.0
Other technical data
-
ModelFuse switch disconnector
-
Rated permanent current Iu400 A
-
Conditioned rated short-circuit current Iq120 kA
-
Number of poles3
-
Release indicationNone
-
Double interruptingNo
-
Max. rated operation voltage Ue AC690 V
-
Type of electrical connection of main circuitOther
-
Construction size fuse insertNH2
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 50 pcs. |
| Weight (kg) | 4,746 | 5,085 | 277,250 |
| Width (m) | 0,100 | 0,210 | 0,800 |
| Length (m) | 0,190 | 0,110 | 1,100 |
| Depth (m) | 0,671 | 0,690 | 1,200 |
