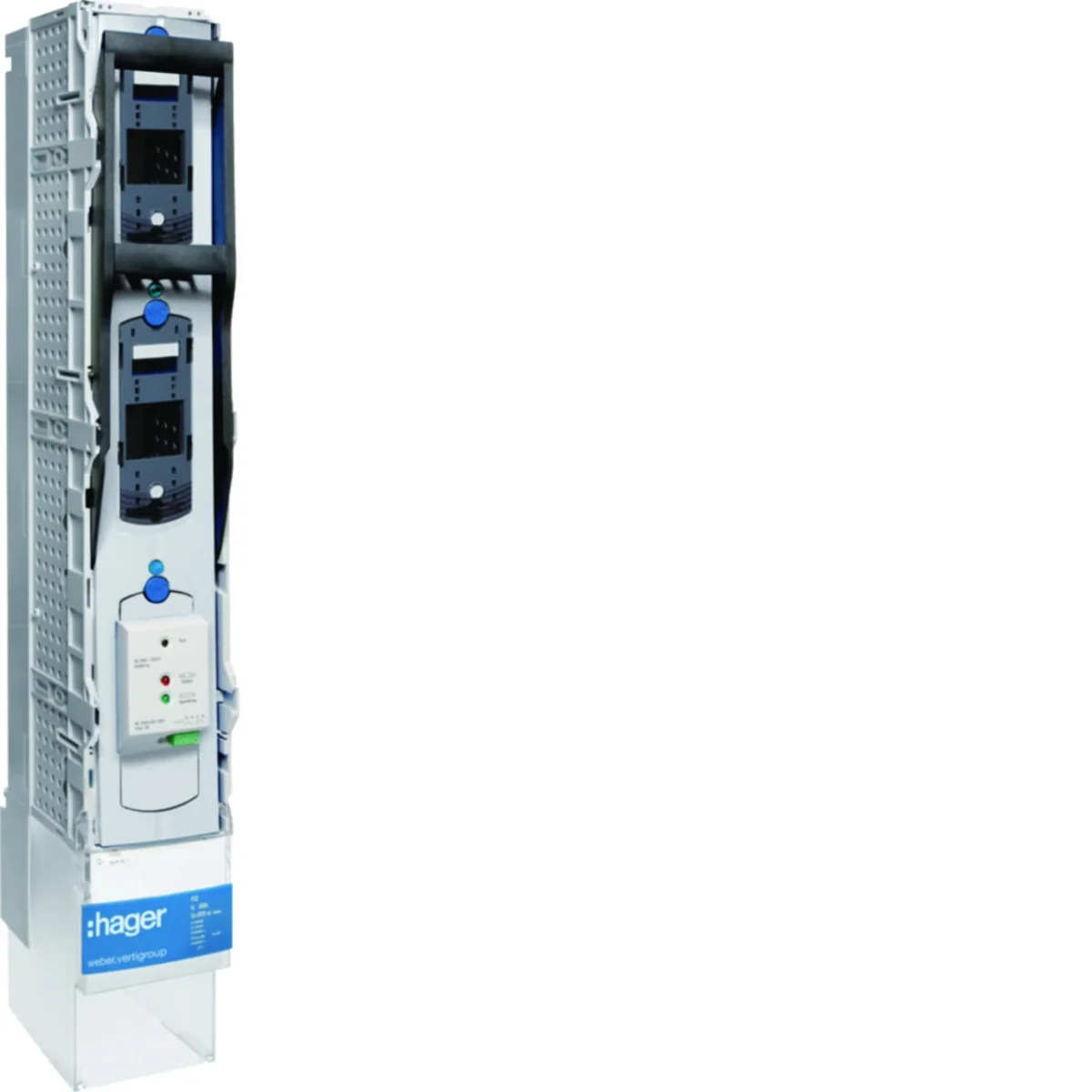

NH1, ch. fuse box 250A for mounting on the busbar system. 185mm, LVSG1CPSUX
local index:
ALB138HAGE
Catalog No:
LVSG1CPSUX
EAN code:
4049857133321
Manufacturer:
HAGER
Number of poles: 3
Tightening torque [Nm]: 32
Rated insulation voltage [V]: 1000
Price:
398,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
NH1, ch. fuse box 250A for mounting on the busbar system. 185mm,
Technical data
-
Number of poles3
-
Rated insulation voltage [V]1000
-
Level of securityIP2X
-
Width [mm]190
-
Fuse link sizeNH1
-
Electrical endurance (number of cycles)200
-
Rated switching voltage [V]0/690/724
-
Conventional short-circuit current [kA]120
-
Wire cross-section (cord) [mm²]240
-
PKWIU27.33.11.0
-
Tightening torque [Nm]32
-
Rated current [A]250
-
power loss [W]27
-
Connection typeScrew connection
-
Height [mm]100
-
Mechanical durability (number of cycles)1400
-
Rated impulse voltage [kV]12
-
storage temperature [°C]from -25 to 55
-
Conductor cross-section (wire) [mm²]240
Other technical data
-
ModelFuse switch disconnector
-
Rated permanent current Iu250 A
-
Conditioned rated short-circuit current Iq120 kA
-
Number of poles3
-
Release indicationElectronic
-
Double interruptingNo
-
Max. rated operation voltage Ue AC690 V
-
Type of electrical connection of main circuitScrew connection
-
Construction size fuse insertNH1
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 50 pcs. |
| Weight (kg) | 4,402 | 4,800 | 440,300 |
| Width (m) | 0,100 | 0,220 | 0,800 |
| Length (m) | 0,190 | 0,110 | 1,250 |
| Depth (m) | 0,671 | 0,960 | 1,200 |
