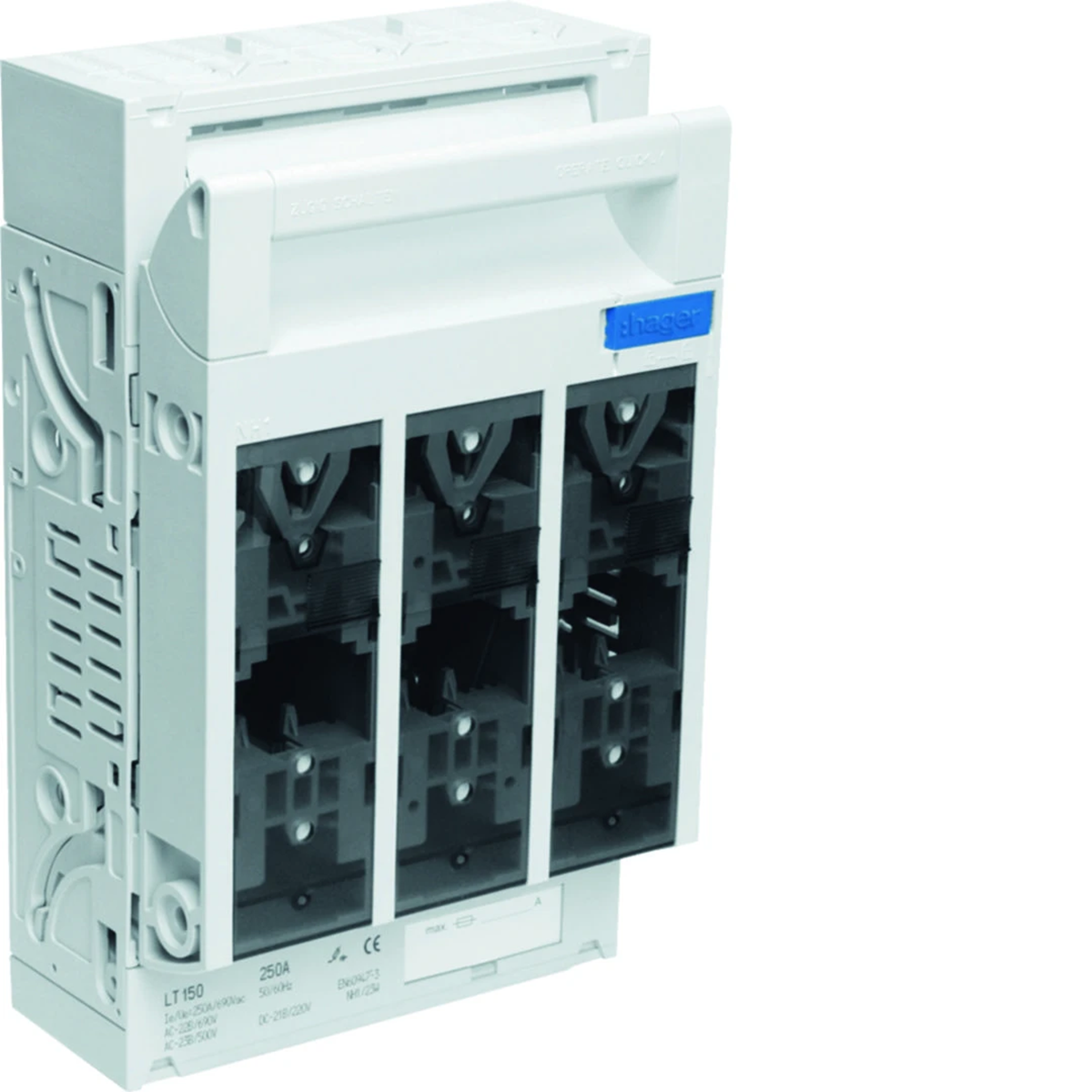

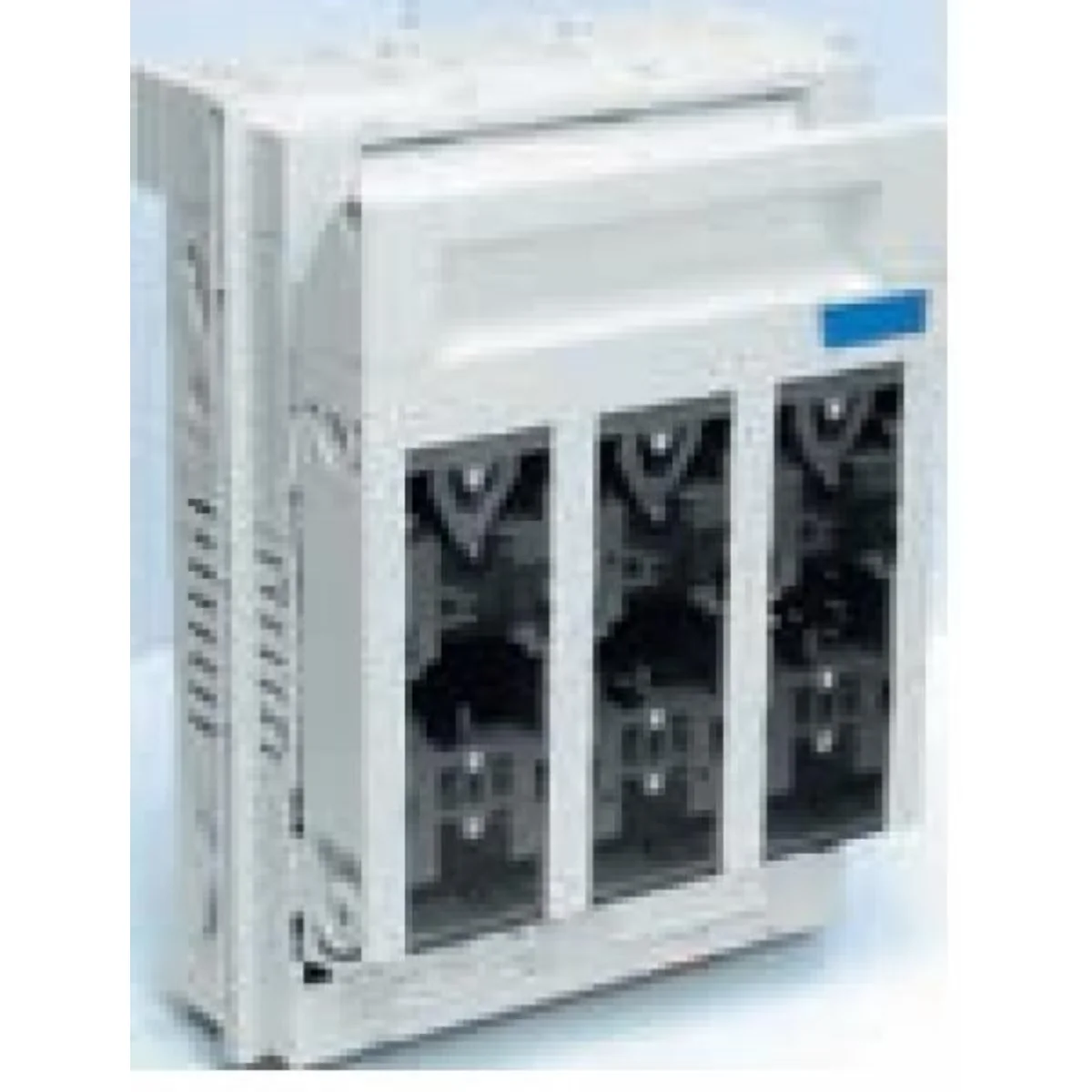

NH1 3x250A fuse switch disconnector LT150

local index:
ALI003HAGE
Catalog No:
LT150
EAN code:
3250614201509
Manufacturer: HAGER
Rated current [A]: 250
Type of fuse: NH1
Price:
147,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Mounting plate NH fuse switch disconnectors, univers

Technical data

  • Rated current [A]
    250
  • PKWIU
    27.33.11.0
  • Type of fuse
    NH1

Other technical data

  • Wyposażenie obudowy
    Z rozłącznikiem bezpiecznikowym
  • Rated operation current Ie
    250 A
  • Rated insulation voltage Ui
    1000 V
  • With error protection
    No
  • Degree of protection (IP)
    IP3X
  • Number of poles
    3
  • Max. rated operation voltage Ue AC
    690 V
  • Construction size fuse inserts
    NH1
  • Height of housing
    304 mm
  • Degree of protection (NEMA)
    1

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 84 pcs.
Weight (kg) 2,150 2,290 217,360
Width (m) 0,184 0,195 0,800
Length (m) 0,110 0,122 1,150
Depth (m) 0,303 0,325 1,200
