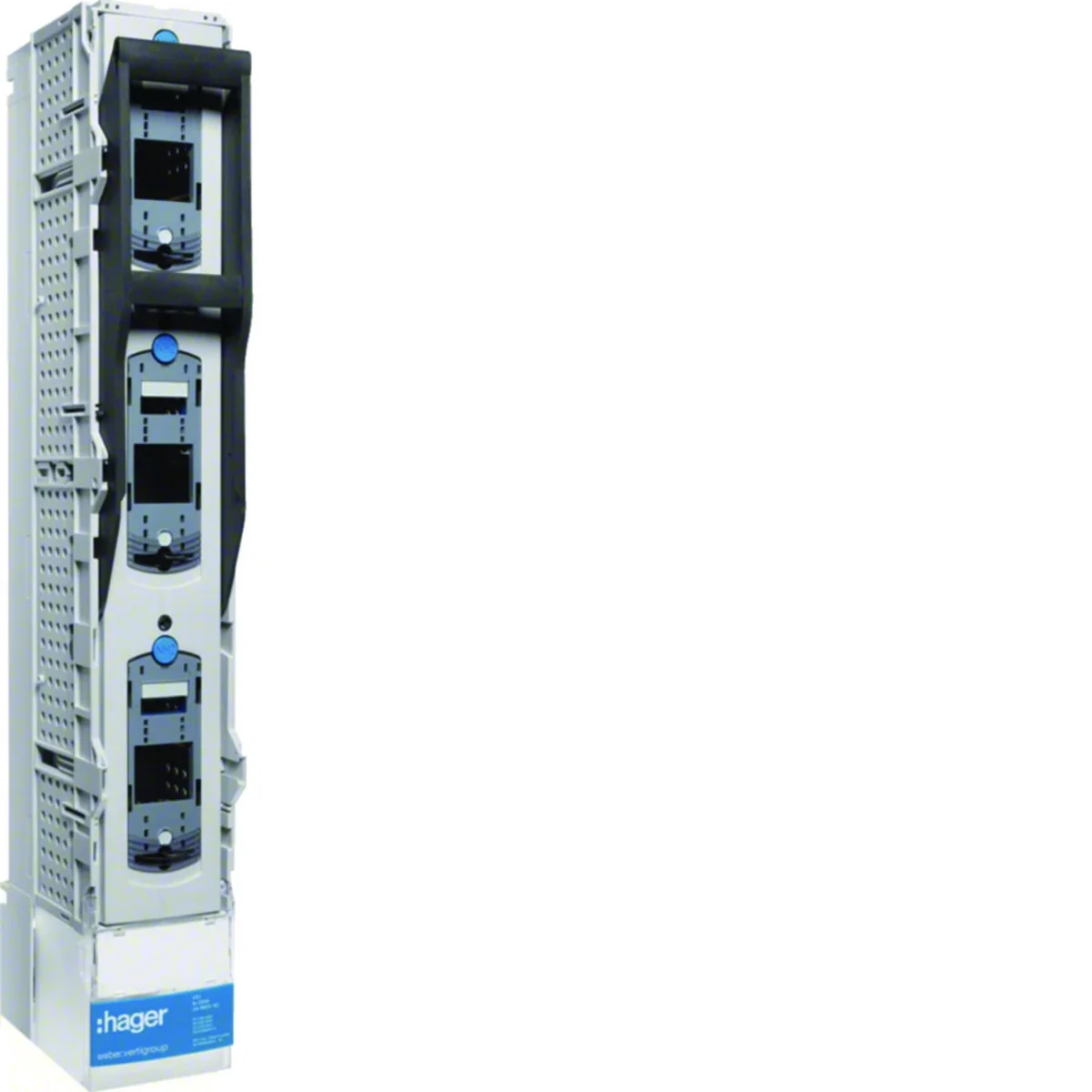

NH1 250A Switch disconnector, spacing 185mm, with V-clamp up to 300mm2, 3pole LVSR1VPVK4

local index:
ALB143HAGE
Catalog No:
LVSR1VPVK4
EAN code:
4049857130689
Manufacturer: HAGER
Rated frequency [Hz]: 60
Number of poles: 3
Tightening torque [Nm]: 32
Price:
279,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

NH1 250A Switch-disconnector, spacing 185mm, with V-clamp up to 300mm2, 3pole

Technical data

  • Rated frequency [Hz]
    60
  • Tightening torque [Nm]
    32
  • Rated current [A]
    250
  • power loss [W]
    27
  • Fuse link size
    NH1
  • Electrical endurance (number of cycles)
    200
  • Operating temperature range [°C]
    from -25 to 55
  • Rated impulse voltage [kV]
    12
  • storage temperature [°C]
    from -25 to 55
  • Conductor cross-section (wire) [mm²]
    300
  • Number of poles
    3
  • Rated insulation voltage [V]
    1000
  • Level of security
    IP2X
  • Width [mm]
    100
  • Height [mm]
    364
  • Mechanical durability (number of cycles)
    1400
  • Rated switching voltage [V]
    690/0/724
  • Conventional short-circuit current [kA]
    120
  • Wire cross-section (cord) [mm²]
    70 - 300
  • PKWIU
    27.33.11.0

Other technical data

  • Model
    Fuse switch disconnector
  • Rated permanent current Iu
    250 A
  • Conditioned rated short-circuit current Iq
    120 kA
  • Number of poles
    3
  • Release indication
    None
  • Double interrupting
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Type of electrical connection of main circuit
    Other
  • Construction size fuse insert
    NH1

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 50 pcs.
Weight (kg) 4,380 4,665 256,250
Width (m) 0,100 0,210 0,800
Length (m) 0,190 0,110 1,050
Depth (m) 0,671 0,690 1,200
