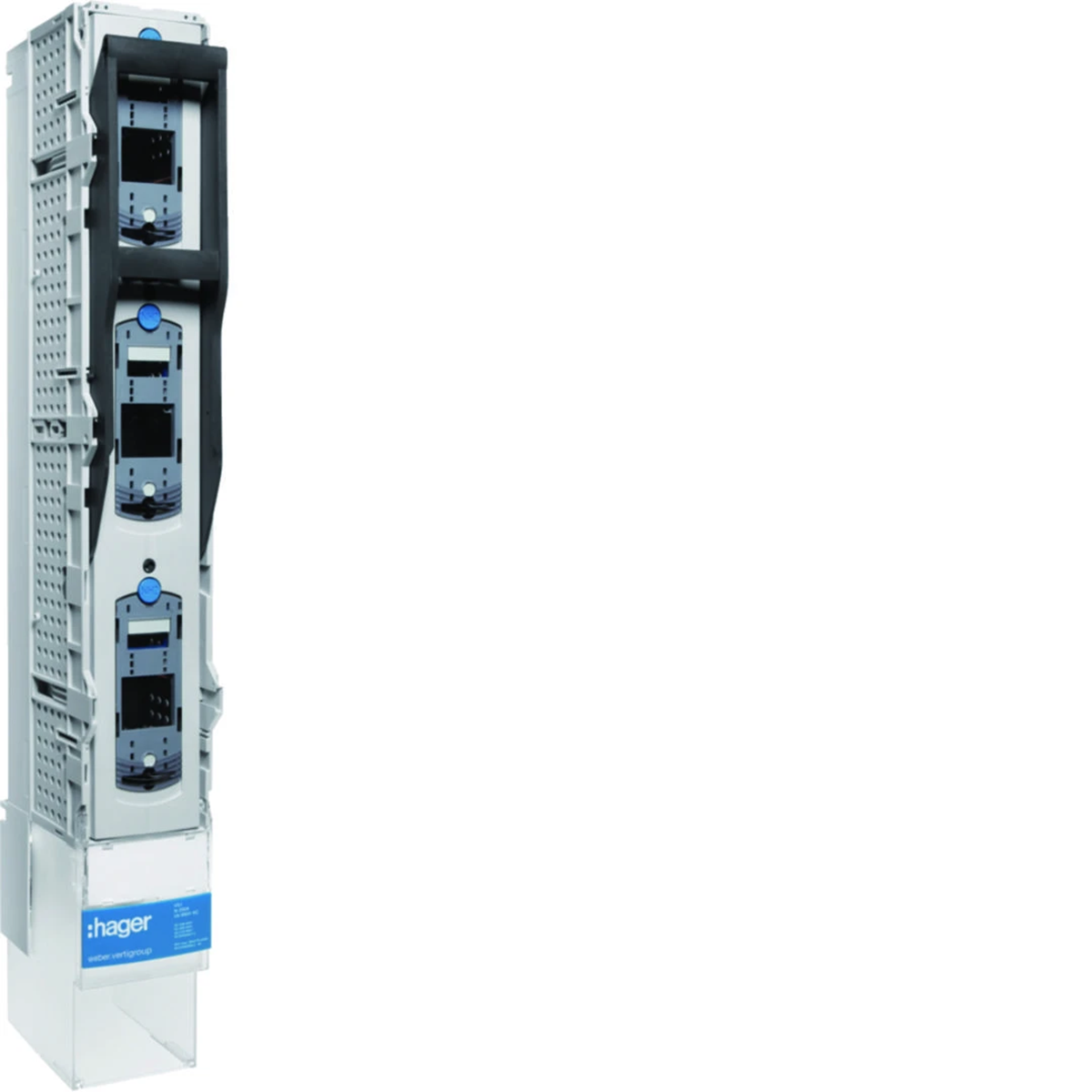

NH1 250A Strip switch disconnector, spacing 185mm, M12 terminal, 3-pole LVSG1CPX

local index:
ALB055HAGE
Catalog No:
LVSG1CPX
EAN code:
4049857124817
Manufacturer: HAGER
Depth [mm]: 190
Number of poles: 3
Tightening torque [Nm]: 32
Price:
198,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

NH1 250A Strip switch disconnector, spacing 185mm, M12 terminal, 3-pole

Technical data

  • Depth [mm]
    190
  • Tightening torque [Nm]
    32
  • Rated current [A]
    250
  • power loss [W]
    27
  • Connection type
    Screw connection
  • Height [mm]
    125
  • Mechanical durability (number of cycles)
    1400
  • Rated impulse voltage [kV]
    12
  • storage temperature [°C]
    from -25 to 55
  • Conductor cross-section (wire) [mm²]
    300
  • Number of poles
    3
  • Rated insulation voltage [V]
    1000
  • Level of security
    IP2X
  • Width [mm]
    100
  • Fuse link size
    NH1
  • Electrical endurance (number of cycles)
    200
  • Rated switching voltage [V]
    690/0/724
  • Conventional short-circuit current [kA]
    120
  • Wire cross-section (cord) [mm²]
    70 - 300
  • PKWIU
    27.33.11.0

Other technical data

  • Model
    Fuse switch disconnector
  • Rated permanent current Iu
    250 A
  • Conditioned rated short-circuit current Iq
    120 kA
  • Number of poles
    3
  • Release indication
    None
  • Double interrupting
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Type of electrical connection of main circuit
    Screw connection
  • Construction size fuse insert
    NH1

Bulk packaging

A kind of package Pakiet Paleta
Quantity 1 pcs. 50 pcs.
Weight (kg) 4,700 258,000
Width (m) 0,210 0,800
Length (m) 0,110 1,195
Depth (m) 0,690 1,200
